LIGHT TOUCH MINIATURE PUSHBUTTON

EB2065-BB

Active

NKK Switches

LIGHT TOUCH MINIATURE PUSHBUTTON

Description Specifications Series Pricing CAD Documents

Description

General part information

EB2065 Series

Pushbutton Switch SPDT Standard Panel Mount, Rear

Technical Specifications

Parameters and characteristics for this part

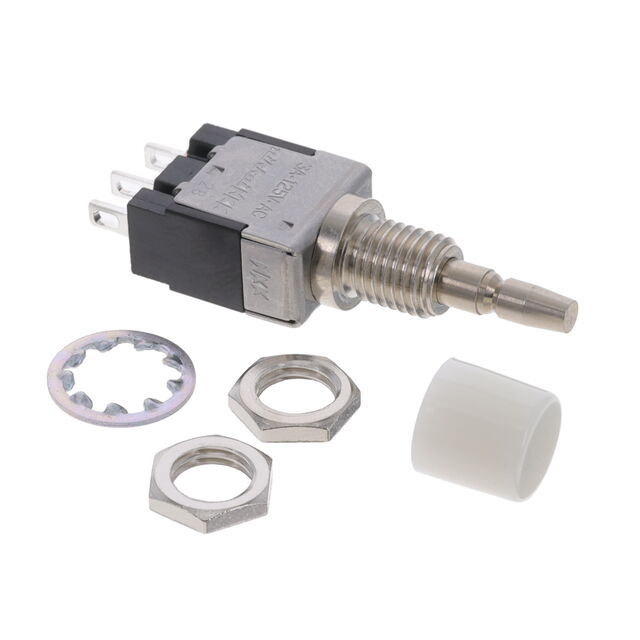

Specification	EB2065-BB

Actuator Marking	No Marking
Actuator Type	Button, Round
Circuit	SPDT
Color - Actuator/Cap	White
Current Rating	3 A
Electrical Life (Cycles)	25000
Features	Epoxy Sealed Terminals
Mechanical Life (Cycles)	100000 Cycles
Mounting Type	Rear, Panel Mount
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-10 °C
Panel Cutout Diameter	0.25 "
Panel Cutout Shape	Circular
Switch Function	On-On
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	125 V

EB2065 Series

Part	Mechanical Life (Cycles)	Electrical Life (Cycles)	Panel Cutout Length	Panel Cutout Shape	Panel Cutout Width	Illumination Voltage (Nominal)	Illumination Voltage (Nominal)	Circuit	Color	Illumination Type	Current Rating	Switch Function	Features	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Actuator Marking	Voltage Rating - AC	Color - Actuator/Cap	Actuator Type	Termination Style	Type	Panel Cutout Diameter
NKK Switches EB2065-A-J34ACF	100000 Cycles	25000	18.4 mm	Rectangular	15 mm	2 VDC 2.1 VDC	2.0 2.1 VDC	SPDT	Green Red	LED	3 A	On-On	Epoxy Sealed Terminals	70 °C	-10 °C	Panel Mount Snap-In	No Marking	125 V	Black	Button Square	Solder Lug	Illuminated Standard
NKK Switches EB2065-BG	100000 Cycles	25000		Circular				SPDT			3 A	On-On	Epoxy Sealed Terminals	70 °C	-10 °C	Panel Mount Rear	No Marking	125 V	Blue	Button Round	Solder Lug	Standard	0.25 "
NKK Switches EB2065P-CH	100000 Cycles	25000		Circular				SPDT			3 A	On-On	Epoxy Sealed Terminals	70 °C	-10 °C	Panel Mount Rear	No Marking	125 V	Gray	Button Round	PC Pin	Standard	0.25 "
NKK Switches EB2065-B-J31A	100000 Cycles	25000	15 mm	Rectangular	12.5 mm			SPDT			3 A	On-On	Epoxy Sealed Terminals	70 °C	-10 °C	Panel Mount Snap-In	No Marking	125 V	White	Button Square	Solder Lug	Standard
NKK Switches EB2065-H-J31H	100000 Cycles	25000	15 mm	Rectangular	12.5 mm			SPDT			3 A	On-On	Epoxy Sealed Terminals	70 °C	-10 °C	Panel Mount Snap-In	No Marking	125 V	Gray	Button Square	Solder Lug	Standard
NKK Switches EB2065P	100000 Cycles	25000		Circular				SPDT			3 A	On-On	Epoxy Sealed Terminals	70 °C	-10 °C	Panel Mount Rear	No Marking	125 V		Plunger for Cap	PC Pin	Standard	0.25 "
NKK Switches EB2065P-CC	100000 Cycles	25000		Circular				SPDT			3 A	On-On	Epoxy Sealed Terminals	70 °C	-10 °C	Panel Mount Rear	No Marking	125 V	Red	Button Round	PC Pin	Standard	0.25 "
NKK Switches EB2065-CF	100000 Cycles	25000		Circular				SPDT			3 A	On-On	Epoxy Sealed Terminals	70 °C	-10 °C	Panel Mount Rear	No Marking	125 V	Green	Button Round	Solder Lug	Standard	0.25 "
NKK Switches EB2065-BB	100000 Cycles	25000		Circular				SPDT			3 A	On-On	Epoxy Sealed Terminals	70 °C	-10 °C	Panel Mount Rear	No Marking	125 V	White	Button Round	Solder Lug	Standard	0.25 "
NKK Switches EB2065-G-J31A	100000 Cycles	25000	15 mm	Rectangular	12.5 mm			SPDT			3 A	On-On	Epoxy Sealed Terminals	70 °C	-10 °C	Panel Mount Snap-In	No Marking	125 V	Blue	Button Square	Solder Lug	Standard
