EB2065P

Active

NKK Switches

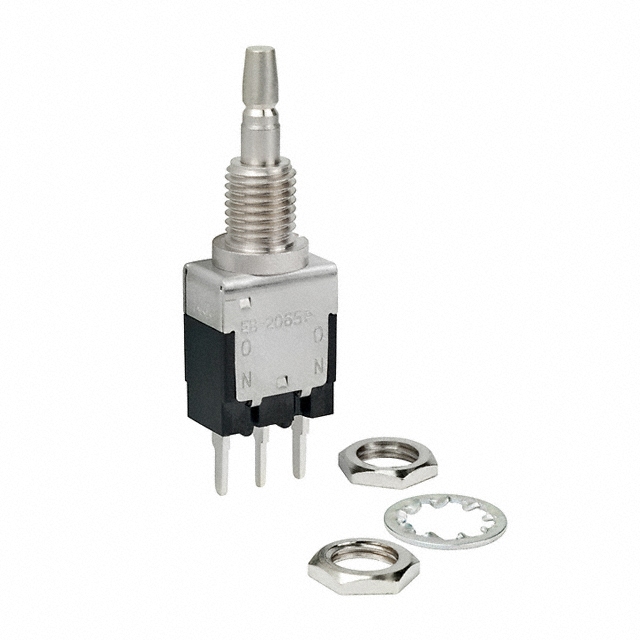

PUSHBUTTON SWITCH, EB SERIES, 6.4 MM, SPDT, ON-ON, PLUNGER FOR CAP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Change Notice EN +2

EB2065P

Active

NKK Switches

PUSHBUTTON SWITCH, EB SERIES, 6.4 MM, SPDT, ON-ON, PLUNGER FOR CAP

Deep-Dive with AI

DocumentsDatasheet Product Change Notice EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EB2065P

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	SPDT
Current Rating (Amps)	3 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [diameter]	0.25 in
Switch Function	On-On
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	125 V

EB2065 Series

Part	Color - Actuator/Cap	Features	Current Rating (Amps)	Mounting Type	Type	Switch Function	Actuator Marking	Electrical Life	Actuator Type	Circuit	Termination Style	Mechanical Life	Illumination Type, Color	Voltage Rating - AC	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Illumination Voltage (Nominal)	Panel Cutout Dimensions [diameter]
NKK Switches EB2065-A-J34ACF	Black	Epoxy Sealed Terminals	3 A	Panel Mount Snap-In	Illuminated Standard	On-On	No Marking	25000 Steps	Button Square	SPDT	Solder Lug	100000 Cycles	Green/Red LED	125 V	15 mm	18.4 mm	-10 °C	158 °F	2 VDC 2.1 VDC
NKK Switches EB2065-BG	Blue	Epoxy Sealed Terminals	3 A	Panel Mount Rear	Standard	On-On	No Marking	25000 Steps	Button Round	SPDT	Solder Lug	100000 Cycles		125 V			-10 °C	158 °F		0.25 in
NKK Switches EB2065P-CH		Epoxy Sealed Terminals	3 A	Panel Mount Rear	Standard	On-On	No Marking	25000 Steps	Button Round	SPDT	PC Pin	100000 Cycles		125 V			-10 °C	158 °F		0.25 in
NKK Switches EB2065-B-J31A	White	Epoxy Sealed Terminals	3 A	Panel Mount Snap-In	Standard	On-On	No Marking	25000 Steps	Button Square	SPDT	Solder Lug	100000 Cycles		125 V	12.5 mm	15 mm	-10 °C	158 °F
NKK Switches EB2065-H-J31H		Epoxy Sealed Terminals	3 A	Panel Mount Snap-In	Standard	On-On	No Marking	25000 Steps	Button Square	SPDT	Solder Lug	100000 Cycles		125 V	12.5 mm	15 mm	-10 °C	158 °F
NKK Switches EB2065P		Epoxy Sealed Terminals	3 A	Panel Mount Rear	Standard	On-On	No Marking	25000 Steps	Plunger for Cap	SPDT	PC Pin	100000 Cycles		125 V			-10 °C	158 °F		0.25 in
NKK Switches EB2065P-CC	Red	Epoxy Sealed Terminals	3 A	Panel Mount Rear	Standard	On-On	No Marking	25000 Steps	Button Round	SPDT	PC Pin	100000 Cycles		125 V			-10 °C	158 °F		0.25 in
NKK Switches EB2065-CF	Green	Epoxy Sealed Terminals	3 A	Panel Mount Rear	Standard	On-On	No Marking	25000 Steps	Button Round	SPDT	Solder Lug	100000 Cycles		125 V			-10 °C	158 °F		0.25 in
NKK Switches EB2065-BB	White	Epoxy Sealed Terminals	3 A	Panel Mount Rear	Standard	On-On	No Marking	25000 Steps	Button Round	SPDT	Solder Lug	100000 Cycles		125 V			-10 °C	158 °F		0.25 in
NKK Switches EB2065-C-J51A	Red	Epoxy Sealed Terminals	3 A	Panel Mount Snap-In	Standard	On-On	No Marking	25000 Steps	Button Square	SPDT	Solder Lug	100000 Cycles		125 V	12.5 mm	15 mm	-10 °C	158 °F
