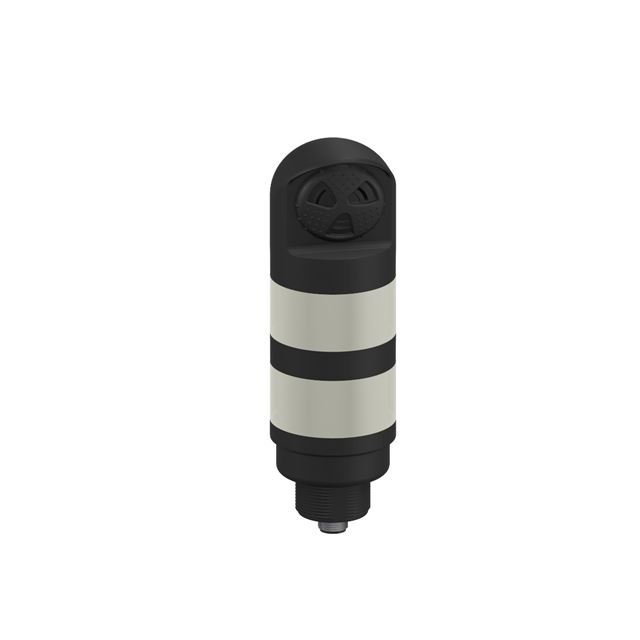

Specification	TL50GRALSQ

Features	Alarm
Function - Audible	Multiple
Function - Lighting	Steady
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Lamp Type	LED
Light Color	Green, Red
Number of Stacks	2
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	-20 °C
Termination Style	Connector
Type	Complete Unit
Voltage - Supply	24 VDC
Voltage - Supply (Maximum)	30 VDC
Voltage - Supply (Minimum)	18 VAC
Voltage - Supply (Option 1)	24 VAC
Voltage - Supply (Range 1 Maximum)	24 VDC
Voltage - Supply (Range 1 Minimum)	24 VAC
Voltage - Supply (Range 2 Maximum)	30 V
Voltage - Supply (Range 2 Minimum)	18 VDC
Voltage - Supply Maximum	30 V
Voltage - Supply Minimum	18 VDC

TL50GR Series

Part	Lamp Type	Number of Stacks	Light Color	Ingress Protection Description	Ingress Protection IP Rating	Operating Temperature (Max)	Operating Temperature (Min)	Termination Style	Function - Audible	Type	Voltage - Supply (Range 2 Minimum)	Voltage - Supply (Minimum)	Voltage - Supply (Option 1)	Voltage - Supply (Maximum)	Voltage - Supply Maximum	Voltage - Supply Minimum	Voltage - Supply	Voltage - Supply (Range 1 Maximum)	Voltage - Supply (Range 2 Maximum)	Voltage - Supply (Range 1 Minimum)	Features	Function - Lighting
BANNER ENGINEERING TL50GRALSQ	LED	2	Green Red	Dust Tight Waterproof	IP67	50 °C	-20 °C	Connector	Multiple	Complete Unit	18 VDC	18 VAC	24 VAC	30 VDC	30 V	18 VDC	24 VDC	24 VDC	30 V	24 VAC	Alarm	Steady
BANNER ENGINEERING TL50GRBAQ	LED	3	Blue Green Red	Dust Protected	IP50	50 °C	-20 °C	Connector	Multiple	Complete Unit		18 VAC		30 VDC							Alarm	Steady
BANNER ENGINEERING TL50GRYA	LED	3	Green Red Yellow	Dust Protected	IP50	50 °C	-20 °C	Wire Leads	Continuous	Complete Unit		18 VAC		24 VAC	24 VDC	18 VDC	30 VDC	24 VDC		18 VAC	Alarm	Steady
BANNER ENGINEERING TL50GRA	LED	2	Green Red	Dust Protected	IP50	50 °C	-20 °C	Wire Leads	Continuous	Complete Unit		18 VAC		24 VAC	24 VDC	18 VDC	30 VDC	24 VDC		18 VAC	Alarm	Steady
BANNER ENGINEERING TL50GRYBAQ	LED	4	Blue Green Red Yellow	Dust Protected	IP50	50 °C	-20 °C	Connector	Continuous	Complete Unit		18 VAC		24 VAC	24 VDC	18 VDC	30 VDC	24 VDC		18 VAC	Alarm	Steady
BANNER ENGINEERING TL50GRY	LED	3	Green Red Yellow	Dust Tight Waterproof	IP67	50 °C	-40 °C	Wire Leads		Complete Unit		18 VAC		24 VAC	24 VDC	18 VDC	30 VDC	24 VDC		18 VAC		Steady
BANNER ENGINEERING TL50GRACQ	LED	2	Green Red	Dust Protected	IP50	50 °C	-20 °C	Connector	Multiple	Complete Unit		18 VAC		30 VDC							Alarm	Steady
BANNER ENGINEERING TL50GRQ	LED	2	Green Red	Dust Tight Waterproof	IP67	50 °C	-40 °C	Wire Leads		Complete Unit	18 VDC	18 VAC	24 VAC	30 VDC	30 V	18 VDC	24 VDC	24 VDC	30 V	24 VAC		Steady
BANNER ENGINEERING TL50GRYB	LED	4	Blue Green Red Yellow	Dust Tight Waterproof	IP67	50 °C	-40 °C	Wire Leads		Complete Unit		18 VAC		24 VAC	24 VDC	18 VDC	30 VDC	24 VDC		18 VAC		Steady
BANNER ENGINEERING TL50GRKQ	LED	2	Green Red	Dust Tight Waterproof	IP67	50 °C	-40 °C	Connector		Complete Unit		12 VDC		30 VDC								Steady
