TL50GRACQ

Active

BANNER ENGINEERING

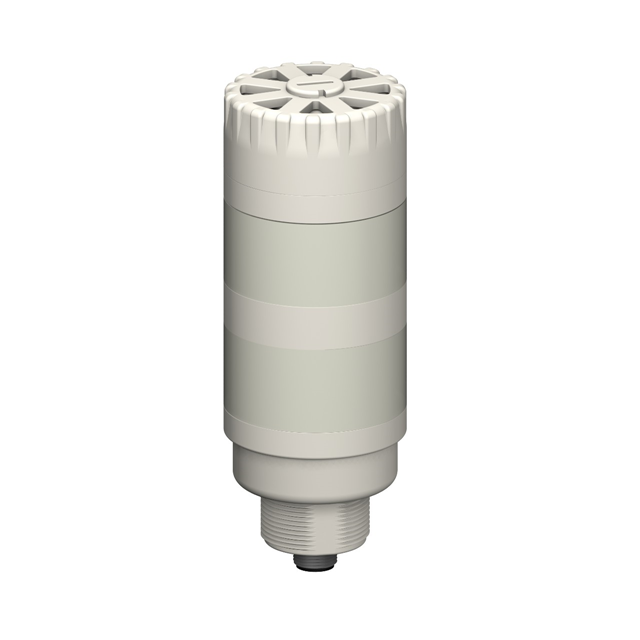

TL50 TOWER LIGHT, GRAY HOUSING: 2-COLOR AUDIBLE INDICATOR

Search across all available documentation for this part.

Active

BANNER ENGINEERING

TL50 TOWER LIGHT, GRAY HOUSING: 2-COLOR AUDIBLE INDICATOR

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Supply [Max]	Voltage - Supply	Voltage - Supply [Min]	Termination Style	Function - Lighting	Light Color	Number of Stacks	Function - Audible	Type	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Features
BANNER ENGINEERING TL50GRALSQ	30 VDC	24 VAC	18 V	Connector	Steady	Green Red	2	Multiple	Complete Unit	IP67 - Dust Tight Waterproof	50 °C	-20 C	Alarm
BANNER ENGINEERING TL50GRBAQ	30 VDC		18	Connector	Steady	Blue Green Red	3	Multiple	Complete Unit	IP50	50 °C	-20 C	Alarm
BANNER ENGINEERING TL50GRYALSQ	24 VAC	30 VDC	18 VAC	Connector	Steady	Green Red Yellow	3	Continuous	Complete Unit	IP67 - Dust Tight Waterproof	50 °C	-20 C	Alarm
BANNER ENGINEERING TL50GRYA	24 VAC	30 VDC	18 VAC	Wire Leads	Steady	Green Red Yellow	3	Continuous	Complete Unit	IP50	50 °C	-20 C	Alarm
BANNER ENGINEERING TL50GRA	24 VAC	30 VDC	18 VAC	Wire Leads	Steady	Green Red	2	Continuous	Complete Unit	IP50	50 °C	-20 C	Alarm
BANNER ENGINEERING TL50GRYBAQ	24 VAC	30 VDC	18 VAC	Connector	Steady	Blue Green Red Yellow	4	Continuous	Complete Unit	IP50	50 °C	-20 C	Alarm
BANNER ENGINEERING TL50GRY	24 VAC	30 VDC	18 VAC	Wire Leads	Steady	Green Red Yellow	3		Complete Unit	IP67 - Dust Tight Waterproof	50 °C	-40 °C
BANNER ENGINEERING TL50GRACQ	30 VDC		18	Connector	Steady	Green Red	2	Multiple	Complete Unit	IP50	50 °C	-20 C	Alarm
BANNER ENGINEERING TL50GRQ	30 VDC	24 VAC	18 V	Wire Leads	Steady	Green Red	2		Complete Unit	IP67 - Dust Tight Waterproof	50 °C	-40 °C
BANNER ENGINEERING TL50GRYB	24 VAC	30 VDC	18 VAC	Wire Leads	Steady	Blue Green Red Yellow	4		Complete Unit	IP67 - Dust Tight Waterproof	50 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 162.00
Newark	Each	1	$ 167.00

General part information

Stack Light Complete Unit Green, Red LED Alarm Connector
