1424536

Active

Phoenix Contact

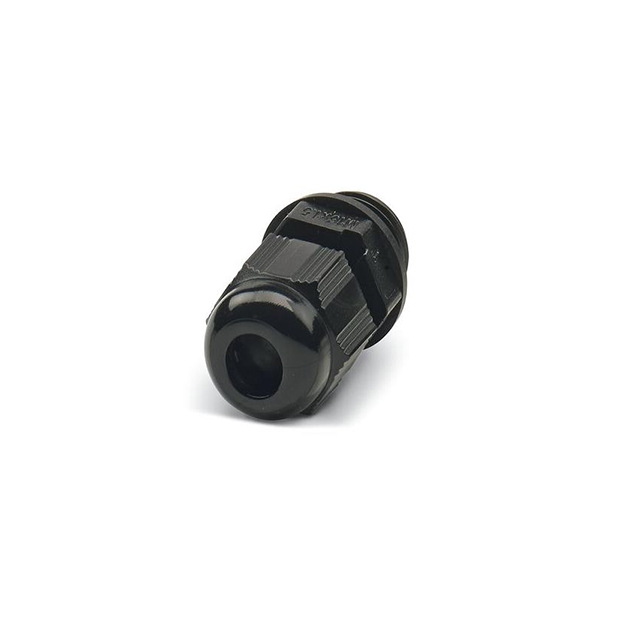

CABLE GLAND 4-7MM M16 POLYAMIDE

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 4-7MM M16 POLYAMIDE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1424536	G-INVEN Series

Color	Black	Gray, Silver, Black
Includes	Seal, Gasket	Seal, Gasket
Ingress Protection	IP66/IP67	IP66/IP67
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon, Brass, Nickel Plated
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-20 C	-20 C
Outside Cable Diameter (Max)	-	0.433 in
Outside Cable Diameter (Max)	-	11 mm
Outside Cable Diameter (Max) [Max] [diameter]	7 mm	7 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.276 in	0.276 in
Outside Cable Diameter (Min)	-	6 mm
Outside Cable Diameter (Min)	-	0.236 in
Outside Cable Diameter (Min) [Min]	0.157 in	0.157 in
Outside Cable Diameter (Min) [Min]	4 mm	4 mm
Thread Length	10 mm	6 - 10 mm
Thread Length	0.394 in	0.236 - 0.394 in
Thread Size	M16x1.5	M20x1.5, M12x1.5, M16x1.5
Type	Cable Gland	Cable Gland

CABLE GLAND 6-11MM M20 POLYAMIDE

Part	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Length	Thread Length	Color	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Ingress Protection	Includes	Material	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]
Phoenix Contact 1424534	M20x1.5	100 °C	-20 C	Cable Gland	6 mm	0.236 in	10 mm	0.394 in	Gray	0.433 in	11 mm	IP66/IP67	Gasket, Seal	Polyamide (PA), Nylon
Phoenix Contact 1424538	M12x1.5	100 °C	-20 C	Cable Gland			6 mm	0.236 in	Silver			IP66/IP67	Gasket, Seal	Brass, Nickel Plated	7 mm	0.276 in	0.157 in	4 mm
Phoenix Contact 1424535	M12x1.5	100 °C	-20 C	Cable Gland			8 mm	0.315 in	Black			IP66/IP67	Gasket, Seal	Polyamide (PA), Nylon	7 mm	0.276 in	0.157 in	4 mm
Phoenix Contact 1424536	M16x1.5	100 °C	-20 C	Cable Gland			10 mm	0.394 in	Black			IP66/IP67	Gasket, Seal	Polyamide (PA), Nylon	7 mm	0.276 in	0.157 in	4 mm
Phoenix Contact 1424533	M16x1.5	100 °C	-20 C	Cable Gland			10 mm	0.394 in	Gray			IP66/IP67	Gasket, Seal	Polyamide (PA), Nylon	7 mm	0.276 in	0.157 in	4 mm
Phoenix Contact 1424537	M20x1.5	100 °C	-20 C	Cable Gland	6 mm	0.236 in	10 mm	0.394 in	Black	0.433 in	11 mm	IP66/IP67	Gasket, Seal	Polyamide (PA), Nylon
Phoenix Contact 1424539	M16x1.5	100 °C	-20 C	Cable Gland					Silver			IP66/IP67	Gasket, Seal	Brass, Nickel Plated	7 mm	0.276 in	0.157 in	4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.67

General part information

Cable Gland Polyamide (PA), Nylon M16x1.5 Black
