1424535

Active

Phoenix Contact

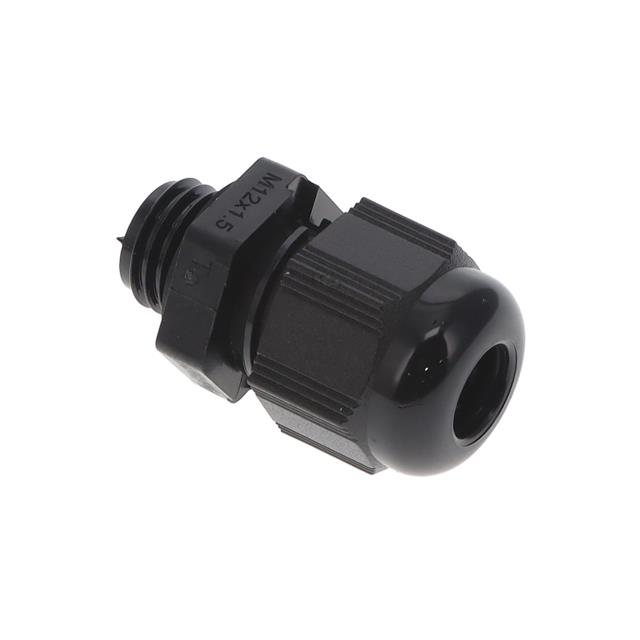

CABLE GLAND 4-7MM M12 POLYAMIDE

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 4-7MM M12 POLYAMIDE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA), Nylon M12x1.5 Black

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1424535	G-INVEN Series

Color	Black	Gray, Silver, Black
Includes	Seal, Gasket	Seal, Gasket
Ingress Protection	IP66/IP67	IP66/IP67
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon, Brass, Nickel Plated
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-20 C	-20 C
Outside Cable Diameter (Max)	-	0.433 in
Outside Cable Diameter (Max)	-	11 mm
Outside Cable Diameter (Max) [Max] [diameter]	7 mm	7 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.276 in	0.276 in
Outside Cable Diameter (Min)	-	6 mm
Outside Cable Diameter (Min)	-	0.236 in
Outside Cable Diameter (Min) [Min]	0.157 in	0.157 in
Outside Cable Diameter (Min) [Min]	4 mm	4 mm
Thread Length	8 mm	6 - 10 mm
Thread Length	0.315 in	0.236 - 0.394 in
Thread Size	M12x1.5	M20x1.5, M12x1.5, M16x1.5
Type	Cable Gland	Cable Gland

CABLE GLAND 6-11MM M20 POLYAMIDE

Part	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Length	Thread Length	Color	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Ingress Protection	Includes	Material	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]
Phoenix Contact 1424534	M20x1.5	100 °C	-20 C	Cable Gland	6 mm	0.236 in	10 mm	0.394 in	Gray	0.433 in	11 mm	IP66/IP67	Gasket, Seal	Polyamide (PA), Nylon
Phoenix Contact 1424538	M12x1.5	100 °C	-20 C	Cable Gland			6 mm	0.236 in	Silver			IP66/IP67	Gasket, Seal	Brass, Nickel Plated	7 mm	0.276 in	0.157 in	4 mm
Phoenix Contact 1424535	M12x1.5	100 °C	-20 C	Cable Gland			8 mm	0.315 in	Black			IP66/IP67	Gasket, Seal	Polyamide (PA), Nylon	7 mm	0.276 in	0.157 in	4 mm
Phoenix Contact 1424536	M16x1.5	100 °C	-20 C	Cable Gland			10 mm	0.394 in	Black			IP66/IP67	Gasket, Seal	Polyamide (PA), Nylon	7 mm	0.276 in	0.157 in	4 mm
Phoenix Contact 1424533	M16x1.5	100 °C	-20 C	Cable Gland			10 mm	0.394 in	Gray			IP66/IP67	Gasket, Seal	Polyamide (PA), Nylon	7 mm	0.276 in	0.157 in	4 mm
Phoenix Contact 1424537	M20x1.5	100 °C	-20 C	Cable Gland	6 mm	0.236 in	10 mm	0.394 in	Black	0.433 in	11 mm	IP66/IP67	Gasket, Seal	Polyamide (PA), Nylon
Phoenix Contact 1424539	M16x1.5	100 °C	-20 C	Cable Gland					Silver			IP66/IP67	Gasket, Seal	Brass, Nickel Plated	7 mm	0.276 in	0.157 in	4 mm
