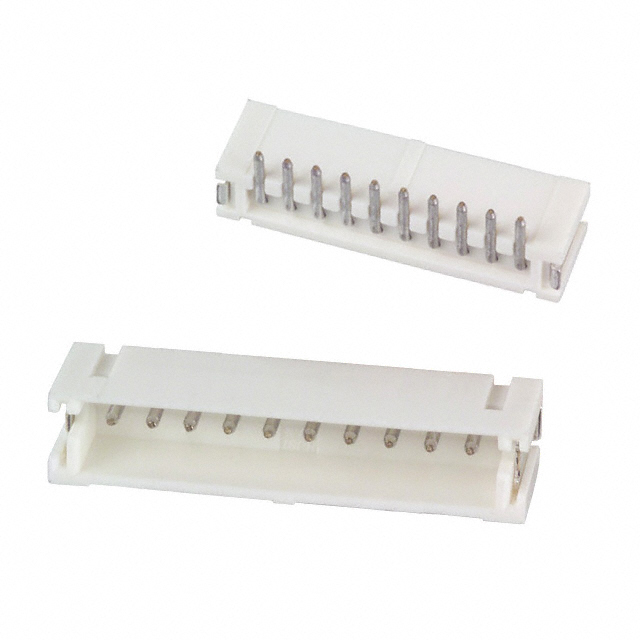

Specification	B10B-ZR-SM4-TF

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating	1 A
Fastening Type	Detent Lock
Features	Solder Retention
Insulation Color	Natural
Insulation Height	0.197 in
Insulation Material	Polyamide (PA6T), Glass Filled, Nylon 6T
Mated Stacking Height	6.4 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Pitch - Mating	0.059 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	50 V

B10B-ZR Series

Part	Insulation Color	Termination	Contact Shape	Material Flammability Rating	Shrouding	Pitch - Mating	Number of Rows	Operating Temperature (Max)	Operating Temperature (Min)	Current Rating	Fastening Type	Contact Material	Voltage Rating	Contact Finish - Post	Contact Finish - Mating	Insulation Height	Contact Type	Number of Positions Loaded	Insulation Material	Connector Type	Mounting Type	Number of Positions	Features	Style	Mated Stacking Height	Contact Length - Mating	Contact Length - Post	Overall Contact Length
JST Sales America Inc. B10B-ZR-SM4-TF	Natural	Solder	Circular	UL94 V-0	Shrouded - 4 Wall	0.059 in	1	85 °C	-25 °C	1 A	Detent Lock	Brass	50 V	Tin	Tin	0.197 in	Male Pin	All	Glass Filled Nylon 6T Polyamide (PA6T)	Header	Surface Mount	10	Solder Retention	Board Cable/Wire	6.4 mm
JST Sales America Inc. B10B-ZR-3.4	Natural	Solder	Circular	UL94 V-0	Shrouded - 4 Wall	0.059 in	1	85 °C	-25 °C	1 A	Detent Lock	Brass	50 V	Tin	Tin	0.177 in	Male Pin	All	Glass Filled Nylon 6/6 Polyamide (PA66)	Header	Through Hole	10		Board Cable/Wire	5.6 mm	0.094 in	0.134 in
JST Sales America Inc. B10B-ZR-SM4-TFT	Natural	Solder	Circular	UL94 V-0	Shrouded - 4 Wall	0.059 in	1	85 °C	-25 °C	1 A	Detent Lock	Brass	50 V	Tin	Tin	0.197 in	Male Pin	All	Glass Filled Nylon 6T Polyamide (PA6T)	Header	Surface Mount	10	Pick and Place Solder Retention	Board Cable/Wire	6.4 mm
JST Sales America Inc. B10B-ZR	Natural	Solder	Circular	UL94 V-0	Shrouded - 4 Wall	0.059 in	1	85 °C	-25 °C	1 A	Detent Lock	Brass	50 V	Tin	Tin	0.177 in	Male Pin	All	Glass Filled Nylon 6/6 Polyamide (PA66)	Header	Through Hole	10		Board Cable/Wire	5.6 mm	0.094 in	0.106 in	0.256 in
