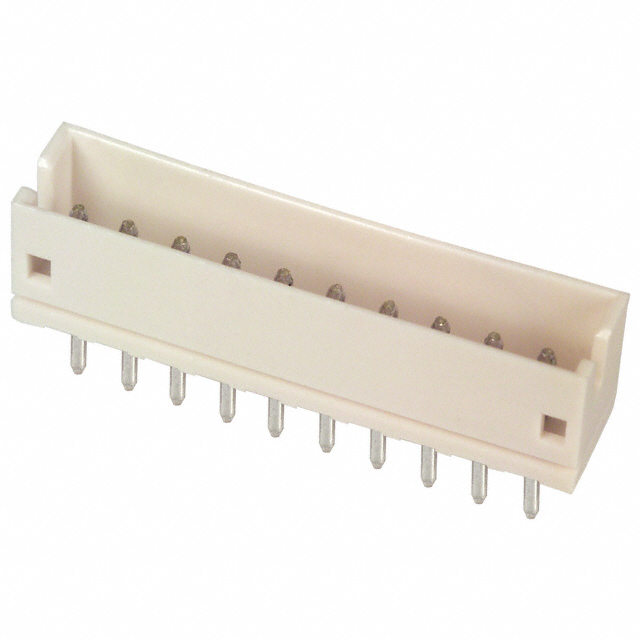

Specification	B10B-ZR

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Mating	0.094 in
Contact Length - Post	0.106 in
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating	1 A
Fastening Type	Detent Lock
Insulation Color	Natural
Insulation Height	0.177 in
Insulation Material	Nylon 6/6, Polyamide (PA66), Glass Filled
Mated Stacking Height	5.6 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Overall Contact Length	0.256 in
Pitch - Mating	0.059 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	50 V

B10B-ZR Series

Part	Insulation Color	Termination	Contact Shape	Material Flammability Rating	Shrouding	Pitch - Mating	Number of Rows	Operating Temperature (Max)	Operating Temperature (Min)	Current Rating	Fastening Type	Contact Material	Voltage Rating	Contact Finish - Post	Contact Finish - Mating	Insulation Height	Contact Type	Number of Positions Loaded	Insulation Material	Connector Type	Mounting Type	Number of Positions	Features	Style	Mated Stacking Height	Contact Length - Mating	Contact Length - Post	Overall Contact Length
JST Sales America Inc. B10B-ZR-SM4-TF	Natural	Solder	Circular	UL94 V-0	Shrouded - 4 Wall	0.059 in	1	85 °C	-25 °C	1 A	Detent Lock	Brass	50 V	Tin	Tin	0.197 in	Male Pin	All	Glass Filled Nylon 6T Polyamide (PA6T)	Header	Surface Mount	10	Solder Retention	Board Cable/Wire	6.4 mm
JST Sales America Inc. B10B-ZR-3.4	Natural	Solder	Circular	UL94 V-0	Shrouded - 4 Wall	0.059 in	1	85 °C	-25 °C	1 A	Detent Lock	Brass	50 V	Tin	Tin	0.177 in	Male Pin	All	Glass Filled Nylon 6/6 Polyamide (PA66)	Header	Through Hole	10		Board Cable/Wire	5.6 mm	0.094 in	0.134 in
JST Sales America Inc. B10B-ZR-SM4-TFT	Natural	Solder	Circular	UL94 V-0	Shrouded - 4 Wall	0.059 in	1	85 °C	-25 °C	1 A	Detent Lock	Brass	50 V	Tin	Tin	0.197 in	Male Pin	All	Glass Filled Nylon 6T Polyamide (PA6T)	Header	Surface Mount	10	Pick and Place Solder Retention	Board Cable/Wire	6.4 mm
JST Sales America Inc. B10B-ZR	Natural	Solder	Circular	UL94 V-0	Shrouded - 4 Wall	0.059 in	1	85 °C	-25 °C	1 A	Detent Lock	Brass	50 V	Tin	Tin	0.177 in	Male Pin	All	Glass Filled Nylon 6/6 Polyamide (PA66)	Header	Through Hole	10		Board Cable/Wire	5.6 mm	0.094 in	0.106 in	0.256 in
