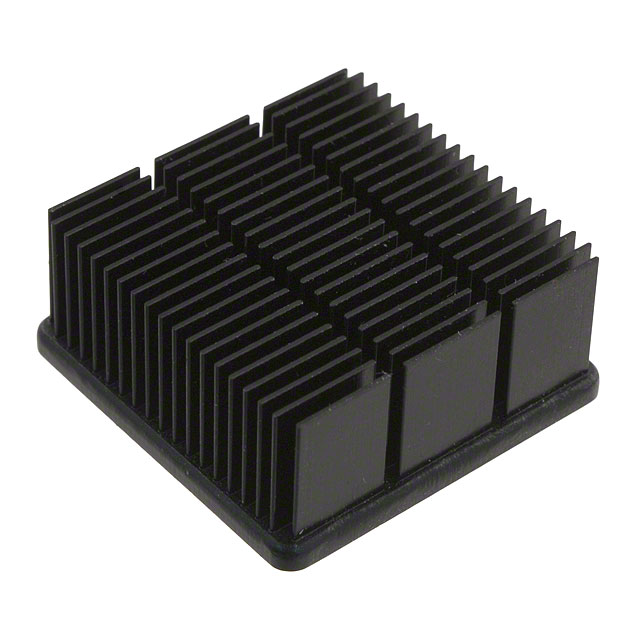

APF30-30-13CB

Active

Tusonix a Subsidiary of CTS Electronic Components

HEATSINK LOW-PROFILE FORGED

Search across all available documentation for this part.

Active

Tusonix a Subsidiary of CTS Electronic Components

HEATSINK LOW-PROFILE FORGED

Technical Specifications

Parameters and characteristics for this part

Specification	APF30-30-13CB

Attachment Method	Thermal Tape, Adhesive (Not Included)
Fin Height [z]	12.7 mm
Fin Height [z]	0.5 in
Length [x]	30 mm
Length [x]	1.181 in
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	ASIC, BGA, LGA, CPU
Shape	Square, Fins
Thermal Resistance @ Forced Air Flow	200 LFM, 2.5 °C/W
Type	Top Mount
Width	30 mm
Width	1.181 in

Part	Length [x]	Length [x]	Attachment Method	Type	Thermal Resistance @ Forced Air Flow	Fin Height [z]	Fin Height [z]	Width	Width	Material	Material Finish	Package Cooled	Shape	Shelf Life	Fin Height [z]
Tusonix a Subsidiary of CTS Electronic Components APF30-30-06CB	30 mm	1.181 in	Thermal Tape Adhesive (Not Included)	Top Mount	4.4 °C/W 200 LFM	6.35 mm	0.25 in	30 mm	1.181 in	Aluminum	Black Anodized	ASIC BGA CPU LGA	Fins Square
Tusonix a Subsidiary of CTS Electronic Components APF30-30-06CB/A01	30 mm	1.181 in	Thermal Tape Adhesive (Included)	Top Mount	4.4 °C/W 200 LFM	6.35 mm	0.25 in	30 mm	1.181 in	Aluminum	Black Anodized	ASIC BGA CPU LGA	Fins Square	24 Months
Tusonix a Subsidiary of CTS Electronic Components APF303010CBA01	30 mm	1.181 in	Thermal Tape Adhesive (Included)	Top Mount	3.3 °C/W	0.37 "		30 mm	1.181 in	Aluminum	Black Anodized	ASIC BGA CPU LGA	Fins Square	24 Months	9.4 mm
Tusonix a Subsidiary of CTS Electronic Components APF30-30-13CB	30 mm	1.181 in	Thermal Tape Adhesive (Not Included)	Top Mount	2.5 °C/W 200 LFM	12.7 mm	0.5 in	30 mm	1.181 in	Aluminum	Black Anodized	ASIC BGA CPU LGA	Fins Square
Tusonix a Subsidiary of CTS Electronic Components APF30-30-10CB	30 mm	1.181 in	Thermal Tape Adhesive (Not Included)	Top Mount	3.3 °C/W	0.37 "		30 mm	1.181 in	Aluminum	Black Anodized	ASIC BGA CPU LGA	Fins Square		9.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount
