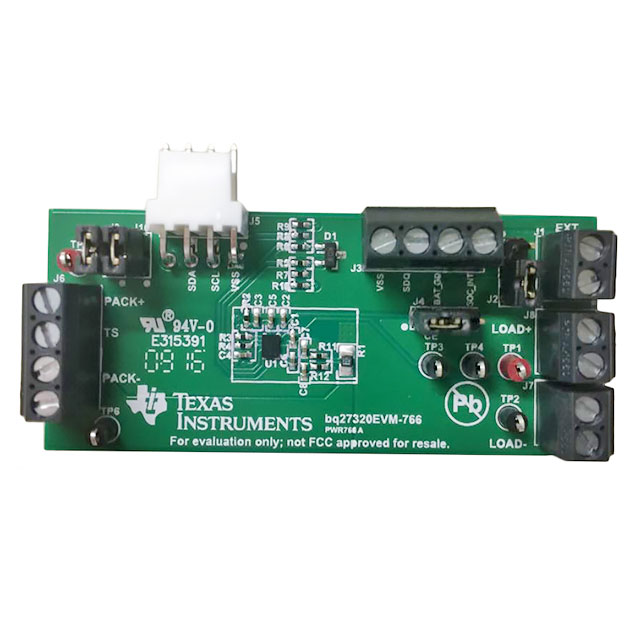

BQ27320EVM-766
ActiveSYSTEM-SIDE FUEL GAUGE WITH INTE
Deep-Dive with AI
Search across all available documentation for this part.
BQ27320EVM-766
ActiveSYSTEM-SIDE FUEL GAUGE WITH INTE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ27320EVM-766 | BQ27320 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion |
| Contents | Board(s) | Board(s) |
| Function | Fuel Gauge | Battery Monitor, Fuel Gauge |
| Interface | - | I2C |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 15-UFBGA, DSBGA |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 15-DSBGA |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ27320 | BQ27320 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 118.80 | |
BQ27320 Series
Single cell pack/System-side CEDV battery fuel (gas) gauge
| Part | Number of Cells | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Interface | Function | Supplier Device Package | Battery Chemistry | Utilized IC / Part | Type | Contents | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ27320YZFT | 1 | Surface Mount | 85 °C | -40 °C | 15-UFBGA, DSBGA | I2C | Battery Monitor | 15-DSBGA | Lithium Ion | ||||
Texas Instruments BQ27320EVM-766 | Fuel Gauge | BQ27320 | Power Management | Board(s) | Board(s) | ||||||||
Texas Instruments BQ27320YZFR | 1 | Surface Mount | 85 °C | -40 °C | 15-UFBGA, DSBGA | I2C | Battery Monitor | 15-DSBGA | Lithium Ion |
Description
General part information
BQ27320 Series
The Texas Instruments single-cell bq27320 battery fuel gauge requires very minimal configuration and system microcontroller firmware development, leading to quick system bring-up. The bq27320 uses the Compensated End-of-Discharge Voltage (CEDV) gas gauging algorithm for fuel gauging, and provides information such as remaining battery capacity (mAh), state-of-charge (%), runtime-to-empty (min), battery voltage (mV), temperature (°C) and state-of-health (%).
TI customers can tune chemistry parameters using TI’s web-based tool, GAUGEPARCAL.
Configurable interrupts help save system power and free up the host from continuous polling. Accurate temperature sensing is supported via an external thermistor.
