22MP05005W
ActiveEssentra Access Solutions

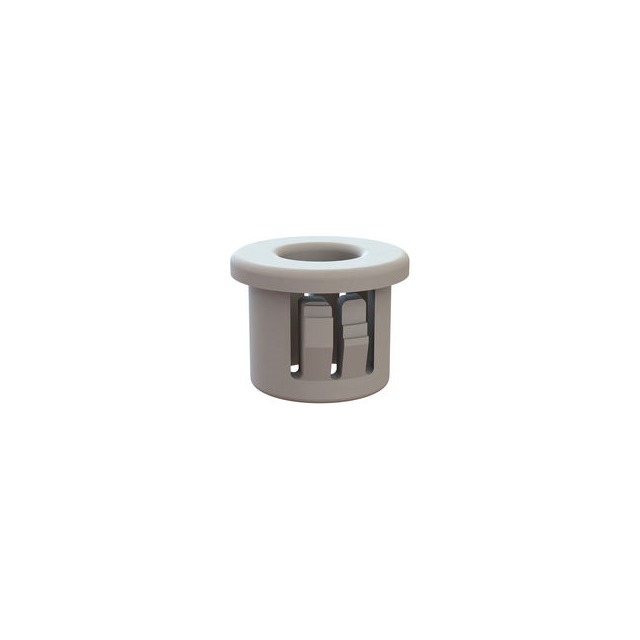

BUSHING 0.312" NYLON WHITE
Deep-Dive with AI
Search across all available documentation for this part.
22MP05005W
ActiveEssentra Access Solutions
BUSHING 0.312" NYLON WHITE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 22MP05005W |
|---|---|
| Bushing, Grommet Type | Bushing |
| Color | White |
| Diameter - Inside [diameter] | 7.92 mm |
| Diameter - Inside [diameter] | 0.312 " |
| Features | Snap-Mount |
| For Use With/Related Products | Wires, Cable |
| Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-2 |
| Panel Cutout Dimensions [diameter] | 12.7 mm |
| Panel Cutout Dimensions [diameter] | 12.7 mm |
| Panel Thickness | 0.125 in |
| Panel Thickness | 3.18 mm |
22MP0 Series
| Part | Bushing, Grommet Type | Material Flammability Rating | Material | Color | For Use With/Related Products | Diameter - Inside [diameter] | Diameter - Inside [diameter] | Panel Cutout Dimensions [diameter] | Panel Cutout Dimensions [diameter] | Panel Thickness | Panel Thickness | Panel Cutout Dimensions | Panel Cutout Dimensions | Panel Thickness [custom] | Panel Thickness [custom] | Features | Diameter - Inside |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Essentra Access Solutions | Bushing | UL94 V-2 | Polyamide (PA66) Nylon 6/6 | Black | Cable Wires | 7.92 mm | 0.312 " | 0.562 in | 14.27 mm | 0.125 in | 3.18 mm | ||||||
Essentra Access Solutions | Bushing | UL94 V-2 | Polyamide (PA66) Nylon 6/6 | Black | Cable Wires | 14.27 mm | 0.562 in | 0.125 in | 3.18 mm | 0.875 in | 22.22 mm | ||||||
Essentra Access Solutions | Bushing | UL94 V-2 | Polyamide (PA66) Nylon 6/6 | Black | Cable Wires | 7.92 mm | 0.312 " | 0.437 in | 11.1 mm | 0.125 in | 3.18 mm | ||||||
Essentra Access Solutions | Bushing | UL94 V-2 | Polyamide (PA66) Nylon 6/6 | Black | Cable Wires | 9.52 mm | 0.375 in | 12.7 mm | 12.7 mm | 0.125 in | 3.18 mm | ||||||
Essentra Access Solutions | Bushing | UL94 V-2 | Polyamide (PA66) Nylon 6/6 | White | Cable Wires | 12.7 mm | 0.5 in | 0.625 in | 15.88 mm | 0.062 in | 1.57 mm | Snap-Mount | |||||
Essentra Access Solutions | Bushing | UL94 V-2 | Polyamide (PA66) Nylon 6/6 | Black | Cable Wires | 0.25 in | 12.7 mm | 12.7 mm | 0.125 in | 3.18 mm | 6.35 mm | ||||||
Essentra Access Solutions | Bushing | UL94 V-2 | Polyamide (PA66) Nylon 6/6 | White | Cable Wires | 19.05 mm | 0.75 in | 0.875 in | 22.22 mm | 0.062 in | 1.57 mm | Snap-Mount | |||||
Essentra Access Solutions | Bushing | UL94 V-2 | Polyamide (PA66) Nylon 6/6 | Black | Cable Wires | 3.18 mm | 0.125 in | 0.25 in | 6.35 mm | 0.062 in | 1.57 mm | ||||||
Essentra Access Solutions | Bushing | UL94 V-2 | Polyamide (PA66) Nylon 6/6 | Black | Cable Wires | 12.7 mm | 0.5 in | 0.687 in | 17.45 mm | 0.125 in | 3.18 mm | ||||||
Essentra Access Solutions | Bushing | UL94 V-2 | Polyamide (PA66) Nylon 6/6 | White | Cable Wires | 7.92 mm | 0.312 " | 12.7 mm | 12.7 mm | 0.125 in | 3.18 mm | Snap-Mount |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.12 | |
| 10 | $ 0.09 | |||
| 25 | $ 0.08 | |||
| 50 | $ 0.07 | |||
| 100 | $ 0.07 | |||
| 250 | $ 0.06 | |||
| 500 | $ 0.06 | |||
| 1000 | $ 0.05 | |||
| 3000 | $ 0.05 | |||
Description
General part information
22MP0 Series
Circular - 0.500" (12.70mm) Bushing 0.312" (7.92mm) White
