22MP01050W

Active

Essentra Access Solutions

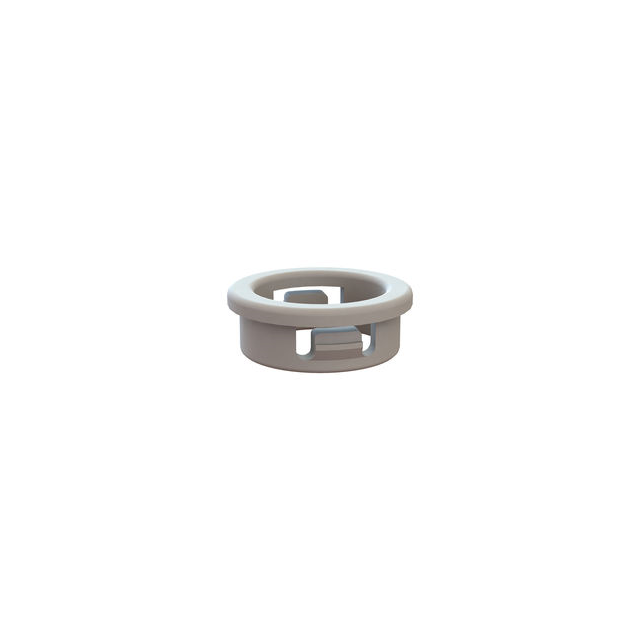

BUSHING 0.500" NYLON WHITE

Deep-Dive with AI

Search across all available documentation for this part.

22MP01050W

Active

Essentra Access Solutions

BUSHING 0.500" NYLON WHITE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	22MP01050W

Bushing, Grommet Type	Bushing
Color	White
Diameter - Inside [diameter]	0.5 in
Diameter - Inside [diameter]	12.7 mm
Features	Snap-Mount
For Use With/Related Products	Wires, Cable
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Panel Cutout Dimensions [diameter]	15.88 mm
Panel Cutout Dimensions [diameter]	0.625 in
Panel Thickness [custom]	0.062 in
Panel Thickness [custom]	1.57 mm

22MP0 Series

Part	Bushing, Grommet Type	Material Flammability Rating	Material	Color	For Use With/Related Products	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Panel Thickness	Panel Thickness	Panel Cutout Dimensions	Panel Cutout Dimensions	Panel Thickness [custom]	Panel Thickness [custom]	Features	Diameter - Inside
Essentra Access Solutions 22MP05625	Bushing	UL94 V-2	Polyamide (PA66) Nylon 6/6	Black	Cable Wires	7.92 mm	0.312 "	0.562 in	14.27 mm	0.125 in	3.18 mm
Essentra Access Solutions 22MP08709	Bushing	UL94 V-2	Polyamide (PA66) Nylon 6/6	Black	Cable Wires	14.27 mm	0.562 in			0.125 in	3.18 mm	0.875 in	22.22 mm
Essentra Access Solutions 22MP04375	Bushing	UL94 V-2	Polyamide (PA66) Nylon 6/6	Black	Cable Wires	7.92 mm	0.312 "	0.437 in	11.1 mm	0.125 in	3.18 mm
Essentra Access Solutions 22MP05006	Bushing	UL94 V-2	Polyamide (PA66) Nylon 6/6	Black	Cable Wires	9.52 mm	0.375 in	12.7 mm	12.7 mm	0.125 in	3.18 mm
Essentra Access Solutions 22MP01050W	Bushing	UL94 V-2	Polyamide (PA66) Nylon 6/6	White	Cable Wires	12.7 mm	0.5 in	0.625 in	15.88 mm					0.062 in	1.57 mm	Snap-Mount
Essentra Access Solutions 22MP05004	Bushing	UL94 V-2	Polyamide (PA66) Nylon 6/6	Black	Cable Wires		0.25 in	12.7 mm	12.7 mm	0.125 in	3.18 mm						6.35 mm
Essentra Access Solutions 22MP01080W	Bushing	UL94 V-2	Polyamide (PA66) Nylon 6/6	White	Cable Wires	19.05 mm	0.75 in					0.875 in	22.22 mm	0.062 in	1.57 mm	Snap-Mount
Essentra Access Solutions 22MP02502	Bushing	UL94 V-2	Polyamide (PA66) Nylon 6/6	Black	Cable Wires	3.18 mm	0.125 in	0.25 in	6.35 mm					0.062 in	1.57 mm
Essentra Access Solutions 22MP06878	Bushing	UL94 V-2	Polyamide (PA66) Nylon 6/6	Black	Cable Wires	12.7 mm	0.5 in	0.687 in	17.45 mm	0.125 in	3.18 mm
Essentra Access Solutions 22MP05005W	Bushing	UL94 V-2	Polyamide (PA66) Nylon 6/6	White	Cable Wires	7.92 mm	0.312 "	12.7 mm	12.7 mm	0.125 in	3.18 mm					Snap-Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.10
		10	$ 0.07
		25	$ 0.05
		50	$ 0.05
		100	$ 0.05
		250	$ 0.04
		500	$ 0.04
		1000	$ 0.04
		3000	$ 0.03

Description

General part information

22MP0 Series

Circular - 0.625" (15.88mm) Bushing 0.500" (12.70mm) White

Documents

Technical documentation and resources

No documents available
