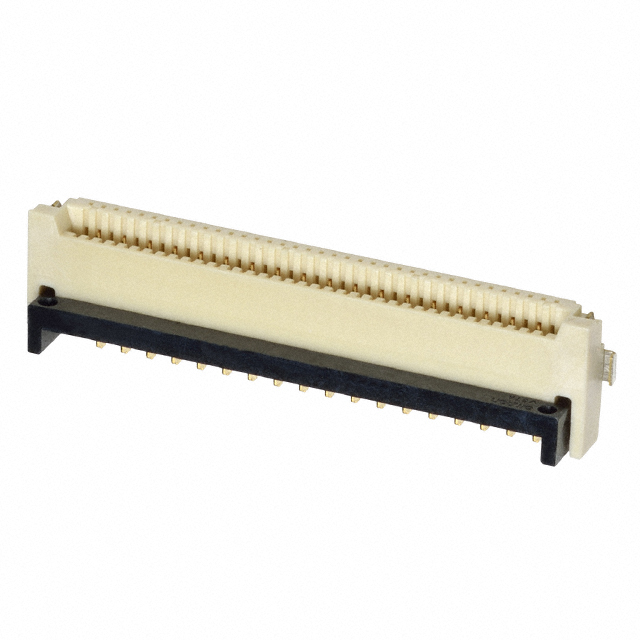

XF3M(1)-1815-1B
ActiveOmron Electronics Inc-EMC Div
CONN FFC FPC 18POS 1MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
XF3M(1)-1815-1B
ActiveOmron Electronics Inc-EMC Div
CONN FFC FPC 18POS 1MM R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XF3M(1)-1815-1B |
|---|---|
| Actuator Color | Black |
| Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Cable End Type | Tapered |
| Connector/Contact Type | Contacts, Top and Bottom |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 0.5 A |
| Features | Solder Retention |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FPC, FFC |
| Height Above Board | 0.079 in |
| Height Above Board | 2 mm |
| Housing Color | Natural |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Locking Feature | Backlock, Rotary Lock |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 18 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
| Termination | Solder |
| Voltage Rating | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.30 | |
| 10 | $ 1.13 | |||
| 25 | $ 1.08 | |||
| 50 | $ 1.06 | |||
| 100 | $ 1.01 | |||
| 250 | $ 0.91 | |||
| 500 | $ 0.85 | |||
| Digi-Reel® | 1 | $ 1.30 | ||
| 10 | $ 1.13 | |||
| 25 | $ 1.08 | |||
| 50 | $ 1.06 | |||
| 100 | $ 1.01 | |||
| 250 | $ 0.91 | |||
| 500 | $ 0.85 | |||
| Tape & Reel (TR) | 1500 | $ 0.85 | ||
Description
General part information
XF3M Series
FFC & FPC Connectors FPC Connector
