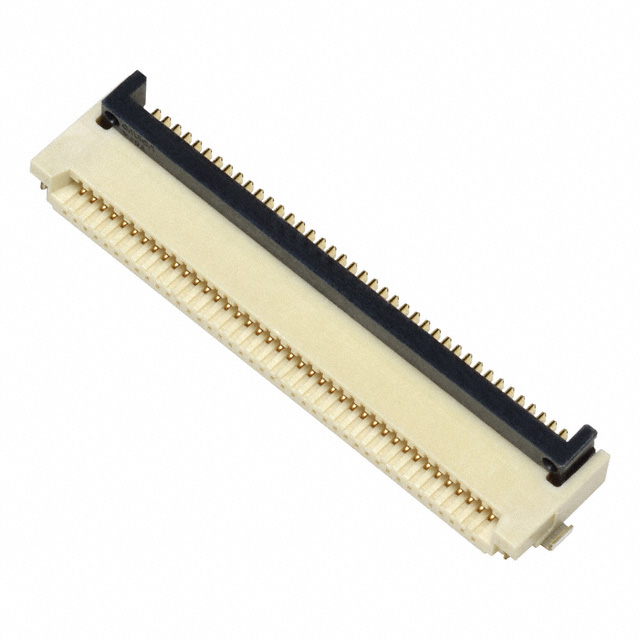

XF3M-4015-1B
ActiveOmron Electronics Inc-EMC Div
CONN FFC FPC 40POS 0.5MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
XF3M-4015-1B
ActiveOmron Electronics Inc-EMC Div
CONN FFC FPC 40POS 0.5MM R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XF3M-4015-1B |
|---|---|
| Actuator Color | Black |
| Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Cable End Type | Tapered |
| Connector/Contact Type | Contacts, Top and Bottom |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 0.5 A |
| Features | Solder Retention |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FPC, FFC |
| Height Above Board | 0.079 in |
| Height Above Board | 2 mm |
| Housing Color | Natural |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Locking Feature | Backlock, Rotary Lock |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 40 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Termination | Solder |
| Voltage Rating | 50 V |
XF3M Series
FFC & FPC Connectors FPC Connector
| Part | FFC, FCB Thickness | Actuator Material | Features | Locking Feature | Number of Positions | Housing Color | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Connector/Contact Type | Housing Material | Actuator Color | Termination | Mating Cycles | Current Rating (Amps) | Contact Finish Thickness | Voltage Rating | Pitch [x] | Pitch [x] | Cable End Type | Flat Flex Type | Contact Material | Material Flammability Rating | Height Above Board | Height Above Board | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | 0.3 mm | Liquid Crystal Polymer (LCP) Halogen Free | Solder Retention | Backlock Rotary Lock | 20 | Natural | Surface Mount Right Angle | -30 ░C | 85 °C | Contacts Top and Bottom | Liquid Crystal Polymer (LCP) Halogen Free | Black | Solder | 20 | 0.5 A | Flash | 50 V | 0.5 mm | 0.02 in | Tapered | FFC FPC | Copper Alloy | UL94 V-0 | 0.079 in | 2 mm | Gold |
Omron Electronics Inc-EMC Div | 0.3 mm | Liquid Crystal Polymer (LCP) Halogen Free | Solder Retention | Backlock Rotary Lock | 18 | Natural | Surface Mount Right Angle | -30 ░C | 85 °C | Contacts Top and Bottom | Liquid Crystal Polymer (LCP) Halogen Free | Black | Solder | 20 | 0.5 A | Flash | 50 V | 1 mm | 0.039 in | Tapered | FFC FPC | Copper Alloy | UL94 V-0 | 0.079 in | 2 mm | Gold |
Omron Electronics Inc-EMC Div | 0.3 mm | Liquid Crystal Polymer (LCP) Halogen Free | Solder Retention | Backlock Rotary Lock | 24 | Natural | Surface Mount Right Angle | -30 ░C | 85 °C | Contacts Top and Bottom | Liquid Crystal Polymer (LCP) Halogen Free | Black | Solder | 20 | 0.5 A | Flash | 50 V | 0.5 mm | 0.02 in | Tapered | FFC FPC | Copper Alloy | UL94 V-0 | 0.079 in | 2 mm | Gold |
Omron Electronics Inc-EMC Div | 0.3 mm | Liquid Crystal Polymer (LCP) Halogen Free | Solder Retention | Backlock Rotary Lock | 80 | Natural | Surface Mount Right Angle | -30 ░C | 85 °C | Contacts Top and Bottom | Liquid Crystal Polymer (LCP) Halogen Free | Black | Solder | 20 | 0.5 A | Flash | 50 V | 0.5 mm | 0.02 in | Tapered | FFC FPC | Copper Alloy | UL94 V-0 | 0.079 in | 2 mm | Gold |
Omron Electronics Inc-EMC Div | 0.3 mm | Liquid Crystal Polymer (LCP) Halogen Free | Solder Retention | Backlock Rotary Lock | 6 | Natural | Surface Mount Right Angle | -30 ░C | 85 °C | Contacts Top and Bottom | Liquid Crystal Polymer (LCP) Halogen Free | Black | Solder | 20 | 0.5 A | Flash | 50 V | 0.5 mm | 0.02 in | Tapered | FFC FPC | Copper Alloy | UL94 V-0 | 0.079 in | 2 mm | Gold |
Omron Electronics Inc-EMC Div | 0.3 mm | Liquid Crystal Polymer (LCP) Halogen Free | Solder Retention | Backlock Rotary Lock | 11 | Natural | Surface Mount Right Angle | -30 ░C | 85 °C | Contacts Top and Bottom | Liquid Crystal Polymer (LCP) Halogen Free | Black | Solder | 20 | 0.5 A | Flash | 50 V | 0.5 mm | 0.02 in | Tapered | FFC FPC | Copper Alloy | UL94 V-0 | 0.079 in | 2 mm | Gold |
Omron Electronics Inc-EMC Div | 0.3 mm | Liquid Crystal Polymer (LCP) Halogen Free | Solder Retention | Backlock Rotary Lock | 12 | Natural | Surface Mount Right Angle | -30 ░C | 85 °C | Contacts Top and Bottom | Liquid Crystal Polymer (LCP) Halogen Free | Black | Solder | 20 | 0.5 A | Flash | 50 V | 0.5 mm | 0.02 in | Tapered | FFC FPC | Copper Alloy | UL94 V-0 | 0.079 in | 2 mm | Gold |
Omron Electronics Inc-EMC Div | 0.3 mm | Liquid Crystal Polymer (LCP) Halogen Free | Solder Retention | Backlock Rotary Lock | 9 | Natural | Surface Mount Right Angle | -30 ░C | 85 °C | Contacts Top and Bottom | Liquid Crystal Polymer (LCP) Halogen Free | Black | Solder | 20 | 0.5 A | Flash | 50 V | 0.5 mm | 0.02 in | Tapered | FFC FPC | Copper Alloy | UL94 V-0 | 0.079 in | 2 mm | Tin |
Omron Electronics Inc-EMC Div | 0.3 mm | Liquid Crystal Polymer (LCP) Halogen Free | Solder Retention | Backlock Rotary Lock | 40 | Natural | Surface Mount Right Angle | -30 ░C | 85 °C | Contacts Top and Bottom | Liquid Crystal Polymer (LCP) Halogen Free | Black | Solder | 20 | 0.5 A | Flash | 50 V | 0.5 mm | 0.02 in | Tapered | FFC FPC | Copper Alloy | UL94 V-0 | 0.079 in | 2 mm | Gold |
Omron Electronics Inc-EMC Div | 0.3 mm | Liquid Crystal Polymer (LCP) Halogen Free | Solder Retention | Backlock Rotary Lock | 18 | Natural | Surface Mount Right Angle | -30 ░C | 85 °C | Contacts Top and Bottom | Liquid Crystal Polymer (LCP) Halogen Free | Black | Solder | 20 | 0.5 A | Flash | 50 V | 1 mm | 0.039 in | Tapered | FFC FPC | Copper Alloy | UL94 V-0 | 0.079 in | 2 mm | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.74 | |
| 10 | $ 2.49 | |||
| 25 | $ 2.36 | |||
| 50 | $ 2.30 | |||
| 100 | $ 2.19 | |||
| 250 | $ 1.92 | |||
| 500 | $ 1.87 | |||
| Digi-Reel® | 1 | $ 2.74 | ||
| 10 | $ 2.49 | |||
| 25 | $ 2.36 | |||
| 50 | $ 2.30 | |||
| 100 | $ 2.19 | |||
| 250 | $ 1.92 | |||
| 500 | $ 1.87 | |||
| Tape & Reel (TR) | 1500 | $ 1.54 | ||
| 3000 | $ 1.48 | |||
Description
General part information
XF3M Series
FFC & FPC Connectors FPC Connector
