HDBNC-J-P-GN-RA-BH2
ActiveSamtec Inc.

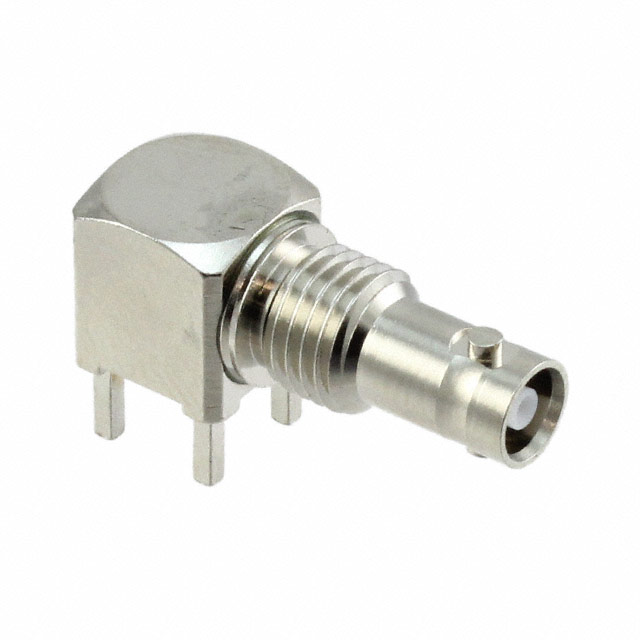

CONN HDBNC JACK R/A 75 OHM PCB
Deep-Dive with AI
Search across all available documentation for this part.
HDBNC-J-P-GN-RA-BH2
ActiveSamtec Inc.
CONN HDBNC JACK R/A 75 OHM PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HDBNC-J-P-GN-RA-BH2 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | HD, BNC |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Features | 12G-SDI |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Silver |
| Impedance | 75 Ohms |
| Includes | 1 Nut, 1 Connector, 1 Lockwasher |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.28 | |
| 10 | $ 10.21 | |||
| 25 | $ 9.22 | |||
| 50 | $ 8.56 | |||
| 100 | $ 7.96 | |||
| 250 | $ 7.25 | |||
| 500 | $ 6.77 | |||
| 1000 | $ 6.34 | |||
Description
General part information
HDBNC-J Series
BNC, HD Connector Jack, Female Socket 75 Ohms Panel Mount, Through Hole, Right Angle Solder
