HDBNC-J-P-GN-ST-EM1 - HDBNC-J-P-GN-ST-EM1

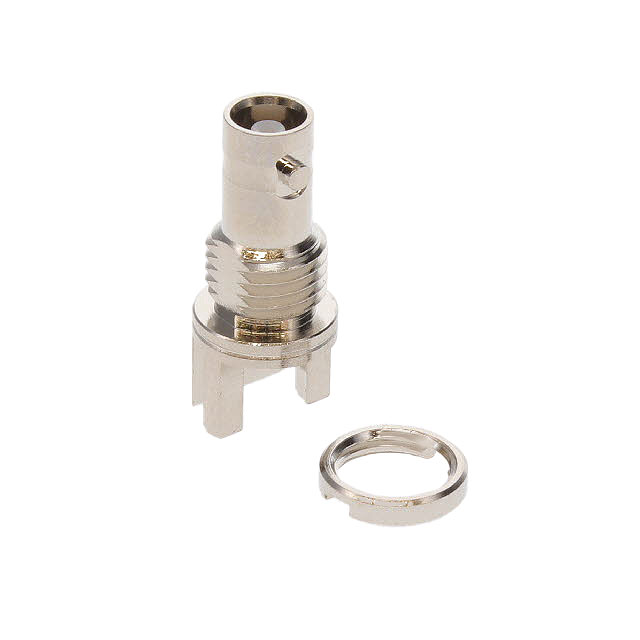

HDBNC-J-P-GN-ST-EM1

Active
Samtec Inc.

RF / COAXIAL CONNECTOR, HD BNC COAXIAL, STRAIGHT JACK, EDGE, 75 OHM, COPPER ALLOY

Deep-Dive with AI

DocumentsDatasheetTechnical Data Sheet EN

Technical Specifications

Parameters and characteristics for this part

SpecificationHDBNC-J-P-GN-ST-EM1
Body FinishNickel
Body MaterialBrass
Center Contact MaterialBeryllium Copper
Center Contact PlatingGold
Connector StyleHD, BNC
Connector TypeFemale Socket, Jack
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeBayonet Lock
Features12G-SDI
Frequency - Max [Max]12 GHz
Housing ColorSilver
Impedance75 Ohms
Includes1 Nut, 1 Connector
Mounting TypeBoard Edge, End Launch
Number of Ports1
Operating Temperature [Max]125 °C
Operating Temperature [Min]-65 ░C
Shield TerminationSolder
Voltage Rating330 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 8.62
10$ 6.61
25$ 5.97
40$ 5.67
80$ 5.26
230$ 4.71
440$ 4.41
945$ 4.10
2400$ 3.79
NewarkEach 1$ 6.13
10$ 5.85
100$ 4.91
500$ 4.16
1000$ 3.53
2500$ 3.24
5000$ 3.17

Description

General part information

HDBNC-J Series

BNC, HD Connector Jack, Female Socket 75 Ohms Board Edge, End Launch Solder
