53025-12-0100-01

Active

CnC Tech, LLC

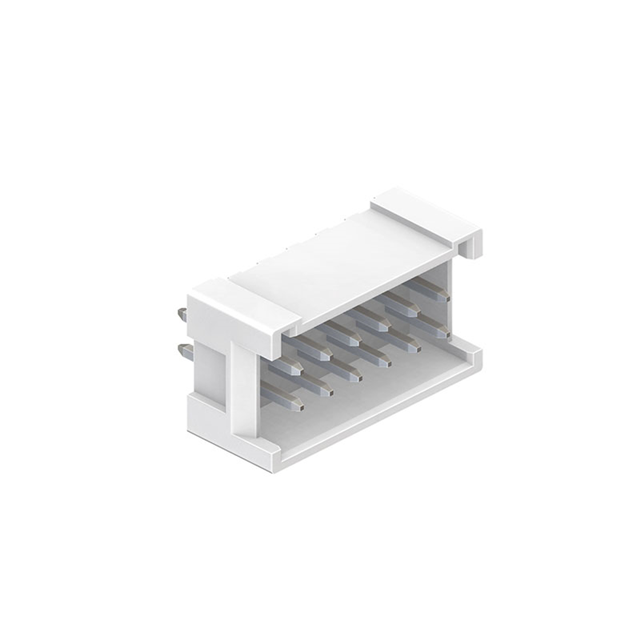

WIRE-TO BOARD WAFER, 2.5MM, 12 C

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

53025-12-0100-01

Active

CnC Tech, LLC

WIRE-TO BOARD WAFER, 2.5MM, 12 C

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	53025-12-0100-01

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Locking Ramp
Insulation Color	White
Insulation Height	7.3 mm
Insulation Height	0.287 in
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Row Spacing - Mating	0.098 in
Row Spacing - Mating	2.5 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

53025 Series

Part	Number of Rows	Fastening Type	Number of Positions	Contact Type	Connector Type	Note	Mounting Type	Contact Termination	Color	Insulation Material	Row Spacing	Row Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Shrouding	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Contact Material	Contact Shape	Termination	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Voltage Rating	Insulation Height	Insulation Height	Insulation Color	Style	Current Rating (Amps)	Number of Positions	Contact Length - Post	Contact Length - Post
CnC Tech, LLC 53025-18	2	Latch Lock	18	Female Socket	Receptacle	Contacts Not Included	Free Hanging (In-Line)	Crimp	White	Polyamide (PA66) Nylon 6/6	0.098 in	2.5 mm	-25 °C	85 °C	0.098 in	2.5 mm
CnC Tech, LLC 53025-20-0100-01	2	Locking Ramp	20	Male Pin	Header		Through Hole			Polyamide (PA66) Nylon 6/6 Glass Filled			-25 °C	85 °C			Shrouded - 4 Wall	0.098 in	2.5 mm	Tin	Brass	Square	Solder	All	0.134 in	3.4 mm	2.5 mm	0.098 in	UL94 V-0	250 VAC	7.3 mm	0.287 in	White	Board to Cable/Wire	3 A
CnC Tech, LLC 53025-16	2	Latch Lock		Female Socket	Receptacle	Contacts Not Included	Free Hanging (In-Line)	Crimp	White	Polyamide (PA66) Nylon 6/6	0.098 in	2.5 mm	-25 °C	85 °C	0.098 in	2.5 mm																				16
CnC Tech, LLC 53025-20-0200-01	2	Locking Ramp	20	Male Pin	Header		Through Hole Right Angle			Polyamide (PA66) Nylon 6/6 Glass Filled			-25 °C	85 °C			Shrouded - 4 Wall	0.098 in	2.5 mm	Tin	Brass	Square	Solder	All			2.5 mm	0.098 in	UL94 V-0	250 VAC	10 mm	0.394 "	White	Board to Cable/Wire	3 A		3.5 mm	0.138 in
CnC Tech, LLC 53025-20	2	Latch Lock	20	Female Socket	Receptacle	Contacts Not Included	Free Hanging (In-Line)	Crimp	White	Polyamide (PA66) Nylon 6/6	0.098 in	2.5 mm	-25 °C	85 °C	0.098 in	2.5 mm
CnC Tech, LLC 53025-18-0200-01	2	Locking Ramp	18	Male Pin	Header		Through Hole Right Angle			Polyamide (PA66) Nylon 6/6 Glass Filled			-25 °C	85 °C			Shrouded - 4 Wall	0.098 in	2.5 mm	Tin	Brass	Square	Solder	All			2.5 mm	0.098 in	UL94 V-0	250 VAC	10 mm	0.394 "	White	Board to Cable/Wire	3 A		3.5 mm	0.138 in
CnC Tech, LLC 53025-12	2	Latch Lock	12	Female Socket	Receptacle	Contacts Not Included	Free Hanging (In-Line)	Crimp	White	Polyamide (PA66) Nylon 6/6	0.098 in	2.5 mm	-25 °C	85 °C	0.098 in	2.5 mm
CnC Tech, LLC 53025-12-0100-01	2	Locking Ramp	12	Male Pin	Header		Through Hole			Polyamide (PA66) Nylon 6/6 Glass Filled			-25 °C	85 °C			Shrouded - 4 Wall	0.098 in	2.5 mm	Tin	Brass	Square	Solder	All	0.134 in	3.4 mm	2.5 mm	0.098 in	UL94 V-0	250 VAC	7.3 mm	0.287 in	White	Board to Cable/Wire	3 A
