53025-20

Active

CnC Tech, LLC

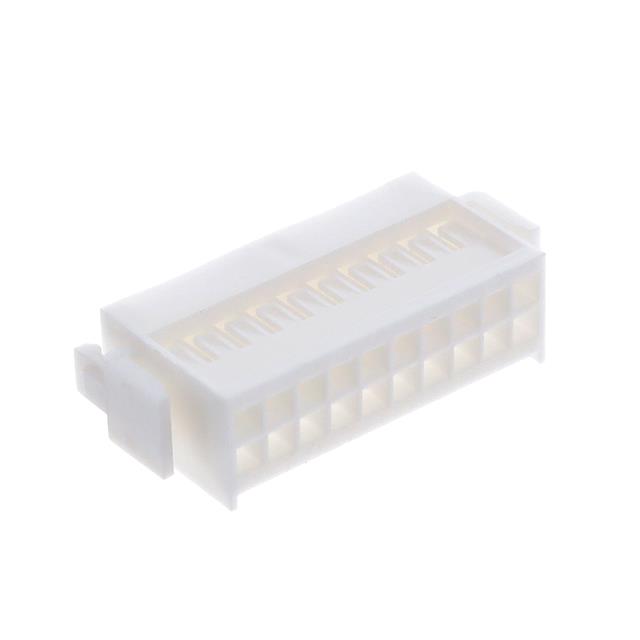

CONN RCPT HSG 20POS 2.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

53025-20

Active

CnC Tech, LLC

CONN RCPT HSG 20POS 2.50MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	53025-20

Color	White
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	20
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.098 in
Pitch [x]	2.5 mm
Row Spacing	0.098 in
Row Spacing	2.5 mm

53025 Series

Part	Number of Rows	Fastening Type	Number of Positions	Contact Type	Connector Type	Note	Mounting Type	Contact Termination	Color	Insulation Material	Row Spacing	Row Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Shrouding	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Contact Material	Contact Shape	Termination	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Voltage Rating	Insulation Height	Insulation Height	Insulation Color	Style	Current Rating (Amps)	Number of Positions	Contact Length - Post	Contact Length - Post
CnC Tech, LLC 53025-18	2	Latch Lock	18	Female Socket	Receptacle	Contacts Not Included	Free Hanging (In-Line)	Crimp	White	Polyamide (PA66) Nylon 6/6	0.098 in	2.5 mm	-25 °C	85 °C	0.098 in	2.5 mm
CnC Tech, LLC 53025-20-0100-01	2	Locking Ramp	20	Male Pin	Header		Through Hole			Polyamide (PA66) Nylon 6/6 Glass Filled			-25 °C	85 °C			Shrouded - 4 Wall	0.098 in	2.5 mm	Tin	Brass	Square	Solder	All	0.134 in	3.4 mm	2.5 mm	0.098 in	UL94 V-0	250 VAC	7.3 mm	0.287 in	White	Board to Cable/Wire	3 A
CnC Tech, LLC 53025-16	2	Latch Lock		Female Socket	Receptacle	Contacts Not Included	Free Hanging (In-Line)	Crimp	White	Polyamide (PA66) Nylon 6/6	0.098 in	2.5 mm	-25 °C	85 °C	0.098 in	2.5 mm																				16
CnC Tech, LLC 53025-20-0200-01	2	Locking Ramp	20	Male Pin	Header		Through Hole Right Angle			Polyamide (PA66) Nylon 6/6 Glass Filled			-25 °C	85 °C			Shrouded - 4 Wall	0.098 in	2.5 mm	Tin	Brass	Square	Solder	All			2.5 mm	0.098 in	UL94 V-0	250 VAC	10 mm	0.394 "	White	Board to Cable/Wire	3 A		3.5 mm	0.138 in
CnC Tech, LLC 53025-20	2	Latch Lock	20	Female Socket	Receptacle	Contacts Not Included	Free Hanging (In-Line)	Crimp	White	Polyamide (PA66) Nylon 6/6	0.098 in	2.5 mm	-25 °C	85 °C	0.098 in	2.5 mm
CnC Tech, LLC 53025-18-0200-01	2	Locking Ramp	18	Male Pin	Header		Through Hole Right Angle			Polyamide (PA66) Nylon 6/6 Glass Filled			-25 °C	85 °C			Shrouded - 4 Wall	0.098 in	2.5 mm	Tin	Brass	Square	Solder	All			2.5 mm	0.098 in	UL94 V-0	250 VAC	10 mm	0.394 "	White	Board to Cable/Wire	3 A		3.5 mm	0.138 in
CnC Tech, LLC 53025-12	2	Latch Lock	12	Female Socket	Receptacle	Contacts Not Included	Free Hanging (In-Line)	Crimp	White	Polyamide (PA66) Nylon 6/6	0.098 in	2.5 mm	-25 °C	85 °C	0.098 in	2.5 mm
CnC Tech, LLC 53025-12-0100-01	2	Locking Ramp	12	Male Pin	Header		Through Hole			Polyamide (PA66) Nylon 6/6 Glass Filled			-25 °C	85 °C			Shrouded - 4 Wall	0.098 in	2.5 mm	Tin	Brass	Square	Solder	All	0.134 in	3.4 mm	2.5 mm	0.098 in	UL94 V-0	250 VAC	7.3 mm	0.287 in	White	Board to Cable/Wire	3 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.60
		10	$ 0.50
		25	$ 0.48
		50	$ 0.47
		100	$ 0.45
		250	$ 0.41
		500	$ 0.37
		1000	$ 0.36

Description

General part information

53025 Series

20 Rectangular Connectors - Housings Receptacle White 0.098" (2.50mm)

Documents

Technical documentation and resources
