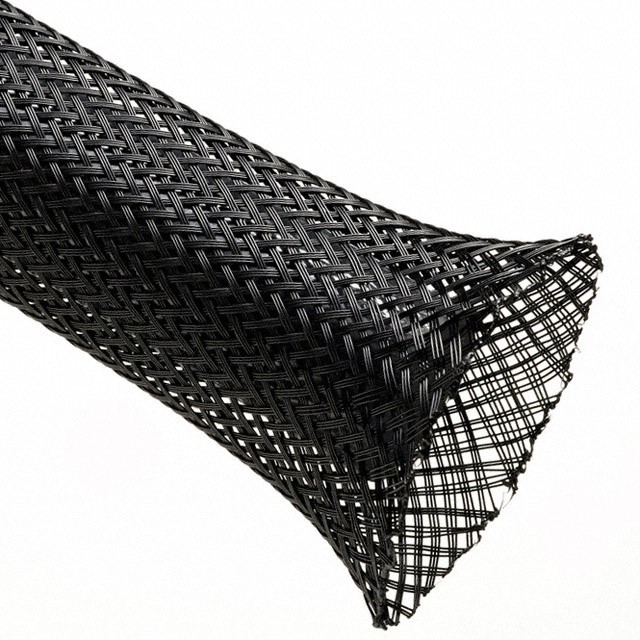

PTN0.63BK100
ActiveTechflex
EXPAND SLEEVING 5/8" X 100' BLK
Deep-Dive with AI
Search across all available documentation for this part.
PTN0.63BK100
ActiveTechflex
EXPAND SLEEVING 5/8" X 100' BLK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PTN0.63BK100 |
|---|---|
| Abrasion Protection | Abrasion and Cut Resistant |
| Color | Black |
| Diameter - Inside, Non-Expanded [diameter] | 15.88 mm |
| Diameter - Inside, Non-Expanded [diameter] | 0.625 in |
| Environment Protection | UV Resistant |
| Features | Clean Cut, Chemical Resistant, Solvent Resistant |
| Heat Protection | Heat Resistant |
| Length | 100 ft |
| Length | 30.48 m |
| Liquid Protection | Gasoline Resistant |
| Material | Polyethylene Terephthalate (PET), Halogen Free |
| Material Flammability Rating | UL94 V-0 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -70 °C |
| Type | Sleeve |
| Type Attributes | Expandable |
| Wall Thickness [custom] | 0.025 in |
| Wall Thickness [custom] | 0.64 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 44.14 | |
| 2 | $ 40.59 | |||
| 3 | $ 38.65 | |||
| 5 | $ 36.34 | |||
| 7 | $ 34.89 | |||
| 10 | $ 33.42 | |||
| 25 | $ 29.92 | |||
| 50 | $ 27.52 | |||
| 100 | $ 25.31 | |||
Description
General part information
PTN0 Series
Sleeve X 100' (30.48m) Black
