PTN0.63RD100

Active

Techflex

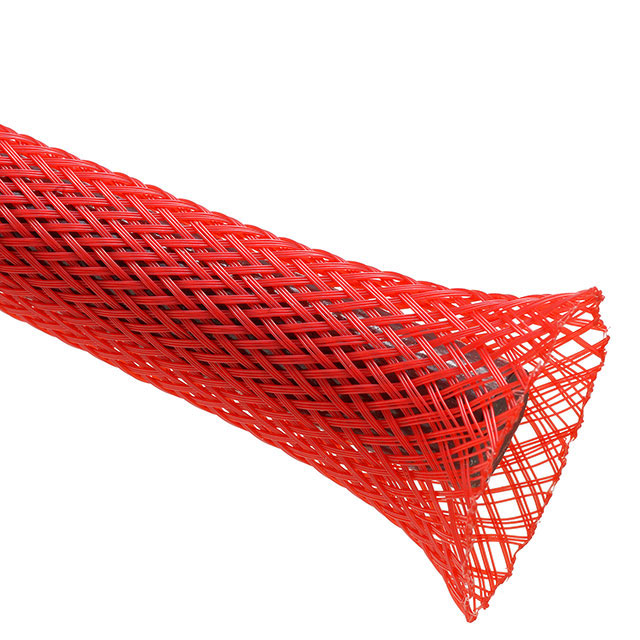

EXPAND SLEEVING 5/8" X 100' RED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Flexo® PET, Remix Catalog Page

PTN0.63RD100

Active

Techflex

EXPAND SLEEVING 5/8" X 100' RED

Deep-Dive with AI

DocumentsDatasheet Flexo® PET, Remix Catalog Page

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PTN0.63RD100

Abrasion Protection	Abrasion and Cut Resistant
Color	Red
Diameter - Inside, Non-Expanded [diameter]	15.88 mm
Diameter - Inside, Non-Expanded [diameter]	0.625 in
Environment Protection	UV Resistant
Features	Clean Cut, Chemical Resistant, Solvent Resistant
Heat Protection	Heat Resistant
Length	100 ft
Length	30.48 m
Liquid Protection	Gasoline Resistant
Material	Polyethylene Terephthalate (PET), Halogen Free
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-70 °C
Type	Sleeve
Type Attributes	Expandable
Wall Thickness [custom]	0.025 in
Wall Thickness [custom]	0.64 mm

PTN0 Series

Part	Type Attributes	Environment Protection	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Length	Length	Wall Thickness [custom]	Wall Thickness [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Liquid Protection	Heat Protection	Features	Material Flammability Rating	Color	Material	Abrasion Protection	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Type	Length [x]	Length [x]
Techflex PTN0.13RD225	Expandable	UV Resistant	0.125 in	3.18 mm	225 ft	68.58 m	0.025 in	0.64 mm	125 °C	-70 °C	Gasoline Resistant	Heat Resistant	Chemical Resistant Clean Cut Solvent Resistant	UL94 V-0	Red	Polyethylene Terephthalate (PET) Halogen Free	Abrasion and Cut Resistant	6.35 mm	0.25 in	Sleeve
Techflex PTN0.63RD100	Expandable	UV Resistant	0.625 in	15.88 mm	100 ft	30.48 m	0.025 in	0.64 mm	125 °C	-70 °C	Gasoline Resistant	Heat Resistant	Chemical Resistant Clean Cut Solvent Resistant	UL94 V-0	Red	Polyethylene Terephthalate (PET) Halogen Free	Abrasion and Cut Resistant			Sleeve
Techflex PTN0.38WH500	Expandable	UV Resistant	0.375 in	9.53 mm			0.025 in	0.64 mm	125 °C	-70 °C	Gasoline Resistant	Heat Resistant	Chemical Resistant Clean Cut Solvent Resistant	UL94 V-0	White	Polyethylene Terephthalate (PET) Halogen Free	Abrasion and Cut Resistant	12.7 mm	0.5 in	Sleeve	500 '	152.4 m
Techflex PTN0.13PP225	Expandable	UV Resistant	0.125 in	3.18 mm	225 ft	68.58 m	0.025 in	0.64 mm	125 °C	-70 °C	Gasoline Resistant	Heat Resistant	Chemical Resistant Clean Cut Solvent Resistant	UL94 V-0	Purple	Polyethylene Terephthalate (PET) Halogen Free	Abrasion and Cut Resistant	6.35 mm	0.25 in	Sleeve
Techflex PTN0.63BK100	Expandable	UV Resistant	0.625 in	15.88 mm	100 ft	30.48 m	0.025 in	0.64 mm	125 °C	-70 °C	Gasoline Resistant	Heat Resistant	Chemical Resistant Clean Cut Solvent Resistant	UL94 V-0	Black	Polyethylene Terephthalate (PET) Halogen Free	Abrasion and Cut Resistant			Sleeve
Techflex PTN0.25BK1000	Expandable	UV Resistant			1000 ft	304.8 m	0.025 in	0.64 mm	125 °C	-70 °C	Gasoline Resistant	Heat Resistant	Chemical Resistant Clean Cut Solvent Resistant	UL94 V-0	Black	Polyethylene Terephthalate (PET) Halogen Free	Abrasion and Cut Resistant	11.13 mm	0.438 in	Sleeve
Techflex PTN0.75NG75	Expandable		0.75 in	19.05 mm			0.025 in	0.64 mm	125 °C	-70 °C	Gasoline Resistant	Heat Resistant	Chemical Resistant Clean Cut Solvent Resistant	UL94 V-0	Green Neon	Polyethylene Terephthalate (PET) Halogen Free	Abrasion and Cut Resistant	31.75 mm	1.25 in	Sleeve	75 ft	22.86 m
Techflex PTN0.63WH100	Expandable	UV Resistant	0.625 in	15.88 mm	100 ft	30.48 m	0.025 in	0.64 mm	125 °C	-70 °C	Gasoline Resistant	Heat Resistant	Chemical Resistant Clean Cut Solvent Resistant	UL94 V-0	White	Polyethylene Terephthalate (PET) Halogen Free	Abrasion and Cut Resistant			Sleeve
Techflex PTN0.38BR500	Expandable	UV Resistant	0.375 in	9.53 mm			0.025 in	0.64 mm	125 °C	-70 °C	Gasoline Resistant	Heat Resistant	Chemical Resistant Clean Cut Solvent Resistant	UL94 V-0	Brown	Polyethylene Terephthalate (PET) Halogen Free	Abrasion and Cut Resistant	12.7 mm	0.5 in	Sleeve	500 '	152.4 m
Techflex PTN0.50WH100	Expandable	UV Resistant	0.5 in	12.7 mm	100 ft	30.48 m	0.025 in	0.64 mm	125 °C	-70 °C	Gasoline Resistant	Heat Resistant	Chemical Resistant Clean Cut Solvent Resistant	UL94 V-0	White	Polyethylene Terephthalate (PET) Halogen Free	Abrasion and Cut Resistant	19.05 mm	0.75 in	Sleeve

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.53
		5	$ 39.18
		10	$ 35.51
		25	$ 33.06
		50	$ 31.84
		100	$ 31.10

Description

General part information

PTN0 Series

Sleeve X 100' (30.48m) Red
