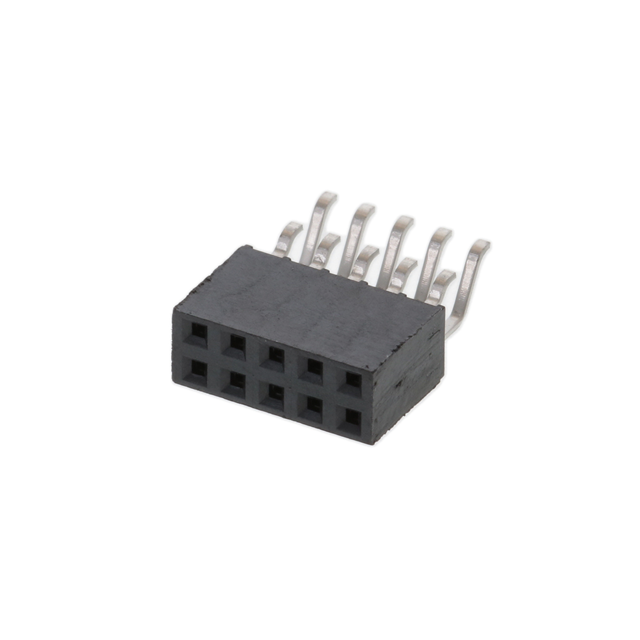

SMH-105-02-L-D

Active

Samtec Inc.

HEADERS & WIRE HOUSINGS .100" HORIZONTAL SURFACE MOUNT SOCKET STRIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSMH Datasheet SMH Series Datasheet +4

SMH-105-02-L-D

Active

Samtec Inc.

HEADERS & WIRE HOUSINGS .100" HORIZONTAL SURFACE MOUNT SOCKET STRIP

Deep-Dive with AI

DocumentsSMH Datasheet SMH Series Datasheet +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SMH-105-02-L-D

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.195 in
Insulation Height	4.95 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

SMH-105 Series

Headers & Wire Housings .100" Horizontal Surface Mount Socket Strip

Part	Material Flammability Rating	Termination	Number of Rows	Contact Type	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Mounting Type	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Number of Positions Loaded	Insulation Color	Contact Shape	Fastening Type	Insulation Height [z]	Insulation Height [z]	Contact Finish - Post	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Number of Positions	Number of Positions Loaded	Contact Finish Thickness - Mating
Samtec Inc. SMH-135-02-G-S	UL94 V-0	Solder	1	Forked	Phosphor Bronze	0.51 µm	20 µin	Receptacle	0.1 in	2.54 mm	Gold	Surface Mount Right Angle	Flash	-55 °C	125 °C	35	All	Black	Square	Push-Pull	0.095 in	2.41 mm	Gold	Liquid Crystal Polymer (LCP)
Samtec Inc. SMH-105-02-T-D	UL94 V-0	Solder	2	Forked	Phosphor Bronze			Receptacle	0.1 in	2.54 mm		Surface Mount Right Angle		-55 °C	105 ░C	10	All	Black	Square	Push-Pull			Tin	Liquid Crystal Polymer (LCP)	2.54 mm	0.1 in	0.195 in	4.95 mm
Samtec Inc. SMH-116-02-G-S	UL94 V-0	Solder	1	Forked	Phosphor Bronze	0.51 µm	20 µin	Receptacle	0.1 in	2.54 mm	Gold	Surface Mount Right Angle	Flash	-55 °C	125 °C		All	Black	Square	Push-Pull	0.095 in	2.41 mm	Gold	Liquid Crystal Polymer (LCP)					16
Samtec Inc. SMH-105-02-G-S	UL94 V-0	Solder	1	Forked	Phosphor Bronze	0.51 µm	20 µin	Receptacle	0.1 in	2.54 mm	Gold	Surface Mount Right Angle	Flash	-55 °C	125 °C		All	Black	Square	Push-Pull	0.095 in	2.41 mm	Gold	Liquid Crystal Polymer (LCP)
Samtec Inc. SMH-112-02-L-S-03-TR	UL94 V-0	Solder	1	Forked	Phosphor Bronze	0.25 çm	10 çin	Receptacle	0.1 in	2.54 mm	Gold	Surface Mount Right Angle		-55 °C	125 °C	12		Black	Square	Push-Pull	0.095 in	2.41 mm	Tin	Liquid Crystal Polymer (LCP)						11
Samtec Inc. SMH-112-02-G-S-03	UL94 V-0	Solder	1	Forked	Phosphor Bronze	0.51 µm	20 µin	Receptacle	0.1 in	2.54 mm	Gold	Surface Mount Right Angle	Flash	-55 °C	125 °C	12		Black	Square	Push-Pull	0.095 in	2.41 mm	Gold	Liquid Crystal Polymer (LCP)						11
Samtec Inc. SMH-105-02-T-D-TR	UL94 V-0	Solder	2	Forked	Phosphor Bronze			Receptacle	0.1 in	2.54 mm		Surface Mount Right Angle		-55 °C	105 ░C	10	All	Black	Square	Push-Pull			Tin	Liquid Crystal Polymer (LCP)	2.54 mm	0.1 in	0.195 in	4.95 mm
Samtec Inc. SMH-112-02-L-S-10	UL94 V-0	Solder	1	Forked	Phosphor Bronze	0.25 çm	10 çin	Receptacle	0.1 in	2.54 mm	Gold	Surface Mount Right Angle		-55 °C	125 °C	12		Black	Square	Push-Pull	0.095 in	2.41 mm	Tin	Liquid Crystal Polymer (LCP)						11
Samtec Inc. SMH-105-02-L-D	UL94 V-0	Solder	2	Forked	Phosphor Bronze	0.25 çm	10 çin	Receptacle	0.1 in	2.54 mm	Gold	Surface Mount Right Angle		-55 °C	125 °C	10	All	Black	Square	Push-Pull			Tin	Liquid Crystal Polymer (LCP)	2.54 mm	0.1 in	0.195 in	4.95 mm
Samtec Inc. SMH-108-02-F-S	UL94 V-0	Solder	1	Forked	Phosphor Bronze			Receptacle	0.1 in	2.54 mm	Gold	Surface Mount Right Angle		-55 °C	125 °C	8	All	Black	Square	Push-Pull	0.095 in	2.41 mm	Tin	Liquid Crystal Polymer (LCP)							Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.97
		50	$ 2.42
		100	$ 2.05
		500	$ 1.83
		1000	$ 1.70
Sager	N/A	1	$ 2.97
		50	$ 2.42
		100	$ 2.05
		500	$ 1.83
		1000	$ 1.36
		2000	$ 1.21
		5000	$ 0.90
		10000	$ 0.59
