SMH-105-02-T-D
ActiveSamtec Inc.

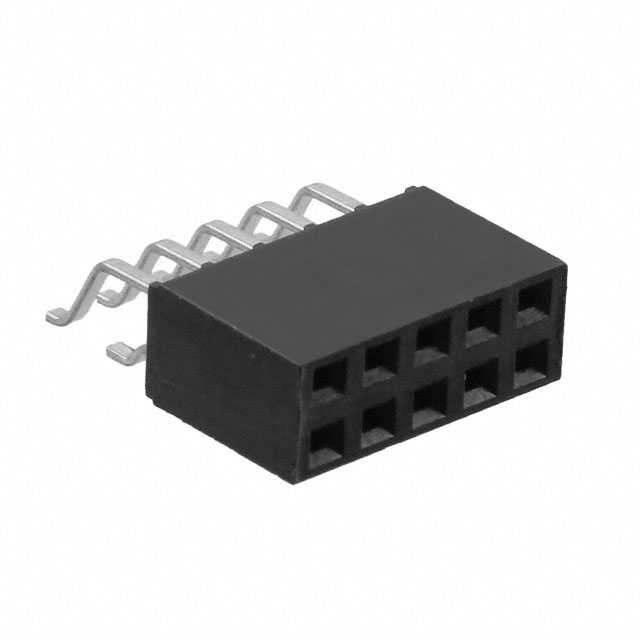

CONN RCPT 10POS 0.1 TIN SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
SMH-105-02-T-D
ActiveSamtec Inc.
CONN RCPT 10POS 0.1 TIN SMD R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SMH-105-02-T-D |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Forked |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.195 in |
| Insulation Height | 4.95 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Termination | Solder |
SMH-105 Series
Headers & Wire Housings .100" Horizontal Surface Mount Socket Strip
| Part | Material Flammability Rating | Termination | Number of Rows | Contact Type | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Mounting Type | Contact Finish Thickness - Post | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Number of Positions Loaded | Insulation Color | Contact Shape | Fastening Type | Insulation Height [z] | Insulation Height [z] | Contact Finish - Post | Insulation Material | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Height | Insulation Height | Number of Positions | Number of Positions Loaded | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | UL94 V-0 | Solder | 1 | Forked | Phosphor Bronze | 0.51 µm | 20 µin | Receptacle | 0.1 in | 2.54 mm | Gold | Surface Mount Right Angle | Flash | -55 °C | 125 °C | 35 | All | Black | Square | Push-Pull | 0.095 in | 2.41 mm | Gold | Liquid Crystal Polymer (LCP) | |||||||
Samtec Inc. | UL94 V-0 | Solder | 2 | Forked | Phosphor Bronze | Receptacle | 0.1 in | 2.54 mm | Surface Mount Right Angle | -55 °C | 105 ░C | 10 | All | Black | Square | Push-Pull | Tin | Liquid Crystal Polymer (LCP) | 2.54 mm | 0.1 in | 0.195 in | 4.95 mm | |||||||||
Samtec Inc. | UL94 V-0 | Solder | 1 | Forked | Phosphor Bronze | 0.51 µm | 20 µin | Receptacle | 0.1 in | 2.54 mm | Gold | Surface Mount Right Angle | Flash | -55 °C | 125 °C | All | Black | Square | Push-Pull | 0.095 in | 2.41 mm | Gold | Liquid Crystal Polymer (LCP) | 16 | |||||||
Samtec Inc. | UL94 V-0 | Solder | 1 | Forked | Phosphor Bronze | 0.51 µm | 20 µin | Receptacle | 0.1 in | 2.54 mm | Gold | Surface Mount Right Angle | Flash | -55 °C | 125 °C | All | Black | Square | Push-Pull | 0.095 in | 2.41 mm | Gold | Liquid Crystal Polymer (LCP) | ||||||||
Samtec Inc. | UL94 V-0 | Solder | 1 | Forked | Phosphor Bronze | 0.25 çm | 10 çin | Receptacle | 0.1 in | 2.54 mm | Gold | Surface Mount Right Angle | -55 °C | 125 °C | 12 | Black | Square | Push-Pull | 0.095 in | 2.41 mm | Tin | Liquid Crystal Polymer (LCP) | 11 | ||||||||
Samtec Inc. | UL94 V-0 | Solder | 1 | Forked | Phosphor Bronze | 0.51 µm | 20 µin | Receptacle | 0.1 in | 2.54 mm | Gold | Surface Mount Right Angle | Flash | -55 °C | 125 °C | 12 | Black | Square | Push-Pull | 0.095 in | 2.41 mm | Gold | Liquid Crystal Polymer (LCP) | 11 | |||||||
Samtec Inc. | UL94 V-0 | Solder | 2 | Forked | Phosphor Bronze | Receptacle | 0.1 in | 2.54 mm | Surface Mount Right Angle | -55 °C | 105 ░C | 10 | All | Black | Square | Push-Pull | Tin | Liquid Crystal Polymer (LCP) | 2.54 mm | 0.1 in | 0.195 in | 4.95 mm | |||||||||
Samtec Inc. | UL94 V-0 | Solder | 1 | Forked | Phosphor Bronze | 0.25 çm | 10 çin | Receptacle | 0.1 in | 2.54 mm | Gold | Surface Mount Right Angle | -55 °C | 125 °C | 12 | Black | Square | Push-Pull | 0.095 in | 2.41 mm | Tin | Liquid Crystal Polymer (LCP) | 11 | ||||||||
Samtec Inc. | UL94 V-0 | Solder | 2 | Forked | Phosphor Bronze | 0.25 çm | 10 çin | Receptacle | 0.1 in | 2.54 mm | Gold | Surface Mount Right Angle | -55 °C | 125 °C | 10 | All | Black | Square | Push-Pull | Tin | Liquid Crystal Polymer (LCP) | 2.54 mm | 0.1 in | 0.195 in | 4.95 mm | ||||||
Samtec Inc. | UL94 V-0 | Solder | 1 | Forked | Phosphor Bronze | Receptacle | 0.1 in | 2.54 mm | Gold | Surface Mount Right Angle | -55 °C | 125 °C | 8 | All | Black | Square | Push-Pull | 0.095 in | 2.41 mm | Tin | Liquid Crystal Polymer (LCP) | Flash |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.95 | |
| 50 | $ 1.59 | |||
| 100 | $ 1.35 | |||
| 500 | $ 1.20 | |||
| 1000 | $ 1.11 | |||
Description
General part information
SMH-105 Series
Headers & Wire Housings .100" Horizontal Surface Mount Socket Strip
