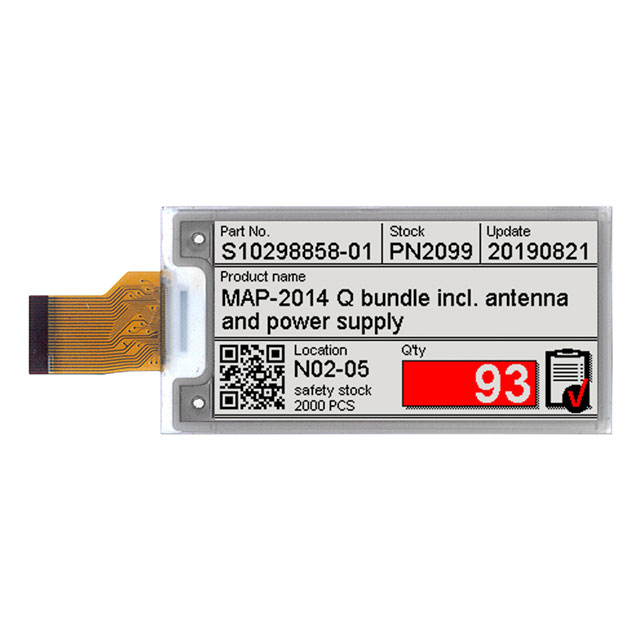

E2266FS092

Obsolete

Pervasive Displays

2.66" EPD, SPECTRA, W.ITC

Search across all available documentation for this part.

Obsolete

Pervasive Displays

2.66" EPD, SPECTRA, W.ITC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	E2266FS092	E2266 Series

Backlight	Without Backlight	Without Backlight
Diagonal Screen Size	67.56 mm	67.56 - 68.58 mm
Diagonal Screen Size	2.66 in	2.66 - 2.7 in
Display Mode	Reflective	Reflective
Display Type	TFT - Electronic Paper Display (EPD)	TFT - Electronic Paper Display (EPD), TFT - Color
Dot Pitch [x]	0.2 mm	0.2 mm
Dot Pitch [y]	0.2 mm	0.2 mm
Dot Pixels [x]	296	296
Dot Pixels [y]	152 pixels	152 pixels
Graphics Color	Black, Red, White	Black, Red, White
Interface	SPI	SPI
Viewing Area [x]	60.09 mm	60.09 mm
Viewing Area [y]	30.7 mm	30.7 mm

2.66" EPD, SPECTRA, W.ITC

Part	Viewing Area [x]	Viewing Area [y]	Display Type	Diagonal Screen Size	Diagonal Screen Size	Dot Pitch [x]	Dot Pitch [y]	Backlight	Graphics Color	Interface	Display Mode	Dot Pixels [y]	Dot Pixels [x]
Pervasive Displays E2266FS092	60.09 mm	30.7 mm	TFT - Electronic Paper Display (EPD)	67.56 mm	2.66 in	0.2 mm	0.2 mm	Without Backlight	Black, Red, White	SPI	Reflective	152 pixels	296
Pervasive Displays E2266HS092	60.09 mm	30.7 mm	TFT - Electronic Paper Display (EPD)	67.56 mm	2.66 in	0.2 mm	0.2 mm		Black, White	SPI		152 pixels	296
Pervasive Displays E2266PS0C2			TFT - Color	67.56 mm	2.66 in	0.2 mm	0.2 mm	Without Backlight	Black, White	SPI		152 pixels	296
Pervasive Displays E2266PS0C1			TFT - Color	68.58 mm	2.7 "	0.2 mm	0.2 mm	Without Backlight	Black, White	SPI		152 pixels	296

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Graphic LCD Display Module Reflective Black, Red, White TFT - Electronic Paper Display (EPD) SPI 2.66" (67.56mm) 296 x 152
