E2266PS0C2

Obsolete

Pervasive Displays

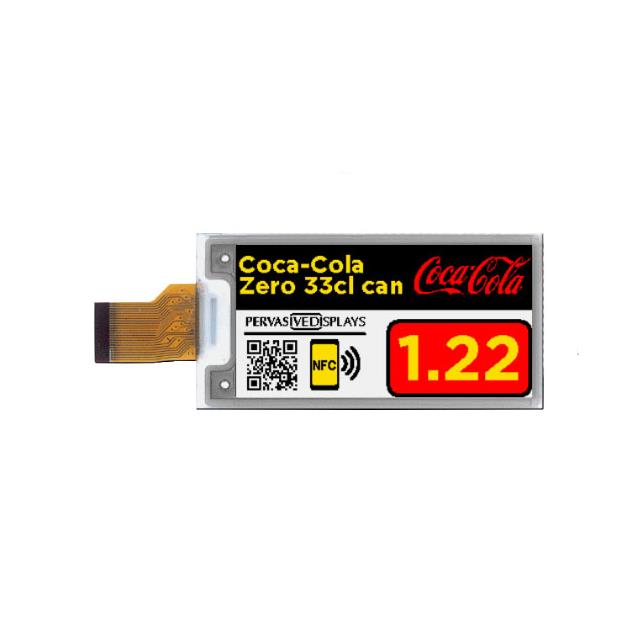

2.66" EPD, A-MB, W.ITC, FAST UPD

Search across all available documentation for this part.

Obsolete

Pervasive Displays

2.66" EPD, A-MB, W.ITC, FAST UPD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Graphic LCD Display Module Black, White TFT - Color SPI 2.66" (67.56mm) 296 x 152

Technical documentation and resources

No documents available

Specification	E2266PS0C2	E2266 Series

Backlight	Without Backlight	Without Backlight
Diagonal Screen Size	67.56 mm	67.56 - 68.58 mm
Diagonal Screen Size	2.66 in	2.66 - 2.7 in
Display Mode	-	Reflective
Display Type	TFT - Color	TFT - Electronic Paper Display (EPD), TFT - Color
Dot Pitch [x]	0.2 mm	0.2 mm
Dot Pitch [y]	0.2 mm	0.2 mm
Dot Pixels [x]	296	296
Dot Pixels [y]	152 pixels	152 pixels
Graphics Color	White, Black	Black, Red, White
Interface	SPI	SPI
Viewing Area	-	60.09 mm
Viewing Area	-	30.7 mm

Part	Viewing Area [x]	Viewing Area [y]	Display Type	Diagonal Screen Size	Diagonal Screen Size	Dot Pitch [x]	Dot Pitch [y]	Backlight	Graphics Color	Interface	Display Mode	Dot Pixels [y]	Dot Pixels [x]
Pervasive Displays E2266FS092	60.09 mm	30.7 mm	TFT - Electronic Paper Display (EPD)	67.56 mm	2.66 in	0.2 mm	0.2 mm	Without Backlight	Black, Red, White	SPI	Reflective	152 pixels	296
Pervasive Displays E2266HS092	60.09 mm	30.7 mm	TFT - Electronic Paper Display (EPD)	67.56 mm	2.66 in	0.2 mm	0.2 mm		Black, White	SPI		152 pixels	296
Pervasive Displays E2266PS0C2			TFT - Color	67.56 mm	2.66 in	0.2 mm	0.2 mm	Without Backlight	Black, White	SPI		152 pixels	296
Pervasive Displays E2266PS0C1			TFT - Color	68.58 mm	2.7 "	0.2 mm	0.2 mm	Without Backlight	Black, White	SPI		152 pixels	296
