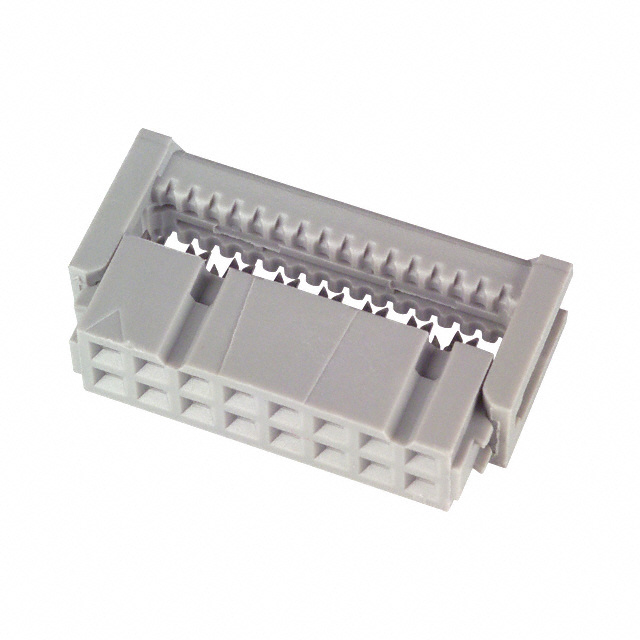

89116-0001 - 89116-0001

89116-0001

Active
3M (TC)

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 16 CONTACTS, CABLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDate Code Decipher891 Series Product Spec+3
89116-0001 - 89116-0001

89116-0001

Active
3M (TC)

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 16 CONTACTS, CABLE MOUNT

Deep-Dive with AI

DocumentsDate Code Decipher891 Series Product Spec+3

Technical Specifications

Parameters and characteristics for this part

Specification89116-0001
Cable TerminationIDC
ColorGray
Connector TypeReceptacle
Contact FinishGold
Contact Finish Thickness0.76 Ám
Contact Finish Thickness30 Áin
Contact TypeFemale Socket
FeaturesFeed Through
Mounting TypeFree Hanging (In-Line)
Number of Positions16
Number of Rows2
Pitch [x]2.54 mm
Pitch [x]0.1 in
Row Spacing2.54 mm
Row Spacing [x]0.1 in
Wire TypeRibbon Cable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 1.85
10$ 1.61
25$ 1.54
50$ 1.51
100$ 1.44
250$ 1.30
500$ 1.20
1000$ 1.03
2500$ 0.96

Description

General part information

89116 Series

The 891 series IDC Ribbon Cable Socket with phosphor bronze contacts and a glass-filled polybutylene terephthalate insulator. The double-recessed cover for cable terminating from either side virtually eliminating the need for single-recessed cover connectors.
