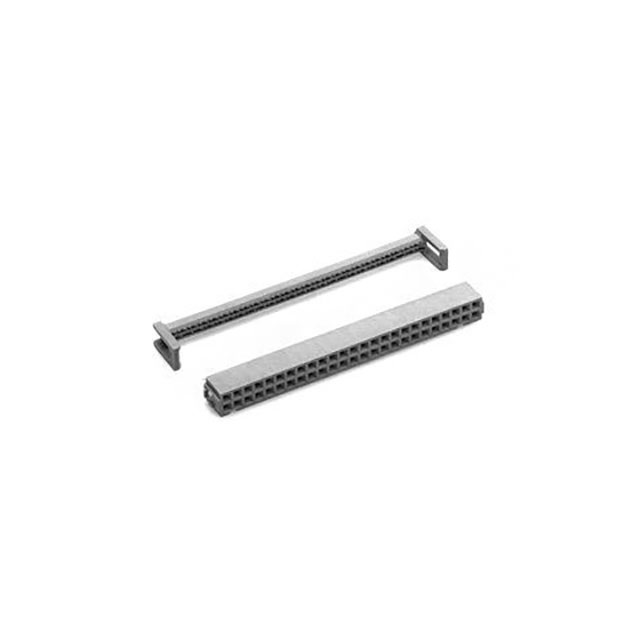

89116-0101HA

Active

3M (TC)

CONN RCPT 16P IDC 26-28AWG GOLD

Search across all available documentation for this part.

Active

3M (TC)

CONN RCPT 16P IDC 26-28AWG GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Features	Number of Rows	Connector Type	Cable Termination	Row Spacing [x]	Row Spacing	Contact Type	Color	Mounting Type	Pitch [x]	Pitch [x]	Wire Type	Contact Finish
3M (TC) 89116-0101HA	15 µin	0.38 µm	16	Feed Through Polarizing Key	2	Receptacle	IDC	0.1 in	2.54 mm	Female Socket	Gray	Free Hanging (In-Line)	2.54 mm	0.1 in	Ribbon Cable	Gold
3M (TC) 89116-0111	30 Áin	0.76 Ám	16	Feed Through Polarizing Key	2	Receptacle	IDC	0.1 in	2.54 mm	Female Socket	Gray	Free Hanging (In-Line)	2.54 mm	0.1 in	Ribbon Cable	Gold
3M (TC) 89116-0001HA	30 Áin	0.76 Ám	16	Feed Through	2	Receptacle	IDC	0.1 in	2.54 mm	Female Socket	Gray	Free Hanging (In-Line)	2.54 mm	0.1 in	Ribbon Cable	Gold
3M (TC) 89116-0001	30 Áin	0.76 Ám	16	Feed Through	2	Receptacle	IDC	0.1 in	2.54 mm	Female Socket	Gray	Free Hanging (In-Line)	2.54 mm	0.1 in	Ribbon Cable	Gold
