112272

Active

Amphenol RF

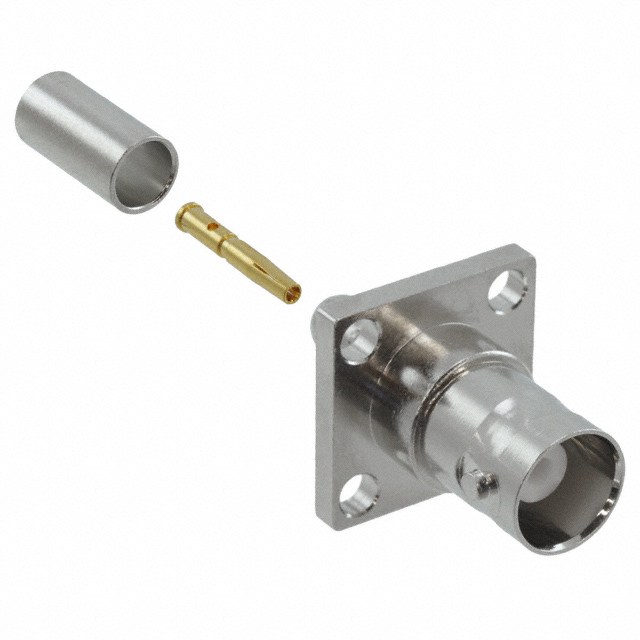

CONN BNC JACK STR 50 OHM CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

112272

Active

Amphenol RF

CONN BNC JACK STR 50 OHM CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	112272

Body Finish	Nickel
Body Material	Brass
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Shield Termination	Crimp
Voltage Rating	500 V

1122 Series

Part	Fastening Type	Body Finish	Housing Color	Voltage Rating	Connector Style	Center Contact Plating	Connector Type	Mating Cycles	Includes	Contact Termination	Frequency - Max [Max]	Body Material	Impedance	Shield Termination	Mounting Feature	Center Contact Material	Cable Group	Dielectric Material	Number of Ports	Features	Insertion Loss	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol RF 112289	Bayonet Lock	Nickel	Silver	500 V	BNC	Gold	Female Socket Jack	500	1 Connector 1 Contact 1 Ferrule 1 Sleeve	Crimp	4 GHz	Brass	75 Ohms	Crimp	Flange	Phosphor Bronze	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	Polyoxymethylene (POM) Acetal	1
Amphenol RF 112253	Bayonet Lock	Nickel	Silver	500 V	BNC	Gold	Female Socket Jack	500	Connector Contact Ferrule Lockwasher Nut Sleeve	Crimp	4 GHz	Zinc Die Cast	75 Ohms	Crimp	Bulkhead - Front Side Nut	Phosphor Bronze	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	Polytetrafluoroethylene (PTFE)	1	Isolated
Amphenol RF 112272	Bayonet Lock	Nickel	Silver	500 V	BNC	Gold	Female Socket Jack	500	1 Connector 1 Contact 1 Ferrule	Crimp	4 GHz	Brass	50 Ohms	Crimp	Flange	Phosphor Bronze	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Polytetrafluoroethylene (PTFE)	1		0.2 dB
Amphenol RF 112290	Bayonet Lock	Nickel	Silver	500 V	BNC	Gold	Female Socket Jack	500		Solder Cup	4 GHz	Brass	50 Ohms	Solder	Flange	Beryllium Copper		Polytetrafluoroethylene (PTFE)	1	Extended Insulation	0.2 dB
Amphenol RF 112202	Bayonet Lock	Nickel	Silver	500 V	BNC	Gold	Female Socket Jack	500	1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut	Crimp	4 GHz	Brass	50 Ohms	Crimp	Bulkhead - Front Side Nut	Phosphor Bronze	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Polytetrafluoroethylene (PTFE)	1		0.2 dB
Amphenol RF 112205	Bayonet Lock	Nickel	Silver	500 V	BNC	Gold	Female Socket Jack	500	1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut	Crimp	4 GHz	Brass	75 Ohms	Crimp	Bulkhead - Front Side Nut	Phosphor Bronze	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	Polytetrafluoroethylene (PTFE)	1
Amphenol RF 112234	Bayonet Lock	Nickel	Silver	500 V	BNC	Gold	Female Socket Jack	500	1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut 1 Sleeve	Crimp	4 GHz	Brass	50 Ohms	Crimp	Bulkhead - Front Side Nut	Phosphor Bronze	188 188A 316 LMR-100 M17/119-RG174 RG-174	Polyoxymethylene (POM) Acetal	1		0.2 dB
Amphenol RF 112239	Bayonet Lock	Nickel	Silver		BNC	Gold	Female Socket Jack	500		Solder	4 GHz	Brass	75 Ohms	Crimp	Bulkhead - Front Side Nut	Phosphor Bronze	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	Polytetrafluoroethylene (PTFE)	1	Isolated		-65 ░C	165 °C
Amphenol RF 112291	Bayonet Lock	Nickel	Silver	500 V	BNC	Gold	Female Socket Jack	500		Solder Cup	4 GHz	Brass	75 Ohms	Solder	Flange	Phosphor Bronze		Polytetrafluoroethylene (PTFE)	1	Extended Insulation

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 7.20
		10	$ 6.51
		25	$ 6.15
		50	$ 6.00
		100	$ 5.70
		300	$ 5.10
		500	$ 4.80
		1000	$ 4.20
		2500	$ 3.99

Description

General part information

1122 Series

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
