112291

Active

Amphenol RF

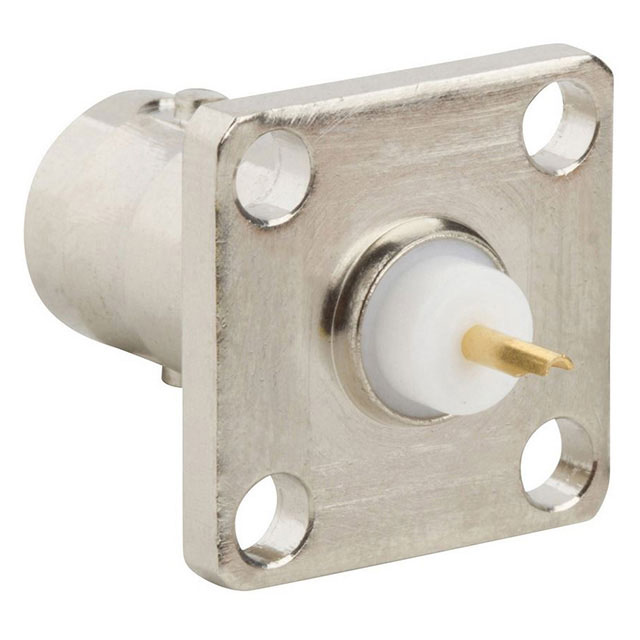

CONNECTOR: BNC; SOCKET; FEMALE; STRAIGHT; 75Ω; SOLDERING; PTFE

Deep-Dive with AI

Search across all available documentation for this part.

112291

Active

Amphenol RF

CONNECTOR: BNC; SOCKET; FEMALE; STRAIGHT; 75Ω; SOLDERING; PTFE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	112291

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Features	Extended Insulation
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	75 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Shield Termination	Solder
Voltage Rating	500 V

1122 Series

Part	Fastening Type	Body Finish	Housing Color	Voltage Rating	Connector Style	Center Contact Plating	Connector Type	Mating Cycles	Includes	Contact Termination	Frequency - Max [Max]	Body Material	Impedance	Shield Termination	Mounting Feature	Center Contact Material	Cable Group	Dielectric Material	Number of Ports	Features	Insertion Loss	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol RF 112289	Bayonet Lock	Nickel	Silver	500 V	BNC	Gold	Female Socket Jack	500	1 Connector 1 Contact 1 Ferrule 1 Sleeve	Crimp	4 GHz	Brass	75 Ohms	Crimp	Flange	Phosphor Bronze	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	Polyoxymethylene (POM) Acetal	1
Amphenol RF 112253	Bayonet Lock	Nickel	Silver	500 V	BNC	Gold	Female Socket Jack	500	Connector Contact Ferrule Lockwasher Nut Sleeve	Crimp	4 GHz	Zinc Die Cast	75 Ohms	Crimp	Bulkhead - Front Side Nut	Phosphor Bronze	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	Polytetrafluoroethylene (PTFE)	1	Isolated
Amphenol RF 112272	Bayonet Lock	Nickel	Silver	500 V	BNC	Gold	Female Socket Jack	500	1 Connector 1 Contact 1 Ferrule	Crimp	4 GHz	Brass	50 Ohms	Crimp	Flange	Phosphor Bronze	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Polytetrafluoroethylene (PTFE)	1		0.2 dB
Amphenol RF 112290	Bayonet Lock	Nickel	Silver	500 V	BNC	Gold	Female Socket Jack	500		Solder Cup	4 GHz	Brass	50 Ohms	Solder	Flange	Beryllium Copper		Polytetrafluoroethylene (PTFE)	1	Extended Insulation	0.2 dB
Amphenol RF 112202	Bayonet Lock	Nickel	Silver	500 V	BNC	Gold	Female Socket Jack	500	1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut	Crimp	4 GHz	Brass	50 Ohms	Crimp	Bulkhead - Front Side Nut	Phosphor Bronze	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Polytetrafluoroethylene (PTFE)	1		0.2 dB
Amphenol RF 112205	Bayonet Lock	Nickel	Silver	500 V	BNC	Gold	Female Socket Jack	500	1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut	Crimp	4 GHz	Brass	75 Ohms	Crimp	Bulkhead - Front Side Nut	Phosphor Bronze	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	Polytetrafluoroethylene (PTFE)	1
Amphenol RF 112234	Bayonet Lock	Nickel	Silver	500 V	BNC	Gold	Female Socket Jack	500	1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut 1 Sleeve	Crimp	4 GHz	Brass	50 Ohms	Crimp	Bulkhead - Front Side Nut	Phosphor Bronze	188 188A 316 LMR-100 M17/119-RG174 RG-174	Polyoxymethylene (POM) Acetal	1		0.2 dB
Amphenol RF 112239	Bayonet Lock	Nickel	Silver		BNC	Gold	Female Socket Jack	500		Solder	4 GHz	Brass	75 Ohms	Crimp	Bulkhead - Front Side Nut	Phosphor Bronze	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	Polytetrafluoroethylene (PTFE)	1	Isolated		-65 ░C	165 °C
Amphenol RF 112291	Bayonet Lock	Nickel	Silver	500 V	BNC	Gold	Female Socket Jack	500		Solder Cup	4 GHz	Brass	75 Ohms	Solder	Flange	Phosphor Bronze		Polytetrafluoroethylene (PTFE)	1	Extended Insulation

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 6.84
		10	$ 6.18
		25	$ 5.84
		50	$ 5.70
		100	$ 5.41
		300	$ 4.84
		500	$ 4.56
		1000	$ 3.99
		2500	$ 3.79
TME	N/A	100	$ 7.29

Description

General part information

1122 Series

BNC Connector Jack, Female Socket 75 Ohms Panel Mount Solder Cup
