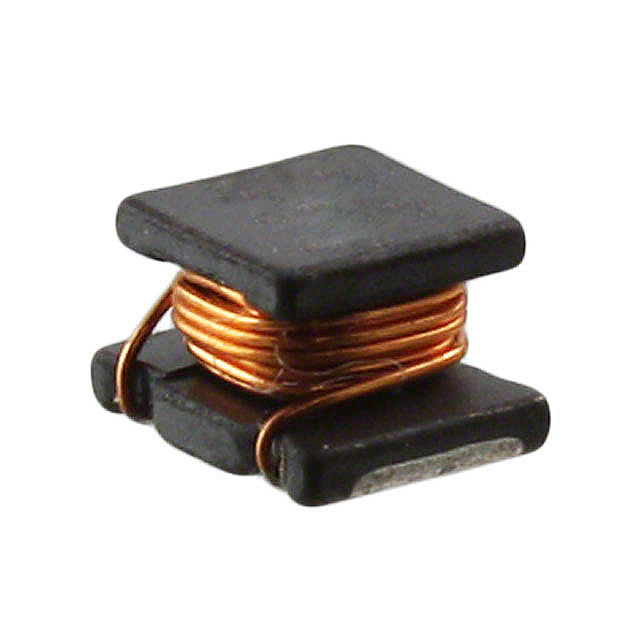

SRN6028-3R9M

Obsolete

Bourns Inc.

INDUCTOR POWER SEMI-SHIELDED WIREWOUND 3.9UH 20% 100KHZ 10Q-FACTOR FERRITE 3A 0.038OHM DCR 2424 T/R

Deep-Dive with AI

Search across all available documentation for this part.

SRN6028-3R9M

Obsolete

Bourns Inc.

INDUCTOR POWER SEMI-SHIELDED WIREWOUND 3.9UH 20% 100KHZ 10Q-FACTOR FERRITE 3A 0.038OHM DCR 2424 T/R

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRN6028-3R9M

Current - Saturation (Isat)	2.7 A
Current Rating (Amps)	3 A
DC Resistance (DCR) [Max]	38 mOhm
Frequency - Self Resonant	35 MHz
Inductance	3.9 µH
Inductance Frequency - Test	100 kHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	2424 (6060 Metric)
Q @ Freq	10, 7.96 MHz
Shielding	Shielded
Size / Dimension [x]	0.236 in
Size / Dimension [x]	6 mm
Size / Dimension [y]	0.236 in
Size / Dimension [y]	6 mm
Supplier Device Package	6028
Tolerance	20 %
Type	Wirewound, Drum Core

SRN6028 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Self Resonant	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Inductance	Shielding	Material - Core	Supplier Device Package	Inductance Frequency - Test	Type	Tolerance	Package / Case	Current Rating (Amps)	Mounting Type	Q @ Freq	Current - Saturation (Isat)	DC Resistance (DCR) [Max]	DC Resistance (DCR)
Bourns Inc. SRN6028-3R9M	125 °C	-40 °C	35 MHz	0.236 in	6 mm	0.236 in	6 mm	3.9 µH	Shielded	Ferrite	6028	100 kHz	Drum Core Wirewound	20 %	2424 (6060 Metric)	3 A	Surface Mount	7.96 MHz 10	2.7 A	38 mOhm
Bourns Inc. SRN6028C-6R2M	125 °C	-40 °C	45 MHz	0.236 in	6 mm	0.236 in	6 mm	6.2 µH	Shielded	Ferrite	6028	100 kHz	Drum Core Wirewound	20 %	2424 (6060 Metric)	2.8 A	Surface Mount	15 100 kHz	3 A		42 mOhm
Bourns Inc. SRN6028C-1R0Y	125 °C	-40 °C	110 MHz	0.236 in	6 mm	0.236 in	6 mm	1 µH	Shielded	Ferrite	6028	100 kHz	Drum Core Wirewound	30 %	2424 (6060 Metric)	5.2 A	Surface Mount	15 100 kHz	5.75 A		10 mOhm
Bourns Inc. SRN6028C-6R0M	125 °C	-40 °C	45 MHz	0.236 in	6 mm	0.236 in	6 mm	6 µH	Shielded	Ferrite	6028	100 kHz	Drum Core Wirewound	20 %	2424 (6060 Metric)	2.8 A	Surface Mount	15 100 kHz	3 A		42 mOhm
Bourns Inc. SRN6028-4R7M	125 °C	-40 °C	34 MHz	0.236 in	6 mm	0.236 in	6 mm	4.7 ÁH	Shielded	Ferrite	6028	100 kHz	Drum Core Wirewound	20 %	2424 (6060 Metric)	3 A	Surface Mount	7.96 MHz 10	2.7 A	38 mOhm
Bourns Inc. SRN6028-1R5Y	125 °C	-40 °C		0.236 in	6 mm	0.236 in	6 mm	1.5 µH	Shielded	Ferrite	6028	100 kHz	Drum Core Wirewound	30 %	2424 (6060 Metric)	4.2 A	Surface Mount	7.96 MHz 12	5.1 A	21 mOhm
Bourns Inc. SRN6028-470M	125 °C	-40 °C	9 MHz	0.236 in	6 mm	0.236 in	6 mm	47 µH	Shielded	Ferrite	6028	100 kHz	Drum Core Wirewound	20 %	2424 (6060 Metric)	920 mA	Surface Mount	2.52 MHz 11	1 A	360 mOhm
Bourns Inc. SRN6028C-121M	125 °C	-40 °C	7 MHz	0.236 in	6 mm	0.236 in	6 mm		Shielded	Ferrite	6028	100 kHz	Drum Core Wirewound	20 %	2424 (6060 Metric)	0.68 A	Surface Mount	20 100 kHz	720 mA		750 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SRN6028 Series

3.9 µH Shielded Drum Core, Wirewound Inductor 3 A 38mOhm Max 2424 (6060 Metric)
