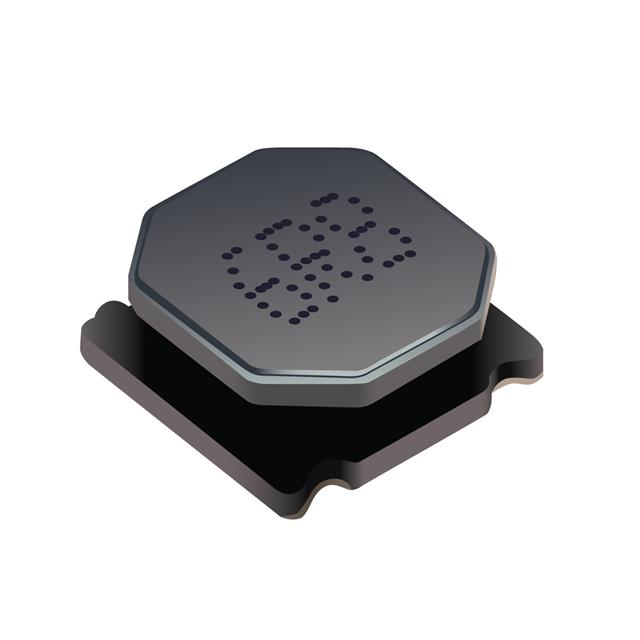

Specification	SRN6028C-121M

Current - Saturation (Isat)	720 mA
Current Rating	0.68 A
DC Resistance (DCR)	750 mOhm
Frequency - Self Resonant	7 MHz
Height - Seated (Max)	0.11 in
Inductance	120 µH
Inductance Frequency - Test	100 kHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Package / Case	2424 (6060 Metric)
Package Name	6028
Q	20
Shielding	Shielded
Size / Dimension Length	0.236 in
Size / Dimension Width	0.236 in
Tolerance	20 %
Type	Drum Core, Wirewound

SRN6028 Series

Part	Current - Saturation (Isat)	Q	Type	Size / Dimension Length	Size / Dimension Width	Tolerance	Operating Temperature (Max)	Operating Temperature (Min)	DC Resistance (DCR) (Max)	Material - Core	Height - Seated (Max)	Inductance Frequency - Test	Package Name	Current Rating	Mounting Type	Frequency - Self Resonant	Inductance	Shielding	Package / Case	DC Resistance (DCR)
Bourns Inc. SRN6028-3R9M	2.7 A	10	Drum Core Wirewound	0.236 in	0.236 in	20 %	125 °C	-40 °C	38 mOhm	Ferrite	0.11 in	100 kHz	6028	3 A	Surface Mount	35 MHz	3.9 µH	Shielded	2424 (6060 Metric)
Bourns Inc. SRN6028C-6R2M	3 A	15	Drum Core Wirewound	0.236 in	0.236 in	20 %	125 °C	-40 °C		Ferrite	0.11 in	100 kHz	6028	2.8 A	Surface Mount	45 MHz	6.2 µH	Shielded	2424 (6060 Metric)	42 mOhms
Bourns Inc. SRN6028C-1R0Y	5.75 A	15	Drum Core Wirewound	0.236 in	0.236 in	30 %	125 °C	-40 °C		Ferrite	0.11 in	100 kHz	6028	5.2 A	Surface Mount	110 MHz	1 µH	Shielded	2424 (6060 Metric)	10 mOhm
Bourns Inc. SRN6028C-6R0M	3 A	15	Drum Core Wirewound	0.236 in	0.236 in	20 %	125 °C	-40 °C		Ferrite	0.11 in	100 kHz	6028	2.8 A	Surface Mount	45 MHz	6 µH	Shielded	2424 (6060 Metric)	42 mOhms
Bourns Inc. SRN6028-4R7M	2.7 A	10	Drum Core Wirewound	0.236 in	0.236 in	20 %	125 °C	-40 °C	38 mOhm	Ferrite	0.11 in	100 kHz	6028	3 A	Surface Mount	34 MHz	4.7 µH	Shielded	2424 (6060 Metric)
Bourns Inc. SRN6028-6R0M	2.5 A	10	Drum Core Wirewound	0.236 in	0.236 in	20 %	125 °C	-40 °C	48 mOhm	Ferrite	0.11 in	100 kHz	6028	2.5 A	Surface Mount	28 MHz	6 µH	Shielded	2424 (6060 Metric)
Bourns Inc. SRN6028-1R5Y	5.1 A	12	Drum Core Wirewound	0.236 in	0.236 in	30 %	125 °C	-40 °C	21 mOhm	Ferrite	0.11 in	100 kHz	6028	4.2 A	Surface Mount	70 MHz	1.5 µH	Shielded	2424 (6060 Metric)
Bourns Inc. SRN6028-470M	1 A	11	Drum Core Wirewound	0.236 in	0.236 in	20 %	125 °C	-40 °C	360 mOhm	Ferrite	0.11 in	100 kHz	6028	0.92 A	Surface Mount	9 MHz	47 µH	Shielded	2424 (6060 Metric)
Bourns Inc. SRN6028C-121M	720 mA	20	Drum Core Wirewound	0.236 in	0.236 in	20 %	125 °C	-40 °C		Ferrite	0.11 in	100 kHz	6028	0.68 A	Surface Mount	7 MHz	120 µH	Shielded	2424 (6060 Metric)	750 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Technical Data Sheet EN

SRN6028C-121M | Datasheet
