FI-SEB20P-HFE-E3000
ActiveJAE Electronics

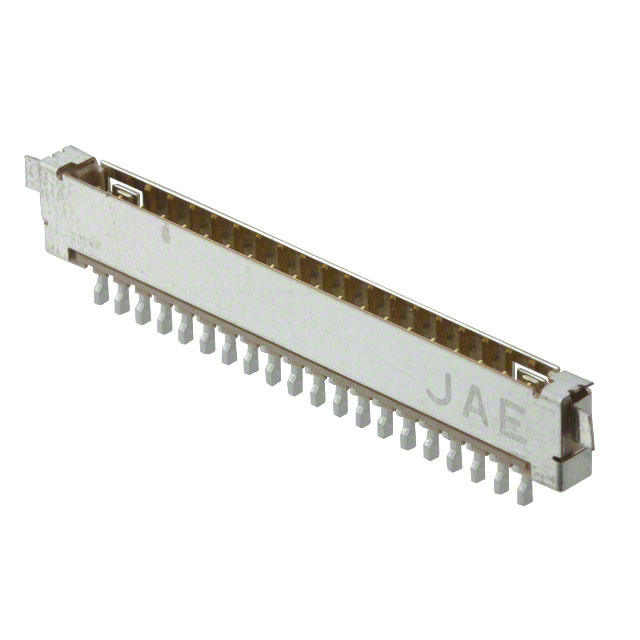

CONN HEADER BRD EDGE 20P 1.25MM
Deep-Dive with AI
Search across all available documentation for this part.
FI-SEB20P-HFE-E3000
ActiveJAE Electronics
CONN HEADER BRD EDGE 20P 1.25MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FI-SEB20P-HFE-E3000 |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin or Tin-Alloy |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 1 A |
| Fastening Type | Friction Lock |
| Features | Solder Retention, Shielded |
| Insulation Color | Beige |
| Insulation Height | 1.95 mm |
| Insulation Height | 0.077 in |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Board Edge, Cutout, Surface Mount, Right Angle |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 1.25 mm |
| Pitch - Mating | 0.049 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 7.55 | |
Description
General part information
FI-SEB20 Series
Connector Header Board Edge, Cutout; Surface Mount, Right Angle 20 position 0.049" (1.25mm)
