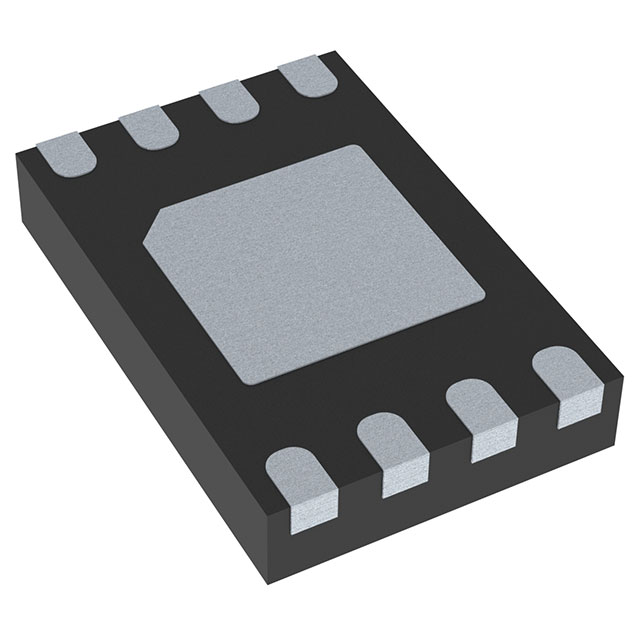

M95160-DFMC6TG
Active16-KBIT SPI BUS EEPROM WITH HIGH-SPEED CLOCK
Deep-Dive with AI
Search across all available documentation for this part.
M95160-DFMC6TG
Active16-KBIT SPI BUS EEPROM WITH HIGH-SPEED CLOCK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M95160-DFMC6TG | M95160 Series |
|---|---|---|
| Clock Frequency | 20 MHz | 10 - 20 MHz |
| Grade | - | Automotive |
| Memory Format | EEPROM | EEPROM |
| Memory Interface | SPI | SPI |
| Memory Organization | 2K x 8 | 2K x 8 |
| Memory Size | 2 KB | 2 KB |
| Memory Type | Non-Volatile | Non-Volatile |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 85 - 145 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 8-UFDFN Exposed Pad | 8-TSSOP (0.173", 4.40mm Width), 8-UFDFN Exposed Pad, 8-SOIC |
| Package / Case | - | 3.9 mm |
| Qualification | - | AEC-Q100 |
| Supplier Device Package | 8-UFDFPN (2x3) | 8-TSSOP, 8-UFDFPN (2x3), 8-SO, 8-SOIC |
| Technology | EEPROM | EEPROM |
| Voltage - Supply [Max] | 5.5 V | 5.5 V |
| Voltage - Supply [Min] | 1.7 V | 1.7 - 2.5 V |
| Write Cycle Time - Word, Page | 5 ms | 4 - 5 ms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Avnet Americas | Reel | 5000 | $ 0.17 | |
| 10000 | $ 0.17 | |||
| 20000 | $ 0.17 | |||
| 30000 | $ 0.16 | |||
| 40000 | $ 0.16 | |||
| DigiKey | Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | 1 | $ 0.55 | |
| 10 | $ 0.48 | |||
| 25 | $ 0.46 | |||
| 50 | $ 0.45 | |||
| 100 | $ 0.43 | |||
| 250 | $ 0.41 | |||
| 500 | $ 0.40 | |||
| 1000 | $ 0.38 | |||
| 5000 | $ 0.35 | |||
| 10000 | $ 0.34 | |||
| 15000 | $ 0.33 | |||
| 25000 | $ 0.32 | |||
| Digikey | Cut Tape (CT) | 1 | $ 0.45 | |
| 10 | $ 0.42 | |||
| 25 | $ 0.41 | |||
| 50 | $ 0.40 | |||
| 100 | $ 0.39 | |||
| 250 | $ 0.38 | |||
| 500 | $ 0.37 | |||
| 1000 | $ 0.36 | |||
| Digi-Reel® | 1 | $ 0.45 | ||
| 10 | $ 0.42 | |||
| 25 | $ 0.41 | |||
| 50 | $ 0.40 | |||
| 100 | $ 0.39 | |||
| 250 | $ 0.38 | |||
| 500 | $ 0.37 | |||
| 1000 | $ 0.36 | |||
| Tape & Reel (TR) | 5000 | $ 0.35 | ||
| 10000 | $ 0.34 | |||
| 15000 | $ 0.34 | |||
| 25000 | $ 0.33 | |||
| Future Electronics | Cut Tape/Mini-Reel | 1 | $ 0.20 | |
| 20 | $ 0.18 | |||
| 100 | $ 0.18 | |||
| 500 | $ 0.17 | |||
| 2500 | $ 0.16 | |||
| Reel | 5000 | $ 0.15 | ||
| 5000 | $ 0.15 | |||
| 10000 | $ 0.15 | |||
| 10000 | $ 0.15 | |||
| 15000 | $ 0.15 | |||
| 15000 | $ 0.15 | |||
| 20000 | $ 0.15 | |||
| 20000 | $ 0.15 | |||
| 25000 | $ 0.14 | |||
| 25000 | $ 0.14 | |||
| Mouser Electronics | N/A | 1 | $ 0.35 | |
| 10 | $ 0.32 | |||
| 100 | $ 0.28 | |||
| 500 | $ 0.28 | |||
| 5000 | $ 0.28 | |||
M95160 Series
Automotive 16-Kbit SPI bus EEPROM with high speed clock
| Part | Memory Format | Memory Type | Clock Frequency | Mounting Type | Memory Interface | Memory Organization | Voltage - Supply [Min] | Voltage - Supply [Max] | Write Cycle Time - Word, Page | Memory Size | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Technology | Package / Case | Package / Case | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics M95160-WDW6TP | EEPROM | Non-Volatile | 10 MHz | Surface Mount | SPI | 2K x 8 | 2.5 V | 5.5 V | 5 ms | 2 KB | 8-TSSOP | 85 °C | -40 °C | EEPROM | 8-TSSOP (0.173", 4.40mm Width) | |||
STMicroelectronics M95160-DFMC6TG | EEPROM | Non-Volatile | 20 MHz | Surface Mount | SPI | 2K x 8 | 1.7 V | 5.5 V | 5 ms | 2 KB | 8-UFDFPN (2x3) | 85 °C | -40 °C | EEPROM | 8-UFDFN Exposed Pad | |||
STMicroelectronics M95160-DRMN8TP/K | EEPROM | Non-Volatile | 20 MHz | Surface Mount | SPI | 2K x 8 | 1.8 V | 5.5 V | 4 ms | 2 KB | 8-SO | 105 °C | -40 °C | EEPROM | 8-SOIC | 3.9 mm | AEC-Q100 | Automotive |
STMicroelectronics M95160-DRDW3TP/K | EEPROM | Non-Volatile | 20 MHz | Surface Mount | SPI | 2K x 8 | 1.8 V | 5.5 V | 4 ms | 2 KB | 8-TSSOP | 125 °C | -40 °C | EEPROM | 8-TSSOP (0.173", 4.40mm Width) | AEC-Q100 | Automotive | |
STMicroelectronics M95160-DWDW4TP/K | EEPROM | Non-Volatile | 20 MHz | Surface Mount | SPI | 2K x 8 | 2.5 V | 5.5 V | 4 ms | 2 KB | 8-TSSOP | 145 °C | -40 °C | EEPROM | 8-TSSOP (0.173", 4.40mm Width) | AEC-Q100 | Automotive | |
STMicroelectronics M95160-WMN6 | EEPROM | Non-Volatile | 10 MHz | Surface Mount | SPI | 2K x 8 | 2.5 V | 5.5 V | 5 ms | 2 KB | 8-SOIC | 85 °C | -40 °C | EEPROM | 8-SOIC | 3.9 mm | ||
STMicroelectronics M95160-RMN6P | EEPROM | Non-Volatile | 10 MHz | Surface Mount | SPI | 2K x 8 | 1.8 V | 5.5 V | 5 ms | 2 KB | 8-SOIC | 85 °C | -40 °C | EEPROM | 8-SOIC | 3.9 mm | ||
STMicroelectronics M95160-DFDW6TP | EEPROM | Non-Volatile | 20 MHz | Surface Mount | SPI | 2K x 8 | 1.7 V | 5.5 V | 5 ms | 2 KB | 8-TSSOP | 85 °C | -40 °C | EEPROM | 8-TSSOP (0.173", 4.40mm Width) | |||
STMicroelectronics M95160-WMN6TP | EEPROM | Non-Volatile | 10 MHz | Surface Mount | SPI | 2K x 8 | 2.5 V | 5.5 V | 5 ms | 2 KB | 8-SOIC | 85 °C | -40 °C | EEPROM | 8-SOIC | 3.9 mm |
Description
General part information
M95160 Series
The M95160-A125 and M95160-A145 are 16-Kbit serial EEPROM automotive grade devices operating up to 145 °C. They are compliant with the very high level of reliability defined by the automotive standard AEC-Q100 grade 0.
The devices are accessed by a simple serial SPI compatible interface running up to 20 MHz.
The memory array is based on advanced true EEPROM technology (Electrically Erasable PROgrammable Memory). The M95160-A125 and M95160-A145 are byte-alterable memories (2048 × 8 bits) organized as 64 pages of 32 byte in which the data integrity is significantly improved with an embedded Error Correction Code logic.
