Technical Specifications
Parameters and characteristics for this part
| Specification | M95160-DRMN8TP/K |
|---|---|
| Clock Frequency | 20 MHz |
| Grade | Automotive |
| Memory Format | EEPROM |
| Memory Interface | SPI |
| Memory Organization | 2K x 8 |
| Memory Size | 2 KB |
| Memory Type | Non-Volatile |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 3.9 mm |

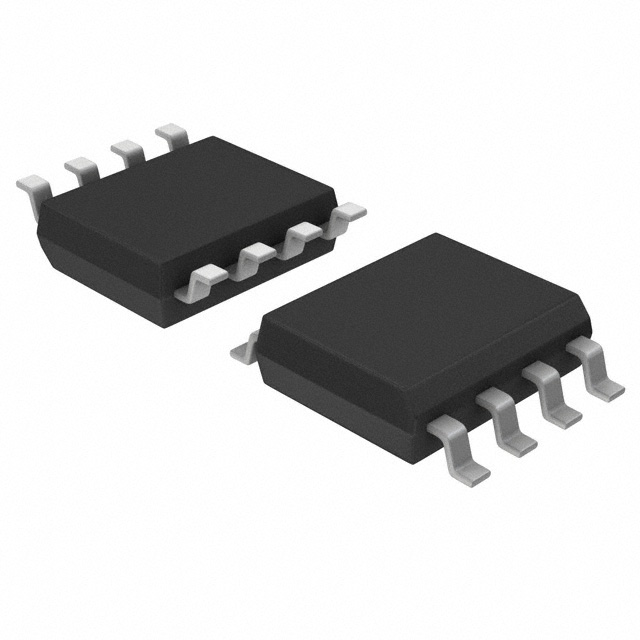

| Package / Case | 8-SOIC |
| Qualification | AEC-Q100 |
| Supplier Device Package | 8-SO |
| Technology | EEPROM |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 1.8 V |
| Write Cycle Time - Word, Page | 4 ms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.53 | |
| 10 | $ 0.52 | |||
| 25 | $ 0.49 | |||
| 50 | $ 0.48 | |||
| 100 | $ 0.43 | |||
| 250 | $ 0.42 | |||
| 500 | $ 0.42 | |||
| 1000 | $ 0.41 | |||
| Digi-Reel® | 1 | $ 0.53 | ||
| 10 | $ 0.52 | |||
| 25 | $ 0.49 | |||
| 50 | $ 0.48 | |||
| 100 | $ 0.43 | |||
| 250 | $ 0.42 | |||
| 500 | $ 0.42 | |||
| 1000 | $ 0.41 | |||
| Tape & Reel (TR) | 2500 | $ 0.40 | ||
| 5000 | $ 0.36 | |||
| 12500 | $ 0.36 | |||
| 25000 | $ 0.35 | |||
M95160-DRE Series
16-Kbit serial SPI bus EEPROM with high speed clock 105°C operation
| Part | Memory Organization | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Package / Case | Memory Format | Memory Size | Qualification | Technology | Memory Type | Write Cycle Time - Word, Page | Supplier Device Package | Memory Interface | Clock Frequency | Grade | Mounting Type | Voltage - Supply [Min] | Voltage - Supply [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics M95160-DRMN8TP/K | 2K x 8 | 105 °C | -40 °C | 3.9 mm | 8-SOIC | EEPROM | 2 KB | AEC-Q100 | EEPROM | Non-Volatile | 4 ms | 8-SO | SPI | 20 MHz | Automotive | Surface Mount | 1.8 V | 5.5 V |
Description
General part information
M95160-DRE Series
The M95160-DRE is a 16-Kbit serial EEPROM device operating up to 105 °C. The M95160-DRE is compliant with the level of reliability defined by the AEC-Q100 grade 2.
The device is accessed by a simple serial SPI compatible interface running up to 20 MHz.
The memory array is based on advanced true EEPROM technology (Electrically Erasable PROgrammable Memory). The M95160-DRE is a byte-alterable memory (2048 × 8 bits) organized as 64 pages of 32 bytes in which the data integrity is significantly improved with an embedded Error Correction Code logic.
