THVD1454EVM
ActiveEVAL BOARD FOR THVD1454
THVD1454EVM
ActiveEVAL BOARD FOR THVD1454
Description
General part information
THVD1454 Series
The bus pins are immune to high levels of IEC Contact Discharge ESD events, eliminating the need for additional system level protection components. The device operates from a single 3-V to 5.5-V supply. The wide common-mode voltage range and low input leakage on bus pins makes the device suitable for multi-point applications over long cable runs.

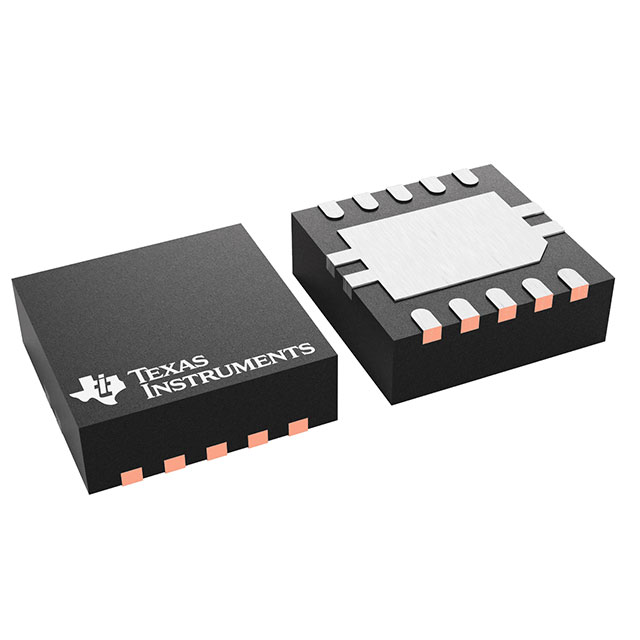

THVD1454 is available in space-saving thermally efficient 10-VSON package (3 mm x 3 mm). The device is characterized for ambient temperature from –40°C to 125°C.
The bus pins are immune to high levels of IEC Contact Discharge ESD events, eliminating the need for additional system level protection components. The device operates from a single 3-V to 5.5-V supply. The wide common-mode voltage range and low input leakage on bus pins makes the device suitable for multi-point applications over long cable runs.
Technical Specifications
Parameters and characteristics for this part
| Specification | THVD1454EVM |
|---|---|
| Contents | Board |
| Embedded | No |
| Function | RS-485, Transceiver |
| Primary Attributes - Input Voltage (Max) | 5 V |
| Primary Attributes - Input Voltage (Min) | 3.3 V |
| Secondary Attributes | On-Board LEDs |
| Supplied Contents | Board(s) |
| Type | Interface |
| Utilized IC / Part | THVD1454 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
