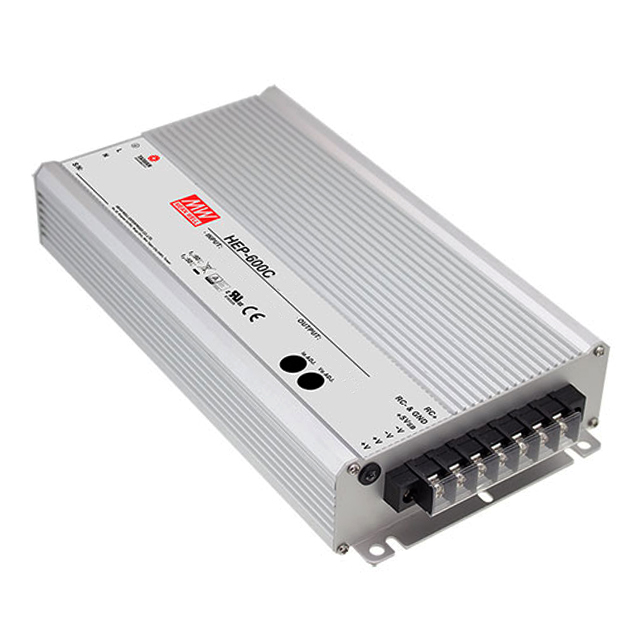

HEP-600C-48

Active

MEAN WELL USA Inc.

BATT CHRGR ENCLOSED 57.6V 10.5A

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

BATT CHRGR ENCLOSED 57.6V 10.5A

Technical Specifications

Parameters and characteristics for this part

Part	Applications	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	Power (Watts)	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Features	Mounting Type	Type	Number of Outputs	Current - Output 1 [custom]	Voltage - Isolation	Approval Agency	Current - Output 1	Battery Cell Size	Termination Style	Power - Max [Max]	Voltage - Nominal	Number of Cells	Charge Current - Max [Max]	Weight	Operating Temperature [Min]	Operating Temperature [Max]	Battery Chemistry
MEAN WELL USA Inc. HEP-600-20	ITE (Commercial)	20 V	90 VAC 127 VDC	305 VAC 431 VDC	95 %	560 W	1.91 in	48.5 mm	144 mm	280 mm	5.67 in	11.02 in	Adjustable Output PFC	Chassis Mount	Enclosed	1	28 A	3750 V	CB CE cURus TUV
MEAN WELL USA Inc. HEP-600-24	ITE (Commercial)	24 V	90 VAC 127 VDC	305 VAC 431 VDC	95 %	600 W	1.91 in	48.5 mm	144 mm	280 mm	5.67 in	11.02 in	Adjustable Output PFC	Chassis Mount	Enclosed	1		3750 V	CB CE cURus TUV	25 A
MEAN WELL USA Inc. HEP-600C-48			90 VAC 127 VDC	305 VAC 431 VDC			1.91 in	48.5 mm	144 mm	280 mm	5.67 in	11.02 in	LED Indicator	Chassis Mount	Enclosed				CB CE cURus TUV		48 V	Screw Terminal	600 W	57.6 V	1	10.5 A	3900 g	-40 °C	70 °C	Lead Acid Lithium-Ion

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed Battery Charger 57.6V 10.5A 48V
