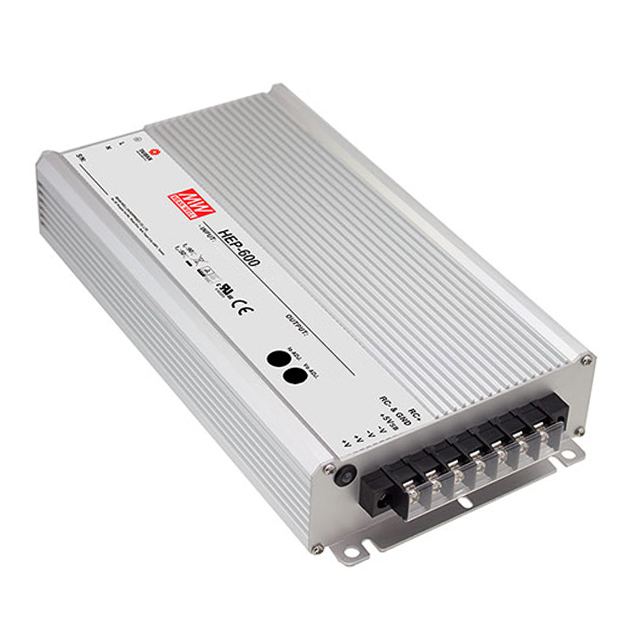

HEP-600-20

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 20V 560W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 20V 560W

Technical Specifications

Parameters and characteristics for this part

Part	Applications	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	Power (Watts)	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Features	Mounting Type	Type	Number of Outputs	Current - Output 1 [custom]	Voltage - Isolation	Approval Agency	Current - Output 1	Battery Cell Size	Termination Style	Power - Max [Max]	Voltage - Nominal	Number of Cells	Charge Current - Max [Max]	Weight	Operating Temperature [Min]	Operating Temperature [Max]	Battery Chemistry
MEAN WELL USA Inc. HEP-600-20	ITE (Commercial)	20 V	90 VAC 127 VDC	305 VAC 431 VDC	95 %	560 W	1.91 in	48.5 mm	144 mm	280 mm	5.67 in	11.02 in	Adjustable Output PFC	Chassis Mount	Enclosed	1	28 A	3750 V	CB CE cURus TUV
MEAN WELL USA Inc. HEP-600-24	ITE (Commercial)	24 V	90 VAC 127 VDC	305 VAC 431 VDC	95 %	600 W	1.91 in	48.5 mm	144 mm	280 mm	5.67 in	11.02 in	Adjustable Output PFC	Chassis Mount	Enclosed	1		3750 V	CB CE cURus TUV	25 A
MEAN WELL USA Inc. HEP-600C-48			90 VAC 127 VDC	305 VAC 431 VDC			1.91 in	48.5 mm	144 mm	280 mm	5.67 in	11.02 in	LED Indicator	Chassis Mount	Enclosed				CB CE cURus TUV		48 V	Screw Terminal	600 W	57.6 V	1	10.5 A	3900 g	-40 °C	70 °C	Lead Acid Lithium-Ion

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 20V 90 ~ 305 VAC, 127 ~ 431 VDC Input
