LCBS-2-5-19

Active

Essentra Access Solutions

PCB SUPPORT,TOP HL:LOCK BAYONET

Deep-Dive with AI

Search across all available documentation for this part.

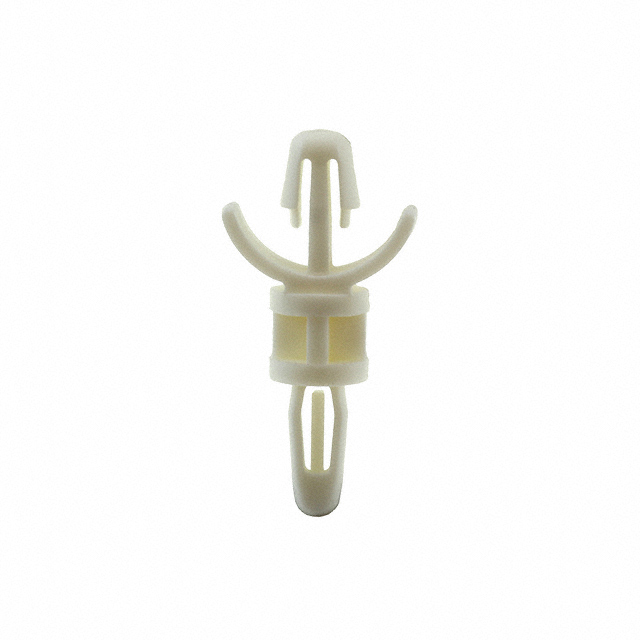

LCBS-2-5-19

Active

Essentra Access Solutions

PCB SUPPORT,TOP HL:LOCK BAYONET

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LCBS-2-5-19

Holding Type	Snap Lock
Material	Nylon
Mounting Hole Diameter [diameter]	0.187 in
Mounting Hole Diameter [diameter]	4.75 mm
Mounting Hole Diameter [diameter]	3 in
Mounting Panel Thickness [Max]	1.98 mm
Mounting Panel Thickness [Max]	0.078 "
Mounting Panel Thickness [Min]	0.79 mm
Mounting Panel Thickness [Min]	0.031 in
Mounting Type	Snap Lock
Support Hole Diameter [diameter]	0.157 "
Support Hole Diameter [diameter]	3.99 mm

LCBS-2 Series

Part	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Between Board Height	Between Board Height	Between Board Height	Holding Type	Material	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Min]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Length - Overall [x]	Length - Overall	Between Board Height	Mounting Type	Features	Length - Overall [x]
Essentra Access Solutions LCBS-2-18-19	0.187 in	4.75 mm	3 in	0.0625 "	0.062 "	1.57 mm	28.58 mm	1 1/8	1.125 in	Arrowhead Snap Lock	Nylon Flame Retardant	0.141 in	3.58 mm	0.078 in	1.98 mm	0.15625 in	3.96 mm	0.156 in
Essentra Access Solutions LCBS-2-8-01	0.187 in	4.75 mm	3 in	0.0625 "	0.062 "	1.57 mm	12.7 mm		0.5 in	Snap Lock	Nylon	0.141 in	3.58 mm	0.078 in	1.98 mm		3.99 mm	0.157 "	1.303 in	33.1 mm	0.5 in	Snap Lock	Winged
Essentra Access Solutions LCBS-2-14-01	0.187 in	4.75 mm	3 in	0.0625 "	0.062 "	1.57 mm	0.875 in		0.875 in	Snap Lock	Nylon	0.141 in	3.58 mm	0.078 in	1.98 mm		3.99 mm	0.157 "	1.677 in		22.23 mm	Snap Lock	Winged	42.6 mm
Essentra Access Solutions LCBS-2-14-19	0.187 in	4.75 mm	3 in	0.0625 "	0.062 "	1.57 mm	0.875 in		0.875 in	Arrowhead Snap Lock	Nylon Flame Retardant	0.141 in	3.58 mm	0.078 in	1.98 mm	0.15625 in	3.96 mm	0.156 in			22.23 mm
Essentra Access Solutions LCBS-2-5-01	0.187 in	4.75 mm	3 in	0.0625 "	0.062 "	1.57 mm	7.95 mm		0.313 "	Snap Lock	Nylon	0.141 in	3.58 mm	0.078 in	1.98 mm		3.99 mm	0.157 "	1.114 in		0.3125 in	Snap Lock	Winged	28.3 mm
Essentra Access Solutions LCBS-2-4-19	0.187 in	4.75 mm	3 in	0.0625 "	0.062 "	1.57 mm	6.35 mm		0.25 in	Arrowhead Snap Lock	Nylon Flame Retardant	0.141 in	3.58 mm	0.078 in	1.98 mm	0.15625 in	3.96 mm	0.156 in			0.25 in
Essentra Access Solutions LCBS-2-5-19	0.187 in	4.75 mm	3 in							Snap Lock	Nylon	0.078 "	1.98 mm	0.031 in	0.79 mm		3.99 mm	0.157 "				Snap Lock
Essentra Access Solutions LCBS-2-3-01	0.187 in	4.75 mm	3 in	0.0625 "	0.062 "	1.57 mm	4.78 mm		0.188 "	Snap Lock	Nylon	0.141 in	3.58 mm	0.078 in	1.98 mm		3.99 mm	0.157 "			0.1875 "	Snap Lock	Winged

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.40
		5	$ 0.35
		10	$ 0.29
		25	$ 0.27
		50	$ 0.26
		100	$ 0.23
		250	$ 0.22
		500	$ 0.21
		1000	$ 0.20

Description

General part information

LCBS-2 Series

Board Support Snap Lock / Snap Lock Nylon

Documents

Technical documentation and resources

No documents available
