LCBS-2-18-19

Active

Essentra Access Solutions

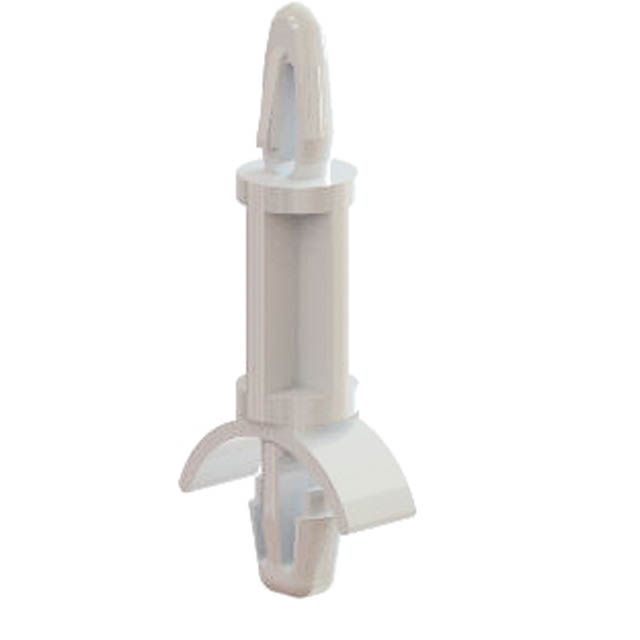

CBS LOCKING FR NYLON 1 1/8"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LCBS-2-18-19

Active

Essentra Access Solutions

CBS LOCKING FR NYLON 1 1/8"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LCBS-2-18-19

Between Board Height	28.58 mm
Between Board Height	1 1/8
Between Board Height	1.125 in
Holding Type	Arrowhead, Snap Lock
Material	Nylon, Flame Retardant
Mounting Hole Diameter [diameter]	0.187 in
Mounting Hole Diameter [diameter]	4.75 mm
Mounting Hole Diameter [diameter]	3 in
Mounting Panel Thickness [Max]	0.141 in
Mounting Panel Thickness [Max]	3.58 mm
Mounting Panel Thickness [Min]	0.078 in
Mounting Panel Thickness [Min]	1.98 mm
Support Hole Diameter [diameter]	0.15625 in
Support Hole Diameter [diameter]	3.96 mm
Support Hole Diameter [diameter]	0.156 in
Support Panel Thickness	0.0625 "
Support Panel Thickness	0.062 "
Support Panel Thickness	1.57 mm

LCBS-2 Series

Part	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Between Board Height	Between Board Height	Between Board Height	Holding Type	Material	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Min]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Length - Overall [x]	Length - Overall	Between Board Height	Mounting Type	Features	Length - Overall [x]
Essentra Access Solutions LCBS-2-18-19	0.187 in	4.75 mm	3 in	0.0625 "	0.062 "	1.57 mm	28.58 mm	1 1/8	1.125 in	Arrowhead Snap Lock	Nylon Flame Retardant	0.141 in	3.58 mm	0.078 in	1.98 mm	0.15625 in	3.96 mm	0.156 in
Essentra Access Solutions LCBS-2-8-01	0.187 in	4.75 mm	3 in	0.0625 "	0.062 "	1.57 mm	12.7 mm		0.5 in	Snap Lock	Nylon	0.141 in	3.58 mm	0.078 in	1.98 mm		3.99 mm	0.157 "	1.303 in	33.1 mm	0.5 in	Snap Lock	Winged
Essentra Access Solutions LCBS-2-14-01	0.187 in	4.75 mm	3 in	0.0625 "	0.062 "	1.57 mm	0.875 in		0.875 in	Snap Lock	Nylon	0.141 in	3.58 mm	0.078 in	1.98 mm		3.99 mm	0.157 "	1.677 in		22.23 mm	Snap Lock	Winged	42.6 mm
Essentra Access Solutions LCBS-2-14-19	0.187 in	4.75 mm	3 in	0.0625 "	0.062 "	1.57 mm	0.875 in		0.875 in	Arrowhead Snap Lock	Nylon Flame Retardant	0.141 in	3.58 mm	0.078 in	1.98 mm	0.15625 in	3.96 mm	0.156 in			22.23 mm
Essentra Access Solutions LCBS-2-5-01	0.187 in	4.75 mm	3 in	0.0625 "	0.062 "	1.57 mm	7.95 mm		0.313 "	Snap Lock	Nylon	0.141 in	3.58 mm	0.078 in	1.98 mm		3.99 mm	0.157 "	1.114 in		0.3125 in	Snap Lock	Winged	28.3 mm
Essentra Access Solutions LCBS-2-4-19	0.187 in	4.75 mm	3 in	0.0625 "	0.062 "	1.57 mm	6.35 mm		0.25 in	Arrowhead Snap Lock	Nylon Flame Retardant	0.141 in	3.58 mm	0.078 in	1.98 mm	0.15625 in	3.96 mm	0.156 in			0.25 in
Essentra Access Solutions LCBS-2-5-19	0.187 in	4.75 mm	3 in							Snap Lock	Nylon	0.078 "	1.98 mm	0.031 in	0.79 mm		3.99 mm	0.157 "				Snap Lock
Essentra Access Solutions LCBS-2-3-01	0.187 in	4.75 mm	3 in	0.0625 "	0.062 "	1.57 mm	4.78 mm		0.188 "	Snap Lock	Nylon	0.141 in	3.58 mm	0.078 in	1.98 mm		3.99 mm	0.157 "			0.1875 "	Snap Lock	Winged

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.65
		5	$ 0.54
		10	$ 0.48
		25	$ 0.43
		50	$ 0.39
		100	$ 0.38

Description

General part information

LCBS-2 Series

Board Support Arrowhead, Snap Lock / Nylon, Flame Retardant 1.125" (28.58mm) 1 1/8"
