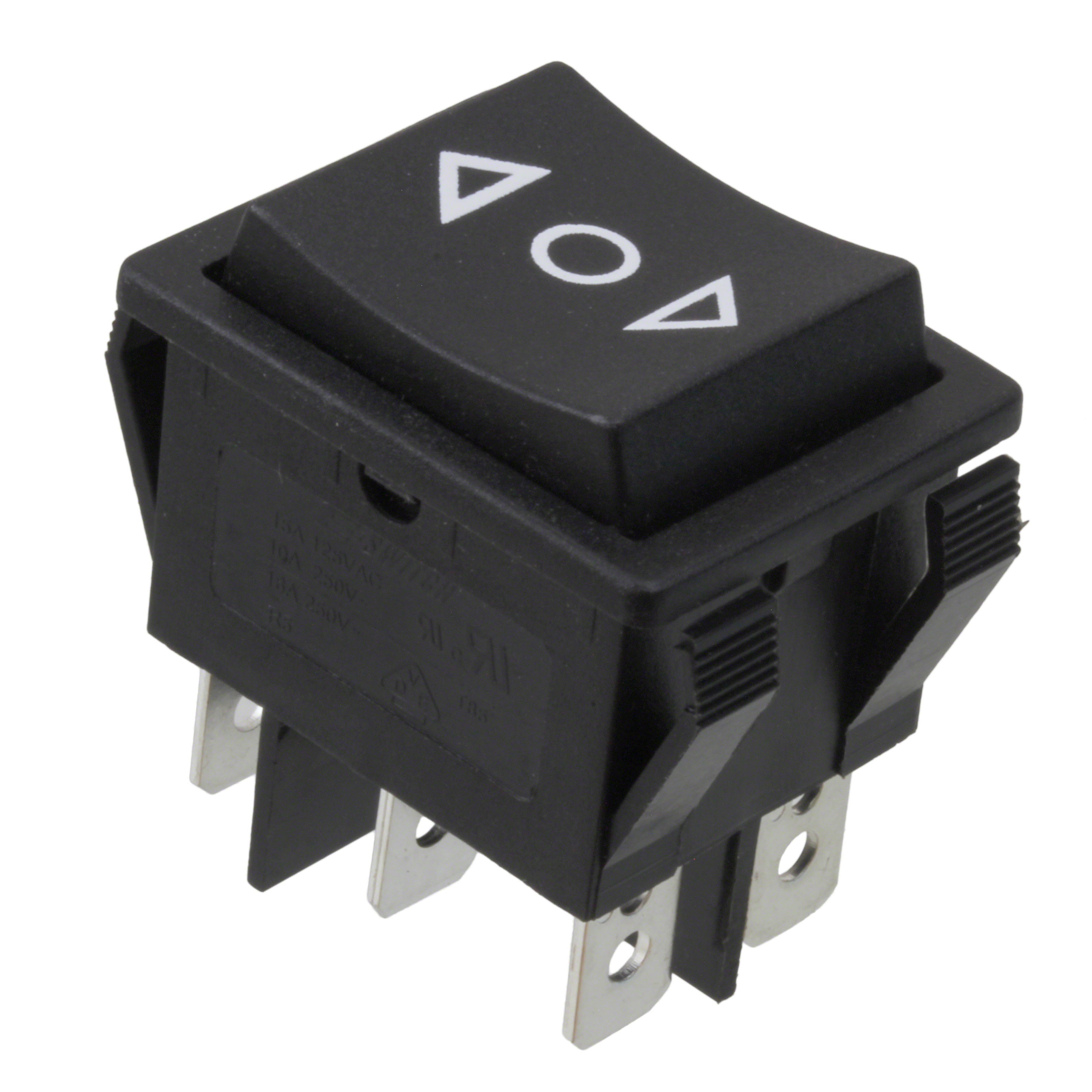

R5GBLKBLKHF0

Active

E-Switch

SWITCH ROCKER DPDT 15A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R5GBLKBLKHF0

Actuator Marking	Triangular Arrows with O
Actuator Type	Concave (Curved)
Approval Agency	CSA, UL
Circuit	DPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	15 A
Electrical Life	10000 Cycles
Mechanical Life	30000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [x]	30 mm
Panel Cutout Dimensions [y]	22.2 mm
Switch Function	Mom-Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

R5ABLKRE Series

Part	Mounting Type	Electrical Life	Switch Function	Illumination Voltage (Nominal)	Actuator Type	Approval Agency	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Marking	Illumination Type, Color	Termination Style	Mechanical Life	Color - Actuator/Cap	Circuit	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Current Rating (Amps)
E-Switch R5BBLKGRNFF1	Panel Mount Snap-In	10000 Cycles	On-Off	125 VAC	Concave (Curved) - Illuminated	CSA UL	125 V	55 °C	-20 C	O -	Green Neon	Quick Connect - 0.250" (6.3mm)	30000 Steps	Green	DPST	30 mm	22.2 mm	20 A
E-Switch R5BBLKGRNAF1	Panel Mount Snap-In	10000 Cycles	On-Off	125 VAC	Concave (Curved) - Illuminated	CSA UL	125 V	55 °C	-20 C	Dot	Green Neon	Quick Connect - 0.250" (6.3mm)	30000 Steps	Green	DPST	30 mm	22.2 mm	20 A
E-Switch R5GBLKBLKEF0	Panel Mount Snap-In	10000 Cycles	Mom-Off-Mom		Concave (Curved)	CSA UL	125 V	55 °C	-20 C	No Marking		Quick Connect - 0.250" (6.3mm)	30000 Steps	Black	DPDT	30 mm	22.2 mm	15 A
E-Switch R5BBLKGRNEF1	Panel Mount Snap-In	10000 Cycles	On-Off	125 VAC	Concave (Curved) - Illuminated	CSA UL	125 V	55 °C	-20 C	No Marking	Green Neon	Quick Connect - 0.250" (6.3mm)	30000 Steps	Green	DPST	30 mm	22.2 mm	20 A
E-Switch R5ABLKREDFF0	Panel Mount Snap-In	10000 Cycles	On-Off		Concave (Curved)	CSA UL	125 V	55 °C	-20 C	O -		Quick Connect - 0.250" (6.3mm)	30000 Steps	Red	DPST	30 mm	22.2 mm	20 A
E-Switch R5CBLKBLKGF0	Panel Mount Snap-In	10000 Cycles	On-On		Concave (Curved)	CSA UL	125 V	55 °C	-20 C	O I		Quick Connect - 0.250" (6.3mm)	30000 Steps	Black	DPDT	30 mm	22.2 mm	20 A
E-Switch R5GBLKBLKHF0	Panel Mount Snap-In	10000 Cycles	Mom-Off-Mom		Concave (Curved)	CSA UL	125 V	55 °C	-20 C	Triangular Arrows with O		Quick Connect - 0.250" (6.3mm)	30000 Steps	Black	DPDT	30 mm	22.2 mm	15 A
E-Switch R5BBLKGRNGF1	Panel Mount Snap-In	10000 Cycles	On-Off	125 VAC	Concave (Curved) - Illuminated	CSA UL	125 V	55 °C	-20 C	O I	Green Neon	Quick Connect - 0.250" (6.3mm)	30000 Steps	Green	DPST	30 mm	22.2 mm	20 A
E-Switch R5BBLKGRNFF2	Panel Mount Snap-In	10000 Cycles	On-Off	250 VAC	Concave (Curved) - Illuminated	CSA UL	125 V	55 °C	-20 C	O -	Green Neon	Quick Connect - 0.250" (6.3mm)	30000 Steps	Green	DPST	30 mm	22.2 mm	20 A
E-Switch R5CBLKBLKIF0	Panel Mount Snap-In	10000 Cycles	On-On		Concave (Curved)	CSA UL	125 V	55 °C	-20 C	ON OFF Vertical		Quick Connect - 0.250" (6.3mm)	30000 Steps	Black	DPDT	30 mm	22.2 mm	20 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.36
		10	$ 3.01
		25	$ 2.86
		50	$ 2.72
		100	$ 2.59
		250	$ 2.48
		500	$ 2.27
		1000	$ 2.16

Description

General part information

R5ABLKRE Series

Rocker Switch DPDT 15A (AC) 125 V Panel Mount, Snap-In
