R5GBLKBLKEF0

Active

E-Switch

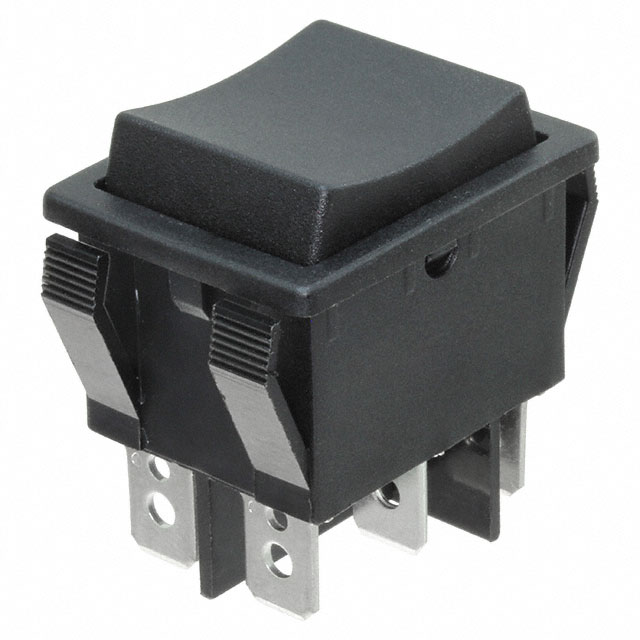

ROCKER; DP3T; POS: 3; (ON)-OFF-(ON); 10A/250VAC; BLACK; R5; -20÷55°C

Deep-Dive with AI

Search across all available documentation for this part.

R5GBLKBLKEF0

Active

E-Switch

ROCKER; DP3T; POS: 3; (ON)-OFF-(ON); 10A/250VAC; BLACK; R5; -20÷55°C

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R5GBLKBLKEF0

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Approval Agency	CSA, UL
Circuit	DPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	15 A
Electrical Life	10000 Cycles
Mechanical Life	30000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [x]	30 mm
Panel Cutout Dimensions [y]	22.2 mm
Switch Function	Mom-Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

R5ABLKRE Series

Part	Mounting Type	Electrical Life	Switch Function	Illumination Voltage (Nominal)	Actuator Type	Approval Agency	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Marking	Illumination Type, Color	Termination Style	Mechanical Life	Color - Actuator/Cap	Circuit	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Current Rating (Amps)
E-Switch R5BBLKGRNFF1	Panel Mount Snap-In	10000 Cycles	On-Off	125 VAC	Concave (Curved) - Illuminated	CSA UL	125 V	55 °C	-20 C	O -	Green Neon	Quick Connect - 0.250" (6.3mm)	30000 Steps	Green	DPST	30 mm	22.2 mm	20 A
E-Switch R5BBLKGRNAF1	Panel Mount Snap-In	10000 Cycles	On-Off	125 VAC	Concave (Curved) - Illuminated	CSA UL	125 V	55 °C	-20 C	Dot	Green Neon	Quick Connect - 0.250" (6.3mm)	30000 Steps	Green	DPST	30 mm	22.2 mm	20 A
E-Switch R5GBLKBLKEF0	Panel Mount Snap-In	10000 Cycles	Mom-Off-Mom		Concave (Curved)	CSA UL	125 V	55 °C	-20 C	No Marking		Quick Connect - 0.250" (6.3mm)	30000 Steps	Black	DPDT	30 mm	22.2 mm	15 A
E-Switch R5BBLKGRNEF1	Panel Mount Snap-In	10000 Cycles	On-Off	125 VAC	Concave (Curved) - Illuminated	CSA UL	125 V	55 °C	-20 C	No Marking	Green Neon	Quick Connect - 0.250" (6.3mm)	30000 Steps	Green	DPST	30 mm	22.2 mm	20 A
E-Switch R5ABLKREDFF0	Panel Mount Snap-In	10000 Cycles	On-Off		Concave (Curved)	CSA UL	125 V	55 °C	-20 C	O -		Quick Connect - 0.250" (6.3mm)	30000 Steps	Red	DPST	30 mm	22.2 mm	20 A
E-Switch R5CBLKBLKGF0	Panel Mount Snap-In	10000 Cycles	On-On		Concave (Curved)	CSA UL	125 V	55 °C	-20 C	O I		Quick Connect - 0.250" (6.3mm)	30000 Steps	Black	DPDT	30 mm	22.2 mm	20 A
E-Switch R5GBLKBLKHF0	Panel Mount Snap-In	10000 Cycles	Mom-Off-Mom		Concave (Curved)	CSA UL	125 V	55 °C	-20 C	Triangular Arrows with O		Quick Connect - 0.250" (6.3mm)	30000 Steps	Black	DPDT	30 mm	22.2 mm	15 A
E-Switch R5BBLKGRNGF1	Panel Mount Snap-In	10000 Cycles	On-Off	125 VAC	Concave (Curved) - Illuminated	CSA UL	125 V	55 °C	-20 C	O I	Green Neon	Quick Connect - 0.250" (6.3mm)	30000 Steps	Green	DPST	30 mm	22.2 mm	20 A
E-Switch R5BBLKGRNFF2	Panel Mount Snap-In	10000 Cycles	On-Off	250 VAC	Concave (Curved) - Illuminated	CSA UL	125 V	55 °C	-20 C	O -	Green Neon	Quick Connect - 0.250" (6.3mm)	30000 Steps	Green	DPST	30 mm	22.2 mm	20 A
E-Switch R5CBLKBLKIF0	Panel Mount Snap-In	10000 Cycles	On-On		Concave (Curved)	CSA UL	125 V	55 °C	-20 C	ON OFF Vertical		Quick Connect - 0.250" (6.3mm)	30000 Steps	Black	DPDT	30 mm	22.2 mm	20 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.36
		10	$ 2.12
		25	$ 2.01
		75	$ 1.91
		150	$ 1.82
		300	$ 1.74
		525	$ 1.73
TME	N/A	150	$ 6.28

Description

General part information

R5ABLKRE Series

Rocker Switch DPDT 15A (AC) 125 V Panel Mount, Snap-In

Documents

Technical documentation and resources

No documents available
