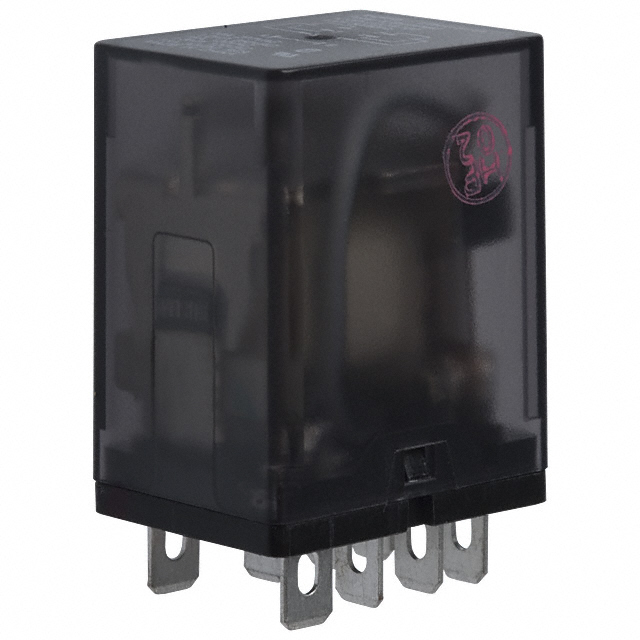

K10P-11D15-48
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPDT 15A 48V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
K10P-11D15-48
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPDT 15A 48V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | K10P-11D15-48 |
|---|---|
| Approval Agency | CSA, UR |
| Coil Current | 18.5 mA |
| Coil Insulation | Class B |
| Coil Resistance | 2.6 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 48 VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Rating (Current) | 15 A |
| Mounting Type | Socketable |
| Must Operate Voltage | 36 VDC |
| Must Release Voltage | 4.8 VDC |
| Operate Time | 13 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -45 °C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Switching Voltage | 120 VAC |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 38.34 | |
| 10 | $ 36.42 | |||
| 25 | $ 34.51 | |||
| 50 | $ 32.59 | |||
| 100 | $ 30.67 | |||
| 250 | $ 28.75 | |||
Description
General part information
K10P-11 Series
General Purpose Relay DPDT (2 Form C) 48VDC Coil Socketable
