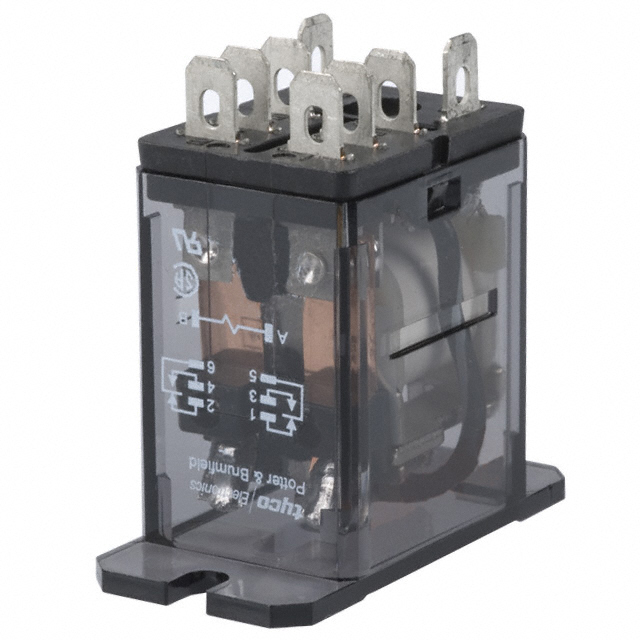

K10P-11DT5-24
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPDT 15A 24V
Deep-Dive with AI
Search across all available documentation for this part.
K10P-11DT5-24
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPDT 15A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | K10P-11DT5-24 |
|---|---|
| Approval Agency | CSA, UR |
| Coil Current | 37 mA |
| Coil Insulation | Class B |
| Coil Resistance | 650 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Rating (Current) | 15 A |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 13 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -45 °C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Switching Voltage | 120 VAC |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 41.31 | |
| 10 | $ 39.24 | |||
| 25 | $ 37.18 | |||
| 50 | $ 35.11 | |||
| 100 | $ 33.05 | |||
| 250 | $ 30.98 | |||
Description
General part information
K10P-11 Series
General Purpose Relay DPDT (2 Form C) 24VDC Coil Chassis Mount
