97602.6

Active

Pflitsch

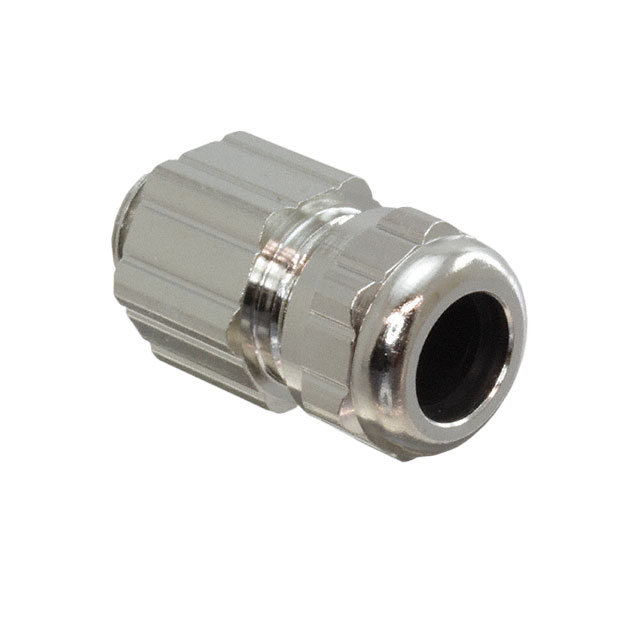

CABLE GLND 5.59-8.89MM M12 BRASS

Search across all available documentation for this part.

Active

Pflitsch

CABLE GLND 5.59-8.89MM M12 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	97602.6

Color	Silver
Includes	Sealing Ring, Strain Relief
Ingress Protection	IP54 - Dust Protected, Water Resistant; NEMA 13
Material	Brass, Nickel Plated
Operating Temperature [Max]	300 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max]	8.89 mm
Outside Cable Diameter (Max) [Max]	0.35 "
Outside Cable Diameter (Min) [Min] [diameter]	5.59 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.22 "
Panel Hole Size	11.9 mm
Panel Hole Size	0.47 in
Thread Size	M12x1.5
Type	Cable Gland

Part	Material	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Color	Type	Thread Size	Panel Hole Size	Panel Hole Size	Includes	For Use With/Related Products	Accessory Type	Features
Pflitsch 97602.6	Brass Nickel Plated	8.89 mm	0.35 "	5.59 mm	0.22 "	-40 °C	300 °C	IP54 - Dust Protected Water Resistant; NEMA 13	Silver	Cable Gland	M12x1.5	11.9 mm	0.47 in	Sealing Ring Strain Relief
Pflitsch 97602.9	Brass Nickel Plated														Cable Glands	Locknut	M18 Thread

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated M12x1.5 Silver
