97602.9

Active

Pflitsch

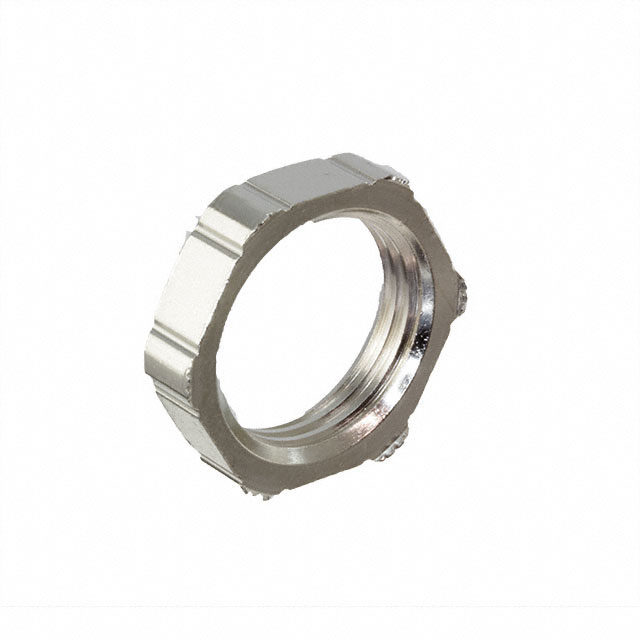

M18X1.5 NPB LOCK NUT EMI/RFI

Search across all available documentation for this part.

Active

Pflitsch

M18X1.5 NPB LOCK NUT EMI/RFI

Technical Specifications

Parameters and characteristics for this part

Specification	97602.9

Accessory Type	Locknut
Features	M18 Thread
For Use With/Related Products	Cable Glands
Material	Brass, Nickel Plated

Part	Material	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Color	Type	Thread Size	Panel Hole Size	Panel Hole Size	Includes	For Use With/Related Products	Accessory Type	Features
Pflitsch 97602.6	Brass Nickel Plated	8.89 mm	0.35 "	5.59 mm	0.22 "	-40 °C	300 °C	IP54 - Dust Protected Water Resistant; NEMA 13	Silver	Cable Gland	M12x1.5	11.9 mm	0.47 in	Sealing Ring Strain Relief
Pflitsch 97602.9	Brass Nickel Plated														Cable Glands	Locknut	M18 Thread

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Locknut For Cable Glands

Technical documentation and resources

No documents available
