RECTANGULAR CONNECTOR, DATAMATE J-TEK M80 SERIES, 10 CONTACTS, RECEPTACLE, 2 MM, CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80, M83 Series Spec Sheet Datasheet +5

M80-4611042

Active

Harwin Inc.

RECTANGULAR CONNECTOR, DATAMATE J-TEK M80 SERIES, 10 CONTACTS, RECEPTACLE, 2 MM, CRIMP

Deep-Dive with AI

DocumentsM80, M83 Series Spec Sheet Datasheet +5

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-4611042

Cable Termination	Crimp
Color	Black
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.3 Ám
Contact Finish Thickness	11.8 Áin
Contact Type	Female Socket
Features	Jackscrews
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	24 AWG
Wire Type	Discrete

M80-461 Series

Part	Color	Cable Termination	Wire Gauge [Min]	Wire Gauge [Max]	Number of Positions	Row Spacing	Row Spacing	Wire Type	Contact Finish	Features	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Pitch [x]	Pitch [x]	Contact Type	Number of Rows	Number of Positions
Harwin Inc. M80-4612642	Black	Crimp	24 AWG	28 AWG	26	2 mm	0.079 in	Discrete	Gold	Jackscrews	Receptacle	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	0.079 in	2 mm	Female Socket	2
Harwin Inc. M80-4610442	Black	Crimp	24 AWG	28 AWG	4	2 mm	0.079 in	Discrete	Gold	Jackscrews	Receptacle	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	0.079 in	2 mm	Female Socket	2
Harwin Inc. M80-4615042	Black	Crimp	24 AWG	28 AWG	50	2 mm	0.079 in	Discrete	Gold	Jackscrews	Receptacle	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	0.079 in	2 mm	Female Socket	2
Harwin Inc. M80-4612405	Black	Crimp	24 AWG	28 AWG	24	2 mm	0.079 in	Discrete	Gold	Jackscrews	Receptacle	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	0.079 in	2 mm	Female Socket	2
Harwin Inc. M80-4611042	Black	Crimp	24 AWG	28 AWG	10	2 mm	0.079 in	Discrete	Gold	Jackscrews	Receptacle	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	0.079 in	2 mm	Female Socket	2
Harwin Inc. M80-4611842	Black	Crimp	24 AWG	28 AWG	18	2 mm	0.079 in	Discrete	Gold	Jackscrews	Receptacle	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	0.079 in	2 mm	Female Socket	2
Harwin Inc. M80-4612442	Black	Crimp	24 AWG	28 AWG	24	2 mm	0.079 in	Discrete	Gold	Jackscrews	Receptacle	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	0.079 in	2 mm	Female Socket	2
Harwin Inc. M80-4615005	Black	Crimp	24 AWG	28 AWG	50	2 mm	0.079 in	Discrete	Gold	Jackscrews	Receptacle	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	0.079 in	2 mm	Female Socket	2
Harwin Inc. M80-4611605	Black	Crimp	24 AWG	28 AWG		2 mm	0.079 in	Discrete	Gold	Jackscrews	Receptacle	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	0.079 in	2 mm	Female Socket	2	16
Harwin Inc. M80-4611005	Black	Crimp	24 AWG	28 AWG	10	2 mm	0.079 in	Discrete	Gold	Jackscrews	Receptacle	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	0.079 in	2 mm	Female Socket	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.86
		10	$ 16.34
		25	$ 15.49
		50	$ 15.26
		100	$ 13.47
		250	$ 12.57
		500	$ 12.30
Newark	Each	1	$ 14.04
		5	$ 13.64
		10	$ 13.26
		25	$ 12.86
		50	$ 12.27
		100	$ 11.68
		250	$ 10.51

Description

General part information

M80-461 Series

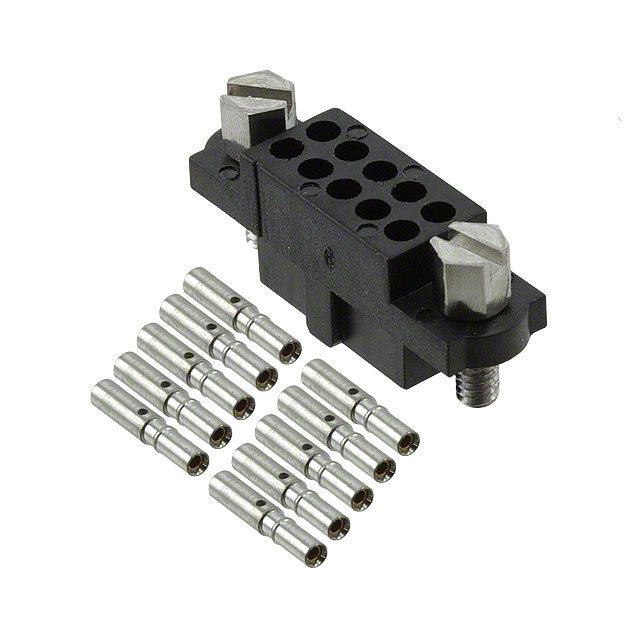

The M80-4611042 is a 10-contact 2mm female Datamate J-Tek DIL Cable Connector Kit with housing (with hexagonal slotted jackscrews) and contacts loose. Small bore is suitable for 24 to 28AWG cable (Ø1.1mm maximum insulation), M80-0130001 spare contacts. 2.00mm pitch high-reliability Datamate connector system. Housing is made of black UL94V-0 PPS with gold plated beryllium copper contact clip/brass shell contact base, 100% tin over nickel plated termination. The M80 series receptacle has straight connector orientation, cable (crimp) connection type, M2 thread size. The connector is intended for use as a low voltage connector in high packing density electronic equipment. The connector is polarised to prevent mismatching and can be produced with a latching feature jackscrew (J-Tek) format, with or without board mounting.
