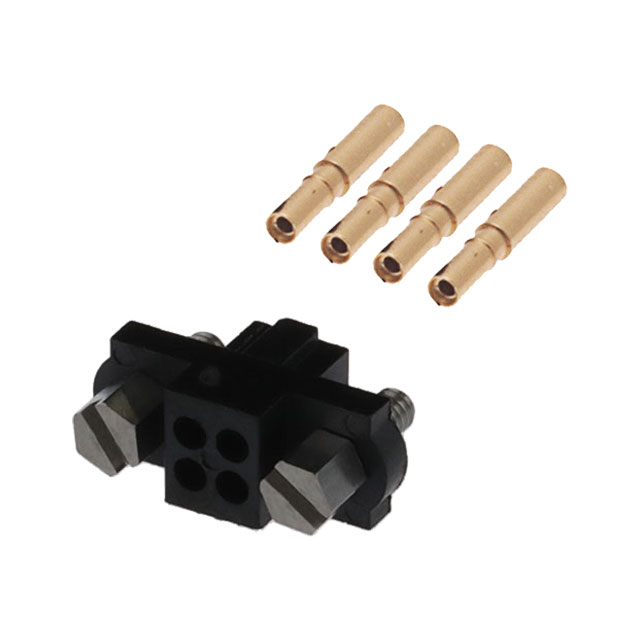

M80-4610442

Active

Harwin Inc.

BOARD CONNECTOR, 4 CONTACT(S), 2 ROW(S), FEMALE, 0.079 INCH PITCH, CRIMP TERMINAL, LOCKING, BLACK INSULATOR, PLUG, LEAD FREE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80, M83 Series Spec Sheet M80-001 +3

M80-4610442

Active

Harwin Inc.

BOARD CONNECTOR, 4 CONTACT(S), 2 ROW(S), FEMALE, 0.079 INCH PITCH, CRIMP TERMINAL, LOCKING, BLACK INSULATOR, PLUG, LEAD FREE

Deep-Dive with AI

DocumentsM80, M83 Series Spec Sheet M80-001 +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-4610442

Cable Termination	Crimp
Color	Black
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.3 Ám
Contact Finish Thickness	11.8 Áin
Contact Type	Female Socket
Features	Jackscrews
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	24 AWG
Wire Type	Discrete

M80-461 Series

Part	Color	Cable Termination	Wire Gauge [Min]	Wire Gauge [Max]	Number of Positions	Row Spacing	Row Spacing	Wire Type	Contact Finish	Features	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Pitch [x]	Pitch [x]	Contact Type	Number of Rows	Number of Positions
Harwin Inc. M80-4612642	Black	Crimp	24 AWG	28 AWG	26	2 mm	0.079 in	Discrete	Gold	Jackscrews	Receptacle	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	0.079 in	2 mm	Female Socket	2
Harwin Inc. M80-4610442	Black	Crimp	24 AWG	28 AWG	4	2 mm	0.079 in	Discrete	Gold	Jackscrews	Receptacle	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	0.079 in	2 mm	Female Socket	2
Harwin Inc. M80-4615042	Black	Crimp	24 AWG	28 AWG	50	2 mm	0.079 in	Discrete	Gold	Jackscrews	Receptacle	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	0.079 in	2 mm	Female Socket	2
Harwin Inc. M80-4612405	Black	Crimp	24 AWG	28 AWG	24	2 mm	0.079 in	Discrete	Gold	Jackscrews	Receptacle	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	0.079 in	2 mm	Female Socket	2
Harwin Inc. M80-4611042	Black	Crimp	24 AWG	28 AWG	10	2 mm	0.079 in	Discrete	Gold	Jackscrews	Receptacle	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	0.079 in	2 mm	Female Socket	2
Harwin Inc. M80-4611842	Black	Crimp	24 AWG	28 AWG	18	2 mm	0.079 in	Discrete	Gold	Jackscrews	Receptacle	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	0.079 in	2 mm	Female Socket	2
Harwin Inc. M80-4612442	Black	Crimp	24 AWG	28 AWG	24	2 mm	0.079 in	Discrete	Gold	Jackscrews	Receptacle	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	0.079 in	2 mm	Female Socket	2
Harwin Inc. M80-4615005	Black	Crimp	24 AWG	28 AWG	50	2 mm	0.079 in	Discrete	Gold	Jackscrews	Receptacle	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	0.079 in	2 mm	Female Socket	2
Harwin Inc. M80-4611605	Black	Crimp	24 AWG	28 AWG		2 mm	0.079 in	Discrete	Gold	Jackscrews	Receptacle	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	0.079 in	2 mm	Female Socket	2	16
Harwin Inc. M80-4611005	Black	Crimp	24 AWG	28 AWG	10	2 mm	0.079 in	Discrete	Gold	Jackscrews	Receptacle	0.3 Ám	11.8 Áin	Free Hanging (In-Line)	0.079 in	2 mm	Female Socket	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.59
		10	$ 14.70
		25	$ 14.14
		50	$ 13.57
		100	$ 12.82
		250	$ 11.69
		500	$ 10.93
Newark	Each	1	$ 15.29
		10	$ 12.46
		25	$ 11.49
		50	$ 10.80
		100	$ 10.16
		250	$ 9.19
		500	$ 8.17

Description

General part information

M80-461 Series

4 Position Rectangular Receptacle Connector Crimp Gold 24-28 AWG

Documents

Technical documentation and resources

M80, M83 Series Spec Sheet

Datasheet

M80-001

Datasheet

M80-0110001

Manufacturer Catalogue EN

Datasheet
