L17H2110131
ActiveAmphenol ICC (Commercial Products)

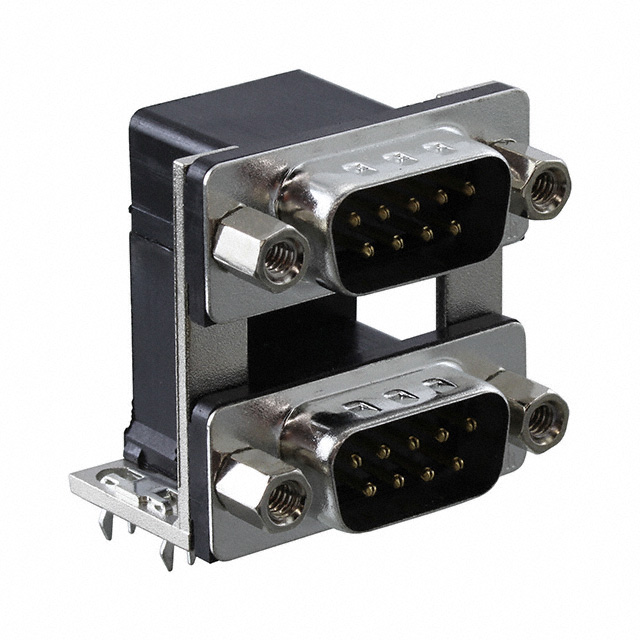

CONN D-SUB PLUG 9POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
L17H2110131
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB PLUG 9POS R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | L17H2110131 |
|---|---|
| Backset Spacing | 8.08 mm |
| Backset Spacing | 0.318 " |
| Color | Black |
| Connector Style | D-Sub - Stacked |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Form | Stamped |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Thermoplastic, Glass Filled |
| Features | Board Lock, Shielded, Grounding Indents |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout | 1 (DE, E) |
| Termination | Solder |
| Voltage Rating | 250 VDC |
L17H21 Series
| Part | Material Flammability Rating | Contact Form | Backset Spacing | Backset Spacing | Contact Material | Dielectric Material | Termination | Shell Size, Connector Layout | Number of Rows | Number of Positions | Mounting Type | Connector Type | Contact Type | Color | Contact Finish Thickness | Contact Finish Thickness | Features | Current Rating (Amps) | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature | Contact Finish | Connector Style | Contact Finish Thickness | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (Commercial Products) | UL94 V-0 | Stamped | 8.08 mm | 0.318 " | Brass | Thermoplastic Glass Filled | Solder | 1 (DE E) | 2 | 9 | Through Hole Right Angle | Male Pins Plug | Signal | Black | 0.76 Ám | 30 Áin | Board Lock Grounding Indents Shielded | 3 A | 250 VDC | 105 ░C | -55 °C | Female Screwlock (4-40) Mating Side | Gold | D-Sub - Stacked | |||||
Amphenol ICC (Commercial Products) | UL94 V-0 | Stamped | 8.08 mm | 0.318 " | Brass | Thermoplastic Glass Filled | Solder | 2 | 9 15 | Through Hole Right Angle | Plug Male Pins Receptacle Female Sockets | Signal | Black | Board Lock Grounding Indents Shielded | 3 A | 250 VDC | 105 ░C | -55 °C | Female Screwlock (4-40) Mating Side | Gold | D-Sub - Stacked | Flash | 1 (DE E) | 2 (DA A) | |||||
Amphenol ICC (Commercial Products) | UL94 V-0 | Stamped | 8.08 mm | 0.318 " | Brass | Thermoplastic Glass Filled | Solder | 1 (DE E) | 2 | 9 | Through Hole Right Angle | Male Pins Plug | Signal | Black | 0.76 Ám | 30 Áin | Board Lock Grounding Indents Shielded | 3 A | 250 VDC | 105 ░C | -55 °C | Housing/Shell (4-40) | Gold | D-Sub - Stacked | |||||
Amphenol ICC (Commercial Products) | UL94 V-0 | Stamped | 8.08 mm | 0.318 " | Brass | Thermoplastic Glass Filled | Solder | 1 (DE E) | 2 | 9 | Through Hole Right Angle | Male Pins Plug | Signal | Black | Board Lock Grounding Indents Shielded | 3 A | 250 VDC | 105 ░C | -55 °C | Female Screwlock (4-40) Mating Side | Gold | D-Sub - Stacked | Flash | ||||||
Amphenol ICC (Commercial Products) | UL94 V-0 | Stamped | 8.89 mm | 0.35 in | Brass Phosphor Bronze | Thermoplastic Glass Filled | Solder | High Density | 2 3 | 9 15 | Through Hole Right Angle | Plug Male Pins Receptacle Female Sockets | Signal | Board Lock Grounding Indents Shielded | 3 A | 250 VDC | 125 °C | -55 °C | 4-40 Board Side | Gold | D-Sub - Stacked | Flash | 1 | 1 | |||||
Amphenol ICC (Commercial Products) | UL94 V-0 | Stamped | 8.08 mm | 0.318 " | Brass | Thermoplastic Glass Filled | Solder | 1 (DE E) | 2 | 9 | Through Hole Right Angle | Plug Male Pins Receptacle Female Sockets | Signal | Black | 0.76 Ám | 30 Áin | Board Lock Grounding Indents Shielded | 3 A | 250 VDC | 105 ░C | -55 °C | Housing/Shell (4-40) | Gold | D-Sub - Stacked | |||||
Amphenol ICC (Commercial Products) | UL94 V-0 | Stamped | 8.08 mm | 0.318 " | Brass | Thermoplastic Glass Filled | Solder | 1 (DE E) | 2 | 9 | Through Hole Right Angle | Plug Male Pins Receptacle Female Sockets | Signal | Black | Board Lock Grounding Indents Shielded | 3 A | 250 VDC | 105 ░C | -55 °C | Housing/Shell (4-40) | Gold | D-Sub - Stacked | Flash | ||||||
Amphenol ICC (Commercial Products) | UL94 V-0 | Stamped | 8.08 mm | 0.318 " | Brass | Thermoplastic Glass Filled | Solder | 1 (DE E) | 2 | 9 | Through Hole Right Angle | Male Pins Plug | Signal | Black | Board Lock Grounding Indents Shielded | 3 A | 250 VDC | 105 ░C | -55 °C | Female Screwlock (4-40) Mating Side | Gold | D-Sub - Stacked | Flash | ||||||
Amphenol ICC (Commercial Products) | UL94 V-0 | Stamped | 8.08 mm | 0.318 " | Brass | Thermoplastic Glass Filled | Solder | 1 (DE E) | 2 | 9 | Through Hole Right Angle | Male Pins Plug | Signal | Black | 0.38 µm | 15 µin | Board Lock Grounding Indents Shielded | 3 A | 250 VDC | 105 ░C | -55 °C | Female Screwlock (4-40) Mating Side | Gold | D-Sub - Stacked | |||||
Amphenol ICC (Commercial Products) | UL94 V-0 | Stamped | 8.08 mm | 0.318 " | Brass | Thermoplastic Glass Filled | Solder | 1 (DE E) | 2 | 9 | Through Hole Right Angle | Male Pins Plug | Signal | Black | Board Lock Grounding Indents Shielded | 3 A | 250 VDC | 105 ░C | -55 °C | Housing/Shell (4-40) | Gold | D-Sub - Stacked | Flash |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.08 | |
| 10 | $ 4.65 | |||
| 25 | $ 4.20 | |||
| 40 | $ 3.98 | |||
| 80 | $ 3.69 | |||
| 230 | $ 3.30 | |||
| 440 | $ 3.09 | |||
| 945 | $ 2.87 | |||
| 2400 | $ 2.62 | |||
Description
General part information
L17H21 Series
9, 9 Position D-Sub - Stacked Plug, Male Pins Connector
