L17H2110127

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 9POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L17H2110127

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 9POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L17H2110127

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Board Lock, Shielded, Grounding Indents
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	1 (DE, E)
Termination	Solder
Voltage Rating	250 VDC

L17H21 Series

Part	Material Flammability Rating	Contact Form	Backset Spacing	Backset Spacing	Contact Material	Dielectric Material	Termination	Shell Size, Connector Layout	Number of Rows	Number of Positions	Mounting Type	Connector Type	Contact Type	Color	Contact Finish Thickness	Contact Finish Thickness	Features	Current Rating (Amps)	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature	Contact Finish	Connector Style	Contact Finish Thickness	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
Amphenol ICC (Commercial Products) L17H2112127	UL94 V-0	Stamped	8.08 mm	0.318 "	Brass	Thermoplastic Glass Filled	Solder	1 (DE E)	2	9	Through Hole Right Angle	Male Pins Plug	Signal	Black	0.76 Ám	30 Áin	Board Lock Grounding Indents Shielded	3 A	250 VDC	105 ░C	-55 °C	Female Screwlock (4-40) Mating Side	Gold	D-Sub - Stacked
Amphenol ICC (Commercial Products) L17H2140131	UL94 V-0	Stamped	8.08 mm	0.318 "	Brass	Thermoplastic Glass Filled	Solder		2	9 15	Through Hole Right Angle	Plug Male Pins Receptacle Female Sockets	Signal	Black			Board Lock Grounding Indents Shielded	3 A	250 VDC	105 ░C	-55 °C	Female Screwlock (4-40) Mating Side	Gold	D-Sub - Stacked	Flash	1 (DE E)	2 (DA A)
Amphenol ICC (Commercial Products) L17H2112130	UL94 V-0	Stamped	8.08 mm	0.318 "	Brass	Thermoplastic Glass Filled	Solder	1 (DE E)	2	9	Through Hole Right Angle	Male Pins Plug	Signal	Black	0.76 Ám	30 Áin	Board Lock Grounding Indents Shielded	3 A	250 VDC	105 ░C	-55 °C	Housing/Shell (4-40)	Gold	D-Sub - Stacked
Amphenol ICC (Commercial Products) L17H2110127	UL94 V-0	Stamped	8.08 mm	0.318 "	Brass	Thermoplastic Glass Filled	Solder	1 (DE E)	2	9	Through Hole Right Angle	Male Pins Plug	Signal	Black			Board Lock Grounding Indents Shielded	3 A	250 VDC	105 ░C	-55 °C	Female Screwlock (4-40) Mating Side	Gold	D-Sub - Stacked	Flash
Amphenol ICC (Commercial Products) L17H2170130889	UL94 V-0	Stamped	8.89 mm	0.35 in	Brass Phosphor Bronze	Thermoplastic Glass Filled	Solder	High Density	2 3	9 15	Through Hole Right Angle	Plug Male Pins Receptacle Female Sockets	Signal				Board Lock Grounding Indents Shielded	3 A	250 VDC	125 °C	-55 °C	4-40 Board Side	Gold	D-Sub - Stacked	Flash			1	1
Amphenol ICC (Commercial Products) L17H2122130	UL94 V-0	Stamped	8.08 mm	0.318 "	Brass	Thermoplastic Glass Filled	Solder	1 (DE E)	2	9	Through Hole Right Angle	Plug Male Pins Receptacle Female Sockets	Signal	Black	0.76 Ám	30 Áin	Board Lock Grounding Indents Shielded	3 A	250 VDC	105 ░C	-55 °C	Housing/Shell (4-40)	Gold	D-Sub - Stacked
Amphenol ICC (Commercial Products) L17H2120120	UL94 V-0	Stamped	8.08 mm	0.318 "	Brass	Thermoplastic Glass Filled	Solder	1 (DE E)	2	9	Through Hole Right Angle	Plug Male Pins Receptacle Female Sockets	Signal	Black			Board Lock Grounding Indents Shielded	3 A	250 VDC	105 ░C	-55 °C	Housing/Shell (4-40)	Gold	D-Sub - Stacked	Flash
Amphenol ICC (Commercial Products) L17H2110131	UL94 V-0	Stamped	8.08 mm	0.318 "	Brass	Thermoplastic Glass Filled	Solder	1 (DE E)	2	9	Through Hole Right Angle	Male Pins Plug	Signal	Black			Board Lock Grounding Indents Shielded	3 A	250 VDC	105 ░C	-55 °C	Female Screwlock (4-40) Mating Side	Gold	D-Sub - Stacked	Flash
Amphenol ICC (Commercial Products) L17H2111131	UL94 V-0	Stamped	8.08 mm	0.318 "	Brass	Thermoplastic Glass Filled	Solder	1 (DE E)	2	9	Through Hole Right Angle	Male Pins Plug	Signal	Black	0.38 µm	15 µin	Board Lock Grounding Indents Shielded	3 A	250 VDC	105 ░C	-55 °C	Female Screwlock (4-40) Mating Side	Gold	D-Sub - Stacked
Amphenol ICC (Commercial Products) L17H2110120	UL94 V-0	Stamped	8.08 mm	0.318 "	Brass	Thermoplastic Glass Filled	Solder	1 (DE E)	2	9	Through Hole Right Angle	Male Pins Plug	Signal	Black			Board Lock Grounding Indents Shielded	3 A	250 VDC	105 ░C	-55 °C	Housing/Shell (4-40)	Gold	D-Sub - Stacked	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.70
		10	$ 3.36
		25	$ 3.18
		45	$ 3.10
		90	$ 2.96
		270	$ 2.60

Description

General part information

L17H21 Series

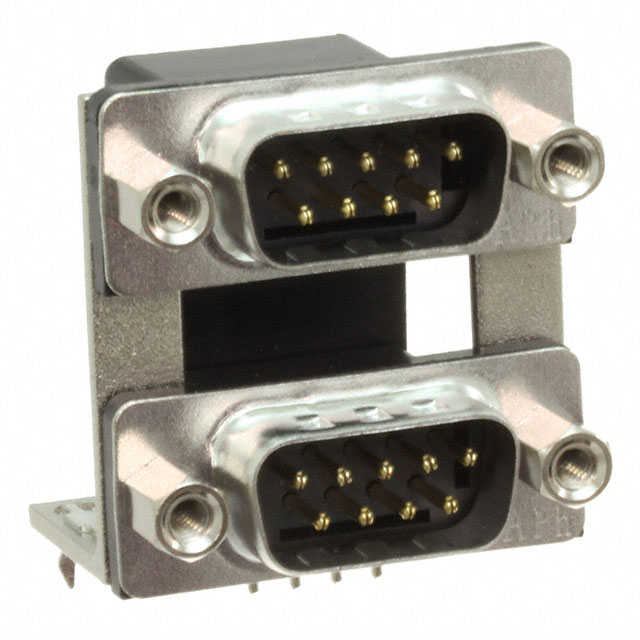

9, 9 Position D-Sub - Stacked Plug, Male Pins Connector
