280-601

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 4 POSITIONS, 28 AWG, 12 AWG, 2.5 MM², CLAMP, 20 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

280-601

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 4 POSITIONS, 28 AWG, 12 AWG, 2.5 MM², CLAMP, 20 A

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	280-601

Color	Gray
Current - IEC	24 A
Material - Insulation	Polyamide (PA66), Nylon 6/6
Number of Levels	1
Number of Positions	2
Stripping Length [Max] [x]	9 mm
Stripping Length [Min] [x]	8 mm
Terminal - Width	5 mm
Termination Style	Push In, Spring
Type	Feed Through
Voltage - IEC	800 V
Wire Gauge or Range - AWG [Max]	28 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Gauge or Range - mm² [Max]	2.5 mm²
Wire Gauge or Range - mm² [Min]	0.08 mm²

280 Series

Part	Material - Insulation	Stripping Length [Min] [x]	Stripping Length [Max] [x]	Terminal - Width	Number of Levels	Color	Current - IEC	Voltage - IEC	Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Termination Style	Number of Positions	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	For Use With/Related Products
WAGO Corporation 280-646	Polyamide (PA66) Nylon 6/6	8 mm	9 mm	5 mm	1	Gray	24 A	800 V	Feed Through	28 AWG	12 AWG	Push In Spring	4	0.08 mm²	2.5 mm²
WAGO Corporation 280-633	Polyamide (PA66) Nylon 6/6	8 mm	9 mm	5 mm	1	Gray	20 A	800 V	Feed Through	28 AWG	12 AWG	Push In Spring	4	0.08 mm²	2.5 mm²
WAGO Corporation 280-607	Polyamide (PA66) Nylon 6/6	8 mm	9 mm	5 mm	1	Green Yellow			Ground Earth	28 AWG	12 AWG	Push In Spring	2	0.08 mm²	2.5 mm²
WAGO Corporation 280-601	Polyamide (PA66) Nylon 6/6	8 mm	9 mm	5 mm	1	Gray	24 A	800 V	Feed Through	28 AWG	12 AWG	Push In Spring	2	0.08 mm²	2.5 mm²
WAGO Corporation 280-331									End Plate							Terminal Blocks
WAGO Corporation 280-653	Polyamide (PA66) Nylon 6/6	8 mm	9 mm	5 mm	1	Red	24 A	800 V	Feed Through	28 AWG	12 AWG	Push In Spring		0.08 mm²	2.5 mm²
WAGO Corporation 280-684	Polyamide (PA66) Nylon 6/6	8 mm	9 mm	5 mm	1	Blue	24 A	800 V	Feed Through	28 AWG	12 AWG	Push In Spring		0.08 mm²	2.5 mm²
WAGO Corporation 280-326									End Plate							Terminal Blocks
WAGO Corporation 280-651	Polyamide (PA66) Nylon 6/6	8 mm	9 mm	5 mm	1	Blue	24 A	800 V	Feed Through	28 AWG	12 AWG	Push In Spring
WAGO Corporation 280-641	Polyamide (PA66) Nylon 6/6	8 mm	9 mm	5 mm	1	Gray	24 A	800 V	Feed Through	28 AWG	12 AWG	Push In Spring

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.80
		10	$ 2.89
		25	$ 2.71
		50	$ 2.41
		100	$ 2.36
		250	$ 2.17
		500	$ 1.96
		1000	$ 1.74
		5000	$ 1.64
Newark	Each	1	$ 3.62
		25	$ 3.40
		100	$ 3.20
		250	$ 3.01
		500	$ 2.79

Description

General part information

280 Series

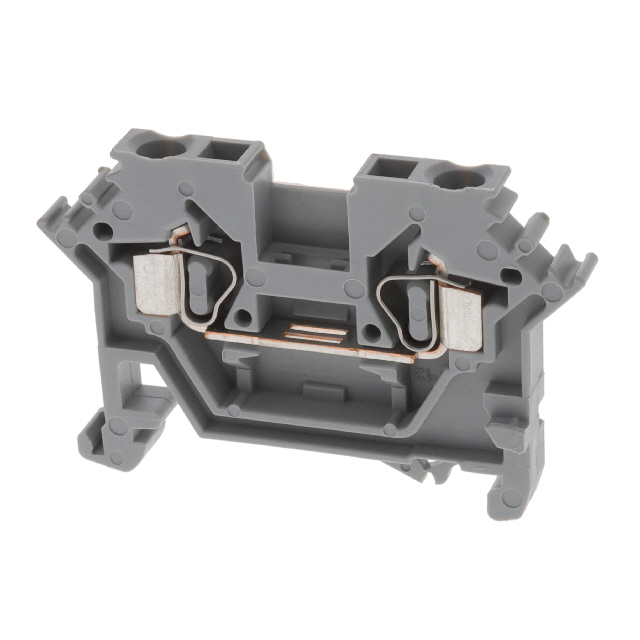

The 280-601 is a 2-conductor gray Through Terminal Block with side marking and front-entry wiring. This terminal block has polyamide 6.6 insulator and suitable for DIN 35 rail mounting. It accepts 28 to 12AWG wire size.

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
