280-641

Active

DIN RAIL MOUNT TERMINAL BLOCK, 3 POSITIONS, 28 AWG, 12 AWG, 2.5 MM², CLAMP, 24 A

Active

DIN RAIL MOUNT TERMINAL BLOCK, 3 POSITIONS, 28 AWG, 12 AWG, 2.5 MM², CLAMP, 24 A

Description

General part information

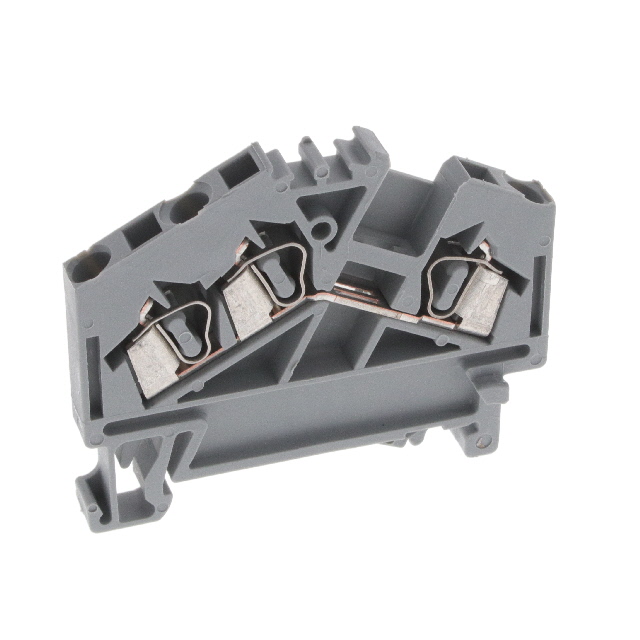

The 280-641 from Wago is a 3 conductor through DIN rail terminal block. This terminal block is suitable for wire size ranging from 28AWG to 12AWG.

Parameters and characteristics for this part

Specification	280-641

Color	Gray
Current - IEC	24 A
Material - Insulation	Polyamide, PA66, Nylon 6/6
Number of Levels	1
Number of Positions	3
Stripping Length (Max)	9 mm
Stripping Length (Min)	8 mm
Terminal Width	5 mm
Termination Style	Push In, Spring
Type	Feed Through
Voltage - IEC	800 V
Wire Gauge or Range - AWG (Max)	28 AWG
Wire Gauge or Range - AWG (Min)	12 AWG
Wire Gauge or Range - mm² (Maximum)	2.5 mm²
Wire Gauge or Range - mm² (Minimum)	0.08 mm²

Part	Stripping Length (Max)	Stripping Length (Min)	Material - Insulation	Number of Levels	Terminal Width	Current - IEC	Color	Type	Termination Style	Number of Positions	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - mm² (Maximum)	Voltage - IEC	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	For Use With/Related Products
WAGO Corporation 280-646	9 mm	8 mm	Nylon 6/6 PA66 Polyamide	1	5 mm	24 A	Gray	Feed Through	Push In Spring	4	0.08 mm²	2.5 mm²	800 V	28 AWG	12 AWG
WAGO Corporation 280-633	9 mm	8 mm	Nylon 6/6 PA66 Polyamide	1	5 mm	20 A	Gray	Feed Through	Push In Spring	4	0.08 mm²	2.5 mm²	800 V	28 AWG	12 AWG
WAGO Corporation 280-607	9 mm	8 mm	Nylon 6/6 PA66 Polyamide	1	5 mm		Green Yellow	Earth Ground	Push In Spring	2	0.08 mm²	2.5 mm²		28 AWG	12 AWG
WAGO Corporation 280-601	9 mm	8 mm	Nylon 6/6 PA66 Polyamide	1	5 mm	24 A	Gray	Feed Through	Push In Spring	2	0.08 mm²	2.5 mm²	800 V	28 AWG	12 AWG
WAGO Corporation 280-331							Orange	End Plate								Terminal Blocks
WAGO Corporation 280-653	9 mm	8 mm	Nylon 6/6 PA66 Polyamide	1	5 mm	24 A	Red	Feed Through	Push In Spring	3	0.08 mm²	2.5 mm²	800 V	28 AWG	12 AWG
WAGO Corporation 280-684	9 mm	8 mm	Nylon 6/6 PA66 Polyamide	1	5 mm	24 A	Blue	Feed Through	Push In Spring	3	0.08 mm²	2.5 mm²	800 V	28 AWG	12 AWG
WAGO Corporation 280-326							Orange	End Plate								Terminal Blocks
WAGO Corporation 280-651	9 mm	8 mm	Nylon 6/6 PA66 Polyamide	1	5 mm	24 A	Blue	Feed Through	Push In Spring	3	0.08 mm²	2.5 mm²	800 V	28 AWG	12 AWG
WAGO Corporation 280-641	9 mm	8 mm	Nylon 6/6 PA66 Polyamide	1	5 mm	24 A	Gray	Feed Through	Push In Spring	3	0.08 mm²	2.5 mm²	800 V	28 AWG	12 AWG
